Ultra Slim MIMO/Dual LTE Antenna For Digital Sign, Kiosk, Enclosure or Vehicle | RFIND-44-3-SS-B

  • $110.00
    Unit price per

RFIND-44-3-SS-B


78 Can ship immediately
Lead time for qty above 78:  Ships in 8-10 Weeks

Shipping calculated at checkout.

Ultra Slim MIMO/Dual LTE Antenna For Digital Sign, Kiosk, Enclosure or Vehicle | RFIND-44-3-SS-B

More InfoDocumentsSpecifications Reviews

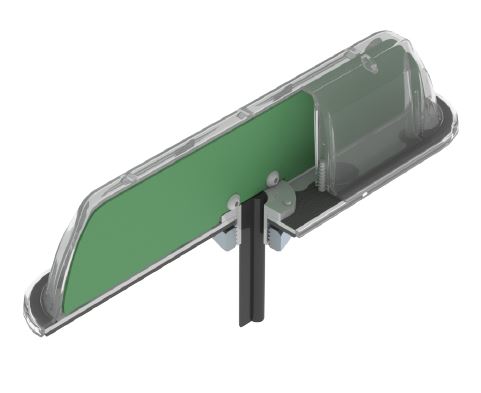

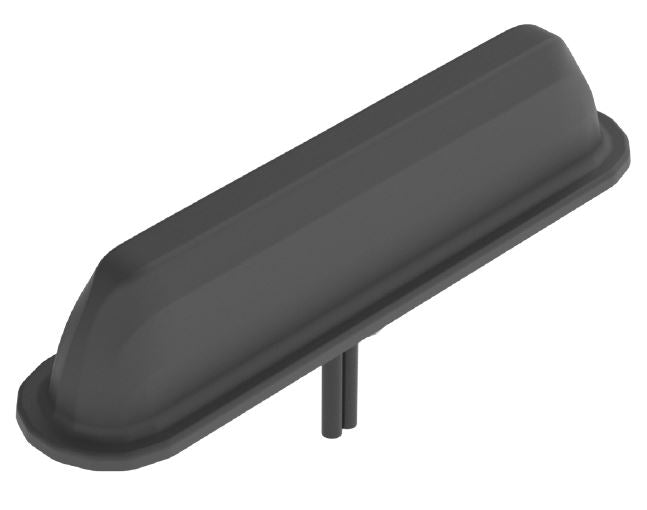

The RFMAX # RFIND-44-3-SS-B is a one of a kind ULTRA SLIM, low profile, purpose built antenna with a rugged low profile molded radome and tamper proof features required for outdoor mounting in the public space. This model is only 1.6 inches deep, 7 inches wide and 1.3 inches tall.  This is PERFECT for use when space and surface mounting area is at a premium.

A 3M VHB gasket completely seals the mounting location from water ingress, 5/8" bulkhead stud mount provides solid vandal proofing. A Porex IP rated PTFE vent equalizes pressure, while protecting the housing from water and dust ingress. The narrow profile is ideal for mounting between roof ribs on vehicles or on thin kiosks, digital sign housings and displays.

  • Compatible with Verizon, AT&T, Sprint, T-Mobile, Telus & Rogers
  • Compatible with RV50, RV55, IBR200, IBR600, WR11, WR21, WR31, MAXBR1
  • Low Profile: Only 1.5”/38mm mounted height
  • Rugged construction for fixed and mobile applications
  • 5/8 Threaded Stud + Automotive grade adhesive gasket mounting
  • Fasteners hidden for tamper proof clean installation
  • Assembled and Molded in the USA!


More Information

The Ultra Slim Antenna is a 4G/LTE MIMO antenna designed for Cellular Wireless gateways and M2M/Industrial IOT. The RFIND-44-3-SS-B is purpose built with a rugged low profile molded radome and tamper proof features required for outdoor mounting in the public space. A 3M VHB gasket seals the mounting location from water ingress, bulkhead stud mount provides solid vandal proof mount. A Porex IP rated PTFE vent equalizes pressure, while protecting the housing from water and dust ingress. The narrow profile is ideal for mounting on thin sign housing and displays.

  • Low Profile: 1.5”/38mm mounted height
  • Rugged construction for fixed and mobile applications
  • Threaded Stud + Automotive grade gasket mounting
  • Fasteners hidden for tamper proof clean installation
  • Assembled in America

Documents


Specifications

SKU RFIND443SSB
Manufacturer Part Number RFIND-44-3-SS-B
Manufacturer RFMAX
Antenna Category 4G/LTE (698-2700 MHz)
Working Frequency 690-960 MHz
Gain 1.5 dBi
Working Frequency 2 1710-2170 MHz
Working Frequency 3 2300-2700MHz
Antenna Style "Slim Fin" Multi-Element Antenna
Bands Dual
SISO or MIMO MIMO
Impedance 50 Ohms
Height/Length (inches) 1.5 / 7.12
Width (inches) 1.62
Operating Temp (celsius) -40 to 65
Mount Style Direct
Color Black
Number of Cables 2
Cable Length (inches) 36
Connector 1 SMA-Male
Connector 2 SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Product Condition New
