12x12 inch IP-67 Circularly Polarized RFID Antenna for UHF FCC | R9029-WHP-RTF
R9029-WHP-RTF
Shipping calculated at checkout.
12x12 inch IP-67 Circularly Polarized RFID Antenna for UHF FCC | R9029-WHP-RTF
More InfoDocumentsSpecifications Reviews- Circularly Polarized 902-928 Mhz for FCC RFID
- IP67 Outdoor Rated, includes "weep holes" for drainage

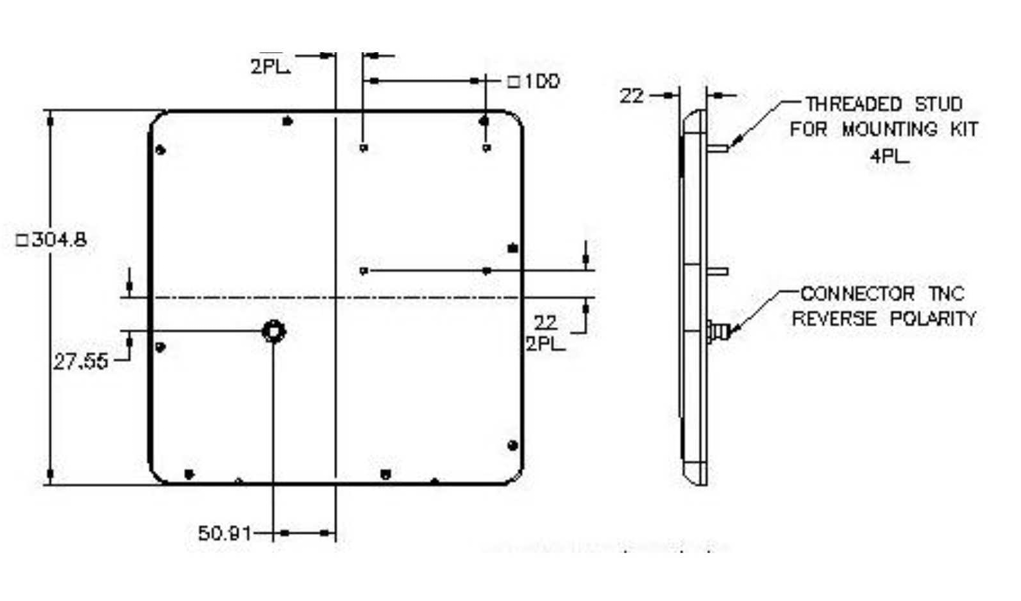

- Size: 12x12 Inches & 1.2 Inches Thick
- Gain: 9 dBic gain (RHCP)
- Beamwidth: 63x63 Degrees Beamwidth
- Connector: Fixed RPTNC-Female (on rear)

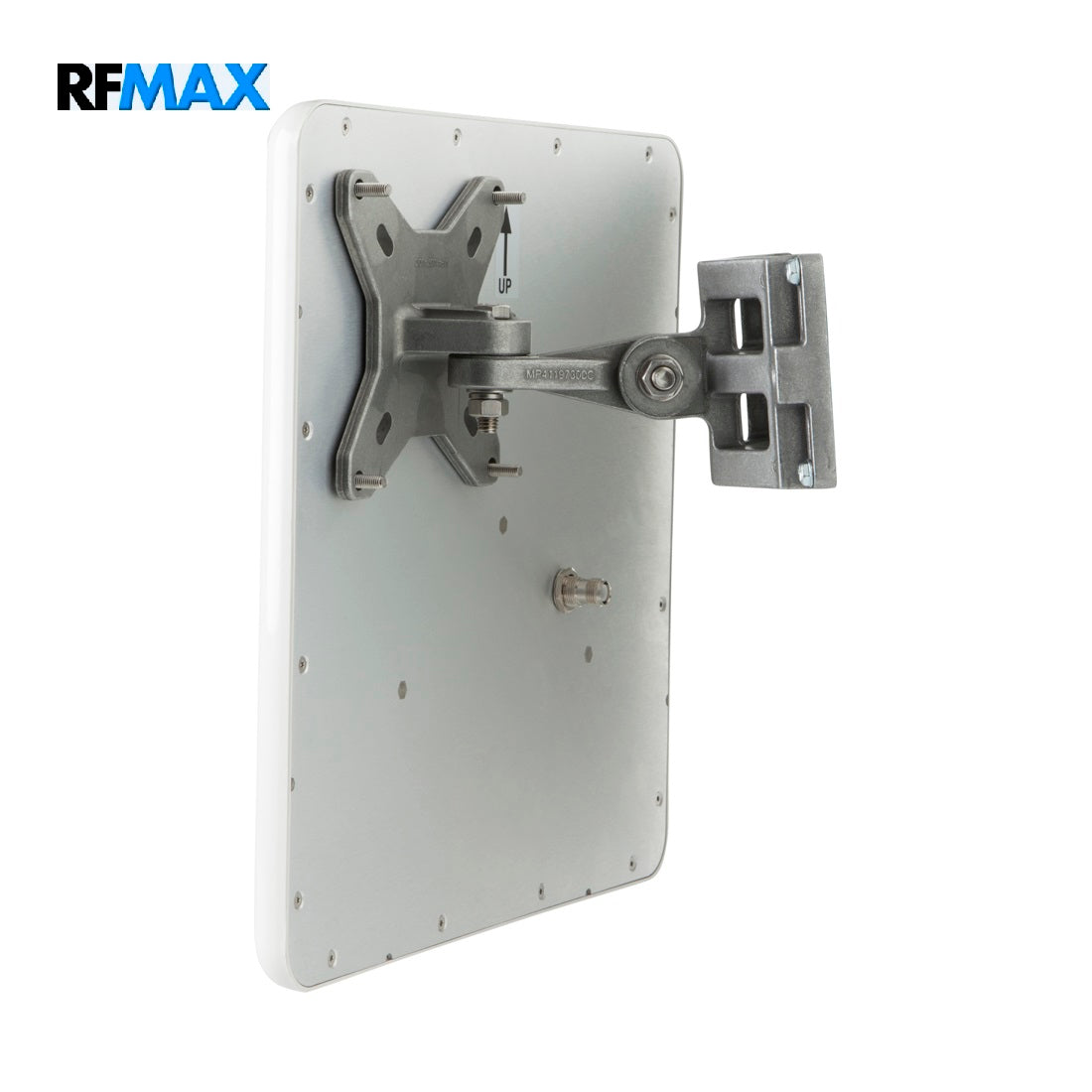

- Mounting: (4) M6 Mounting Studs Spaced at 100mm VESA
- Applications: Outdoor Parking Gates, Race Timing, High Pressure Wash Downs
- Mounting Bracket NOT Included / Sold Separately.
*NOTE: Antenna Bracket, Part # HDMNT-100MM Sold Separately*
More Information
Specifications
| SKU | R9029WHPRTF |
|---|---|
| Manufacturer Part Number | R9029-WHP-RTF |
| Manufacturer | RFMAX |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 67 |
| Polarity | Circular |
| Gain | 9.5 dBiC |
| Horizontal/Azimuth Beamwidth | 63 |
| Vertical/Elevation Beamwidth | 63 |
| Connector Type | Connector - Rear |
| Connector 1 | RP TNC-Female |
| Height/Length (inches) | 12 |
| Height/Length (mm) | 305 |
| Operating Temp (celsius) | -45 to +70 |
| Thickness/Diameter (inches) | 1.2 |
| Thickness/Diameter (mm) | 23 |
| Width (inches) | 12 |
| Width (mm) | 305 |
| Weight (lbs) | 2.6 |
| Weight (grams) | 1200 |
| Material | Plastic |
| Mount Style | 4 Stud (100mm VESA) |
| Product Condition | New |
