6 in 1 BRICK antenna: GPS with 17 ft. cable & SMA, 2x 5G/LTE with 17 ft. cables & SMA & 3x WiFi with 17 ft. cables & RPSMA | RBDM-G55WWW-17-SSSRRR-B

  • $310.00
    Unit price per

RBDM-G55WWW-17-SSSRRR-B


138 Can ship immediately
Lead time for qty above 138:  Ships in 14-16 Weeks

Shipping calculated at checkout.

6 in 1 BRICK antenna: GPS with 17 ft. cable & SMA, 2x 5G/LTE with 17 ft. cables & SMA & 3x WiFi with 17 ft. cables & RPSMA | RBDM-G55WWW-17-SSSRRR-B

More InfoDocumentsSpecifications Reviews

6 in 1 BRICK antenna: GPS with 17 ft. cable & SMA, 2x 5G/LTE with 17 ft. cables & SMA & 3x WiFi with 17 ft. cables & RPSMA

Optimized for For Sierra Wireless MP70

USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR?   ADD THIS GASKET



More Information

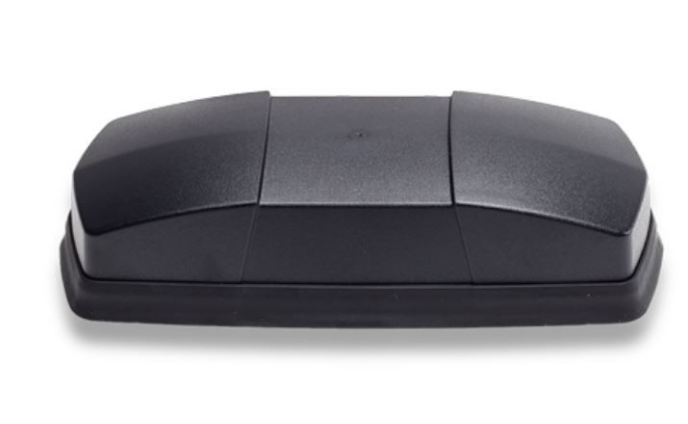

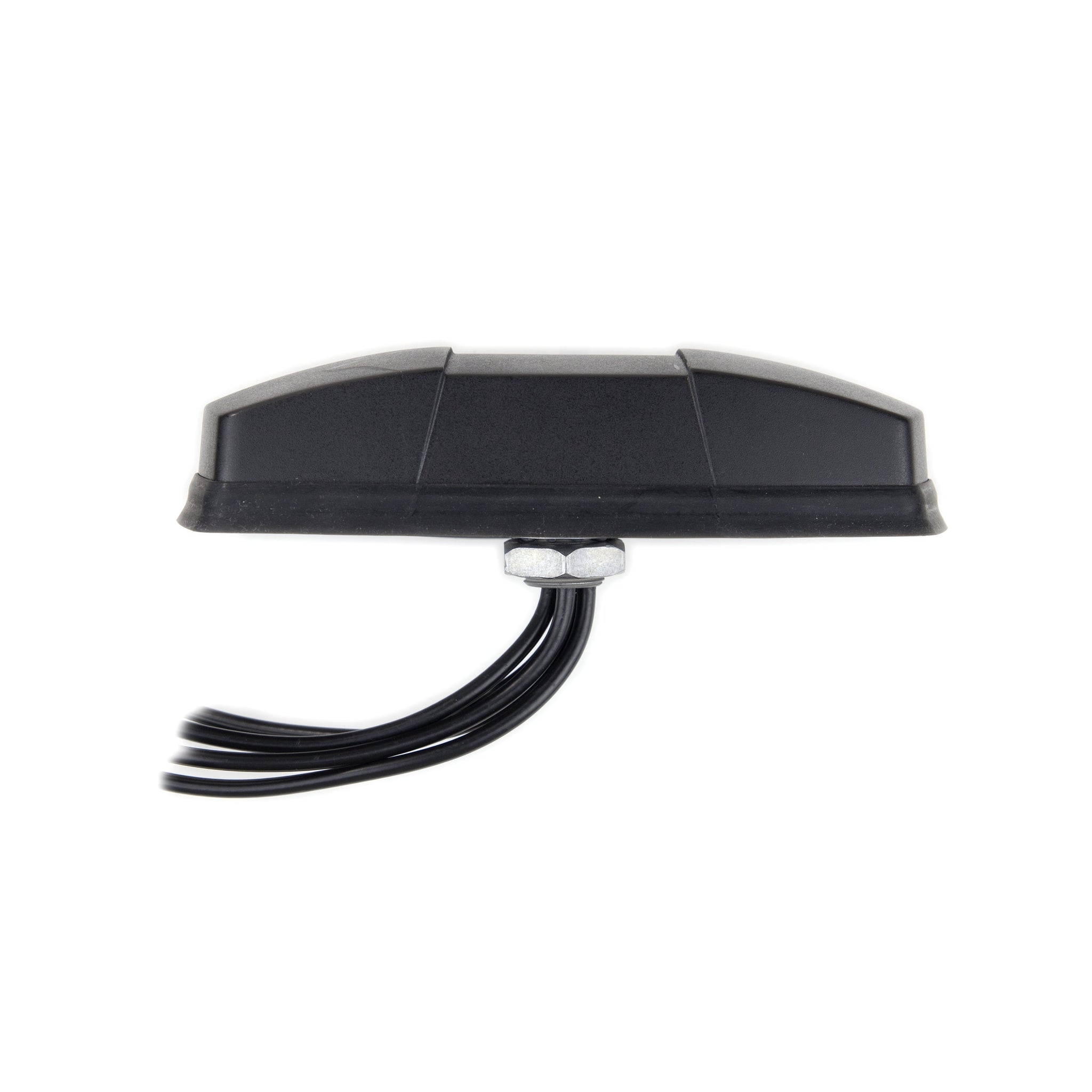

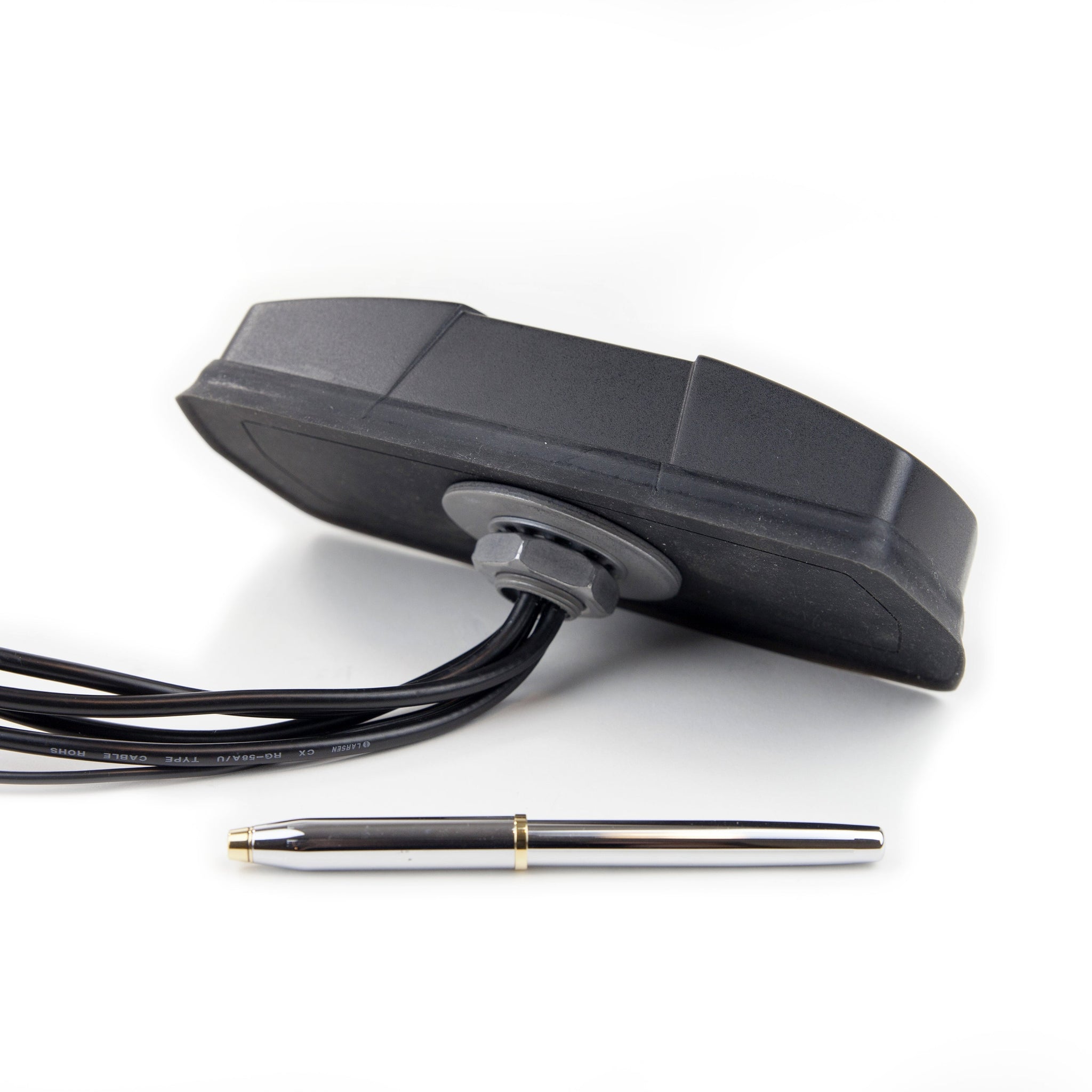

GPS with 17 ft. cable & SMA, 2x 5G/LTE with 17 ft. cables & SMA & 3x WiFi with 17 ft. cables & RPSMA. Our "Brick" Low profile antenna is easy to install using the heavy-duty threaded stud mount which is 100% vandal proof and IP67 rated for year-round indoor or outdoor use.  The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network.

  • RFMAX "Brick" Antenna
  • Same footprint as Antenna Plus, but lower profile
  • Elements: Dual 4G-5G Cellular / MiMo LTE, 1 GPS and 3 WiFi
  • High Gain at all frequencies for maximum connection speeds
  • Designed for Indoor or Outdoor Installations (IP67 rated)
  • Easy to install, Rugged & 100% Vandal Proof
  • Approved for use with all major carriers: AT&T, Verizon, Sprint
  • Optimized for For Sierra Wireless MP70
  • Color: Black

Documents


Specifications

SKU RBDMG55WWW17SSSRRRB
Manufacturer Part Number RBDM-G55WWW-17-SSSRRR-B
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Antenna Style "Brick" Multi-Element Antenna
Polarity Linear
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 Ohm
Horizontal/Azimuth Beamwidth 360
Height/Length (mm) 202
Mount Style Direct Mount
Color Black
Connector 1 SMA-Male
Connector 2 RP SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
