W5017: IP-65 Rated Outdoor 868 & 915 MHz Antenna with SMA Male Connector
W5017
Shipping calculated at checkout.
W5017: IP-65 Rated Outdoor 868 & 915 MHz Antenna with SMA Male Connector
More InfoDocumentsSpecifications Reviews

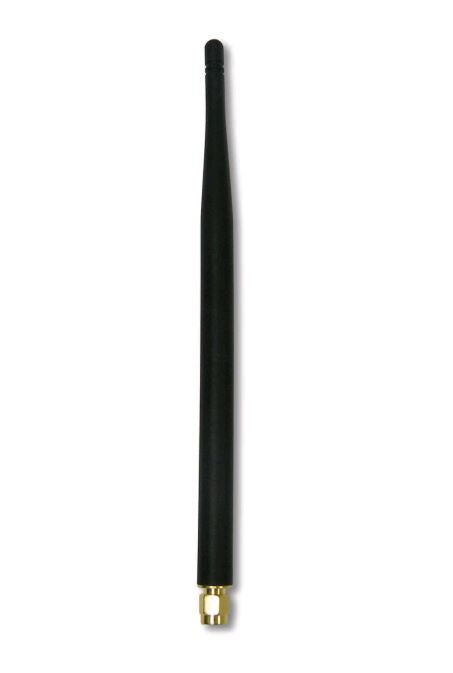

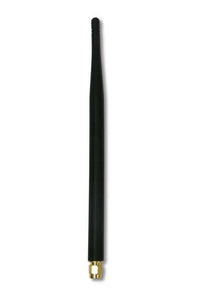

The W5017 is an IP-65 rated antenna covering both the 868 to 928 MHz ISM bands, and is suitable for either European or North American operations. The antenna is supplied in a slim 179 mm / 7 inch long form factor. The W5017 has an SMA-Male connector and comes in a UV and IP-65 compliant black plastic radome making it ideal for industrial environments.
More Information
The W5017 is an IP-65 rated antenna covering both the 868 to 928 MHz ISM bands, and is suitable for either European or North American operations. The antenna is supplied in a slim 179 mm / 7 inch long form factor. The W5017 has an SMA-Male connector and comes in a UV and IP-65 compliant black plastic radome making it ideal for industrial environments.
Applications include:
- ISM Smart Metering
- Solar Inverter Communications
- Industrial Controls
- Remote Control / Wireless M2M
Features:
- IP65 Ingress Protection
- UV Protection
- Antenna Size 0.39 x 7 in (10 x 179 mm)
- Fully RoHS Compliant
- SMA Male Connector
Documents
Specifications
| SKU | W5017 |
|---|---|
| Manufacturer Part Number | W5017 |
| Manufacturer | Pulse |
| Antenna Category | 900 MHz |
| Working Frequency | 868-928 MHz |
| Gain | 2 dBi |
| Antenna Style | Blade/Stubby Antennas |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 7 |
| Height/Length (mm) | 179 |
| Thickness/Diameter (inches) | 0.39 |
| Thickness/Diameter (mm) | 10 |
| Weight (lbs) | 0.1 |
| Weight (grams) | 10 |
| Material | Black TPEE |
| Operating Temp (celsius) | -40 to +85 C |
| Color | Black |
| Connector 1 | SMA-Male |
| IP Rating | IP65 |
| Product Condition | New |
