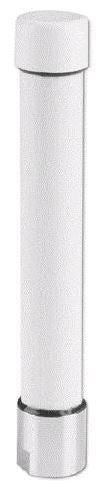

RO2406NM: Outdoor Rated Fiberglass Omni Antenna With N-Male Connector
RO2406NM
RO2406NM: Outdoor Rated Fiberglass Omni Antenna With N-Male Connector
More InfoDocumentsSpecifications ReviewsThe RO2406NM from Pulse / Larsen is an IP67 rated Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at 2400-2500 MHz frequency and is 11.5 inches long with N-Male connector. This antenna was designed for wireless system developers and M2M system integrators in mind. Its rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.
More Information
The RO2406NM from Pulse / Larsen is an IP67 rated Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at 2400-2500 MHz frequency and is 11.5 inches long with N-Male connector. This antenna was designed for wireless system developers and M2M system integrators in mind. Its rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.
Features:
- Frequency: 2400-2500 MHz
- Gain: 6 dBi
- Environmental Rating: Outdoor - IP67
- Power: 20 Watts Max Input
- Wind Load: 150 MPH
- ESD Protection: DC Grounded
- Connector: N-Male
Documents
Specifications
| SKU | RO2406NM |
|---|---|
| Manufacturer Part Number | RO2406NM |
| Manufacturer | Pulse |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 6 dBi |
| Antenna Style | Omnidirectional Base Station Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 20 |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 11.5 |
| Weight (lbs) | 0.5 |
| Connector 1 | N-Male |
| IP Rating | IP67 |
| Product Condition | New |
