Pulse Larsen NMO150/450/758 Antenna

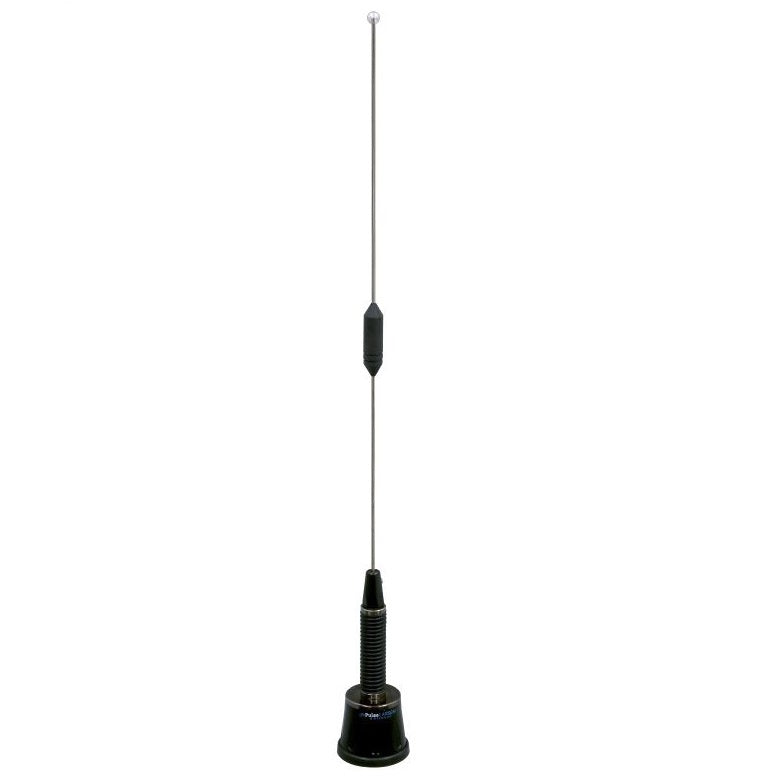

More InfoDocumentsSpecifications ReviewsThe Pulse – Larsen NMO150/450/758 is a Tri-band Whip antenna with a spring base.
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information
Arcadian Inc. is pleased to present the Pulse - Larsen Whip Antenna, part # NMO150/450/758 .
Documents
We Also Recommend
RNMOT-58U-SQM-C-17I
NMO Mount for Motorola APX8500 with QMA Installed. 3/4 Inch NMO with 17 Ft RG-58U Cable & QMA Connector Installed.
$36.27
$36.27
View Details
RNMOM-195-SQM-B-12I-ST
Heavy Duty Magnetic NMO Mount with Standard QMA Male and Pull Tab Strain Relief. RNMOM-195-SQM-B-12I-ST
$93.50
$93.50
$79.20
$79.20
View Details
RNMOM-195-STM-B-12I-ST
Heavy Duty NMO Mag Mount with TNC, Rubber Boot, Pull Tab, Strain Relief, 12 ft Low Loss Cable
$93.50
$93.50
$79.20
$79.20
View Details
RNMOT-195-STM-C-17I
High frequency Thru hole NMO, 17 ft LMR195 cable, TNC Male connector Installed, ¾ hole, Chrome | RNMOT-195-STM-C-17I
$23.24
$23.24
View Details
Specifications
| SKU | NMO150450758 |
|---|---|
| Manufacturer Part Number | NMO150/450/758 |
| Manufacturer | Pulse |
| Working Frequency | VHF:150-174 MHz |
| Gain | Unity 0 dBi |
| Working Frequency 2 | UHF: 430-520 MHz |
| Gain 2 | 5 dBi |
| Working Frequency 3 | P25: 700/800: 750-870 MHz |
| Gain 3 | 4 dBi |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 100 Watts |
| VSWR: < X: 1 | <2:1 at 150-165, 430-490 & 750-870 MHz. <2.5:1 at 165-174 & 490-520 MHz |
| Spring Loaded | Yes |
| Height/Length (inches) | 17.81 inches |
| Height/Length (mm) | 452.5 mm |
| Thickness/Diameter (inches) | 1.61 inches |
| Thickness/Diameter (mm) | 40.9 mm |
| Weight (lbs) | 0.45 lbs. |
| Weight (grams) | 205 grams |
| Material | Stainless Steel |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | NMO |
| Color | Black |
| Connector 1 | NMO |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Product Condition | New |
