PDQ24518-MI1: 4x4 MiMo WiFi Antenna for Mist Systems / Juniper Networks. 2.4 & 5 GHz Dual Polarization. 8 dBi with 30 inch Cables & RPSMA
PDQ24518-MI1
Shipping calculated at checkout.
PDQ24518-MI1: 4x4 MiMo WiFi Antenna for Mist Systems / Juniper Networks. 2.4 & 5 GHz Dual Polarization. 8 dBi with 30 inch Cables & RPSMA

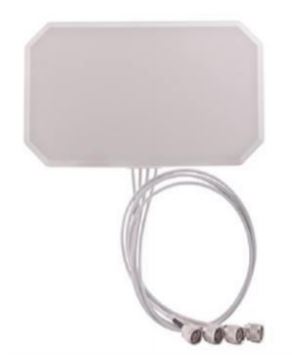

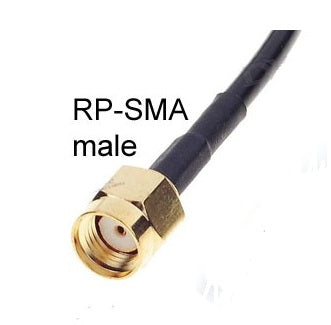

More InfoDocumentsSpecifications ReviewsThe PDQ24518-MI1 from Laird Technologies is a 4x4 MiMo WiFi antenna designed for use with Mist Systems / Juniper Networks equipment. The antenna measures in at 7 inches tall and 12 inches across. This unit can handle up to 10 watts of input power and includes integrated 30inch long RG58 coax cables with integrated RPSMA connectors. The unit accepts FOUR WiFi inputs: two H-Pol and two V-Pol.
For mounting, see the HDMNT-150MM. This antenna does NOT ship with heavy-duty mounting hardware.
More Information
The PDQ24518-MI1 from Laird Technologies is a 4x4 MiMo WiFi antenna designed for use with Mist Systems / Juniper Networks equipment. The antenna measures in at 7 inches tall and 12 inches across. This unit can handle up to 10 watts of input power and includes an integrated 30inch long RG58 coax cable with integrated RPSMA connector. The unit accepts FOUR WiFi inputs: two H-Pol and two V-Pol.
Documents
Specifications
| SKU | PDQ24518MI1 |
|---|---|
| Manufacturer Part Number | PDQ24518-MI1 |
| Manufacturer | Laird |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 8 dBi |
| Working Frequency 2 | 5150-5900 MHz |
| Gain 2 | 8 dBi |
| Antenna Style | Panel Antenna |
| Polarity | Dual Polarity |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Directional |
| VSWR: < X: 1 | 2.0 - 2.4:1 |
| Front/Back Ratio (Db) | 20dB |
| Horizontal/Azimuth Beamwidth | 45-90 degrees |
| Vertical/Elevation Beamwidth | 30-45 degrees |
| No Of Elements | 4 |
| Height/Length (inches) | 7 |
| Height/Length (mm) | 178 |
| Width (inches) | 12 |
| Width (mm) | 305 |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 26 |
| Weight (lbs) | 1.5 |
| Weight (grams) | 0.69 KG |
| Material | White Polycarbonate |
| Operating Temp (celsius) | -30 to +70c |

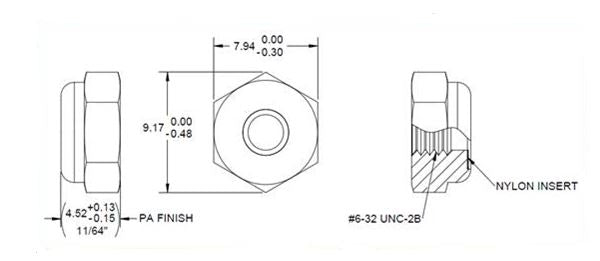

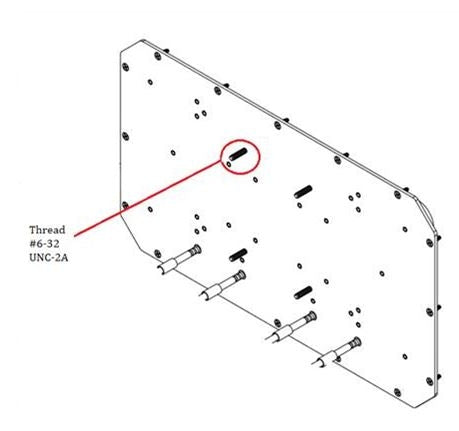

| Mount Style | Studs on Back Plate |
| Mount Pattern | 4 studs at 61.98 x 83.06mm studs |
| Color | White |
| Cable Type | RG-58/U |
| Number of Cables | 4 |
| Cable Length (inches) | 30 inches |
| Cable Length (mm) | 762 mm |
| Product Condition | New |
