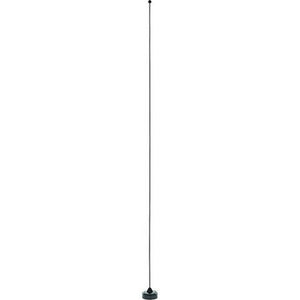

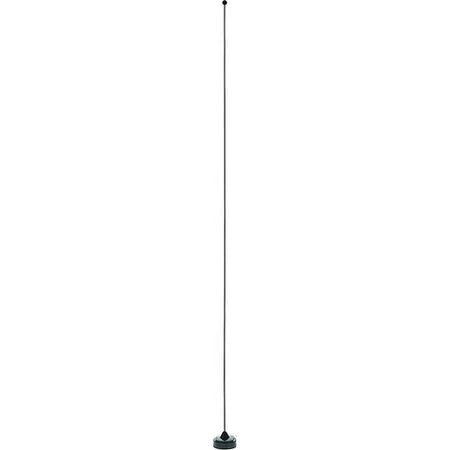

PCTCN4750: PCTEL / Maxrad 470-512 MHz Chrome Nut Field tune Antenna - Unity
PCTCN4750
PCTCN4750: PCTEL / Maxrad 470-512 MHz Chrome Nut Field tune Antenna - Unity
More InfoDocumentsSpecifications ReviewsPCTEL’s high-performance chrome nut antenna series offers a durable, super flexible design and reinforced brass button contact for maximum durability against external shock or limited vehicle height clearance. Wideband performance, attractive “Titanium gray” reflective finish, and sleek drop shape rod tip, combined with market competitive prices makes this new series one of the best values on the marketplace.
This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information
PCTEL’s high-performance chrome nut antenna series offers a durable, super flexible design and reinforced brass button contact for maximum durability against external shock or limited vehicle height clearance. Wideband performance, attractive “Titanium gray” reflective finish, and sleek drop shape rod tip, combined with market competitive prices makes this new series one of the best values on the marketplace.
Features
- Optimized bandwidth performance - Only 11 models required to cover all frequencies between 118 MHz and 2.5 GHz
- High-Tech “Titanium gray” reflective plating - Closely mimics the color of the metallic surface on which the antenna is installed, nicely complementing the appearance of public safety, livery, and service vehicles
- Gold plated, brass contact button interface - Provides optimized electrical performance, corrosion resistance and maximum 100lb pull force resistance for long lasting, trouble-free operation
- Teardrop style rod tip - Less prone to detachment due to impact (factory tuned models only)
- Heavy-duty zinc die-cast base for maximum durability and corrosion resistance under extreme weather conditions
- Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts
Documents
Specifications
| SKU | PCTCN4750 |
|---|---|
| Manufacturer Part Number | PCTCN4750 |
| Manufacturer | PCTEL |
| Antenna Category | UHF (380-600 MHz) |
| Antenna Style | 1/4 Wave Whip |
| Ground Plane Required | No |
| Product Condition | New |
