Panasonic Toughbook Havis Docking Station - White Vehicular Antenna. GPS+3G/4G/LTE Cellular+WiFi
PAN-RSF-AW-G4W-TTT
Panasonic Toughbook Havis Docking Station - White Vehicular Antenna. GPS+3G/4G/LTE Cellular+WiFi

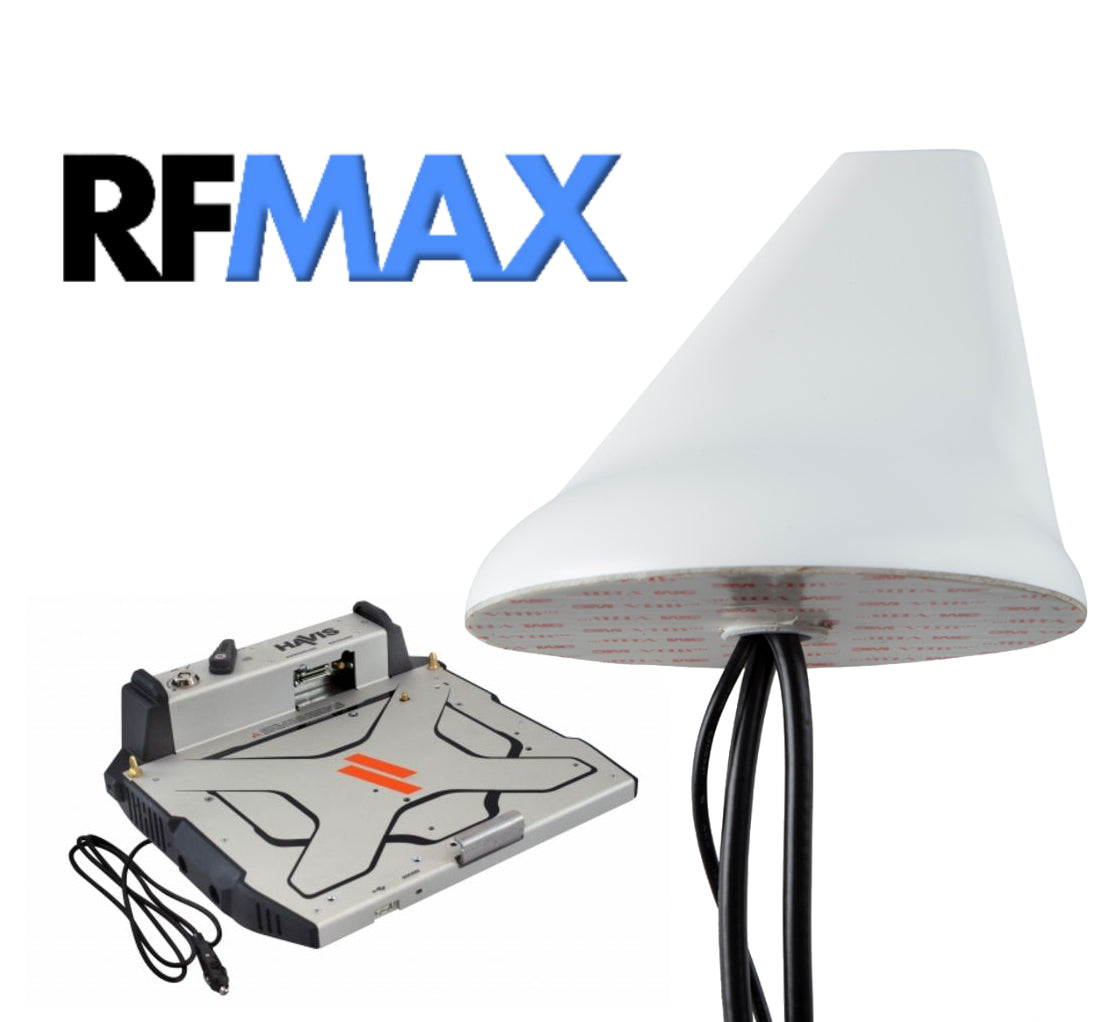

More InfoDocumentsSpecifications ReviewsThe RFMAX PAN-RSF-AW-G4W-TTT is a white, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems, with customized 17 foot long cables with TNC connectors. The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package. These parts are NCNR / Non Cancellable - Non Returnable.

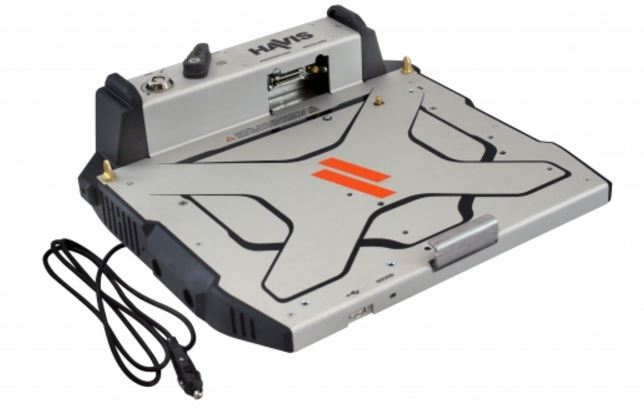

Optimized for use with Panasonic Toughbook Havis Docking Stations
*Please note: This antenna does NOT fit on the 2020 Ford Interceptor*
More Information
The RFMAX PAN-RSF-AW-G4W-TTT is a white, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems. This vehicular multi-band antenna is customized with 17 foot long cables and TNC connectors, and is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package. The PAN-RSF-AW-G4W-TTT has 3 cables to optimally support the different technologies: 3G/4G/ LTE data communication is supported on a low-loss RG-58 cable with TNC connector. WIFi/ WLAN operates on a separate RG-58 cable. The 26 dB gain GPS antenna has its own RG-174 cable.
FEATURES

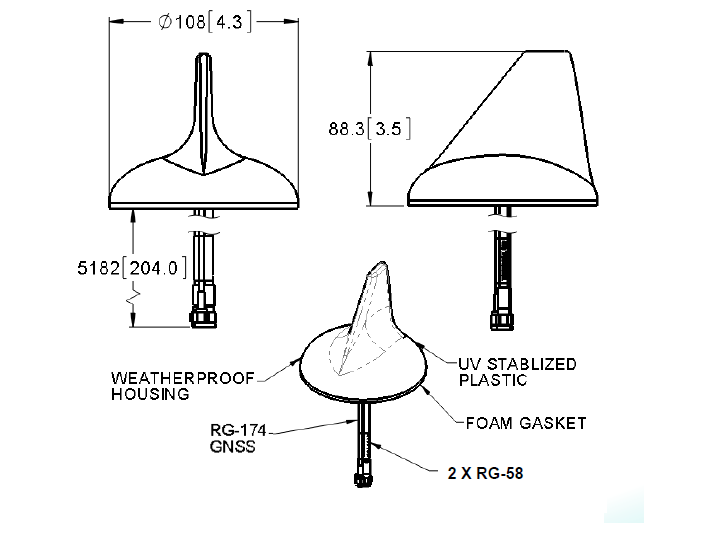

- Single antenna: 3.5" tall x 4" diameter supports all 3 signals (GPS,Cellular,WIFI)
- Combines 3 high performance elements: GPS + WIFI + 3G/4G/LTE
- 3 Separate 17 ft. cables with TNC connectors offer installation flexibility
- Easily mounted through a single 3/4” hole
- Note: These parts are NCNR / Non Cancellable - Non Returnable
- Optimized for use with Panasonic Toughbook Havis Docking Stations
Documents
We Also Recommend
Specifications
| SKU | PANRSFAWG4WTTT |
|---|---|
| Manufacturer Part Number | PAN-RSF-AW-G4W-TTT |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 / 1710-2170 / 2300-2700 MHz (3G/4G/LTE Celllular ) |
| Gain | 4.5 dBi |
| Working Frequency 2 | 2400-2485 / 5150-5875 MHz (WiFI/WLAN) |
| Gain 2 | 6.5 dBi |
| Working Frequency 3 | 1575.42 MHz (3.3 and/or 5V GPS) |
| Gain 3 | 28-30 dBi - Active GPS |
| Antenna Style | "Sharkfin" Multi-Element Antennas |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 20 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 3.5 |
| Height/Length (mm) | 89 |
| Width (inches) | 4.26 |
| Width (mm) | 108 |
| Weight (lbs) | 0.94 |
| Weight (grams) | 470 |
| Operating Temp (celsius) | -40 to +85 |
| Mount Style | Adhesive Mount |
| Color | White |
| Connector Type | Cable - Bottom Entry |
| Cable Type | RG-58/U |
| Number of Cables | 3 |
| Cable Length (inches) | 17 feet / 204 inches |
| Connector 1 | TNC-Male |
| IP Rating | IP65 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Product Condition | New |
