NMOWBQCFT Pulse-Larsen 1/4 Wave whip Wide Band with spring 132-850 MHz Omni Antenna NMO Base
NMOWBQCFT
NMOWBQCFT Pulse-Larsen 1/4 Wave whip Wide Band with spring 132-850 MHz Omni Antenna NMO Base
More InfoDocumentsSpecifications Reviews*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information

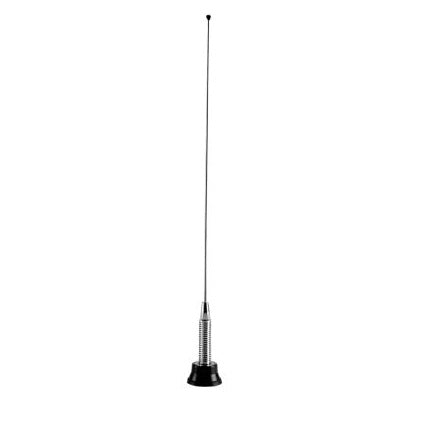

The Pulse-Larsen NMOWBQCFT is a 1/4 Wave whip Wide Band with spring 132-850 MHz Omnidirectional Antenna with NMO Base
Founded in 1965 as Larsen Electronics, the company was acquired in 1999 by Radiall, then later by Pulse Electronics. Most of the company's antennas, mounts and cable kits are still made in the USA in the original factory in Vancouver, Washington. With over 2,000 standard antennas deliverable on short-notice, Pulse-Larsen is the recognized industry leader for LMR/Land Mobile Radio and Public Safety / M2M communications. All Pulse / Larsen antennas, cable kits and NMO mounts are covered by the original Larsen No Nonsense 2-Year Warranty.
These antennas have standard NMO / New Motorola mounting. NMO cable kits, such as the NMOKHFUD series can be purchased separately on this website.
Documents
Specifications
| SKU | NMOWBQCFT |
|---|---|
| Manufacturer Part Number | NMOWBQCFT |
| Manufacturer | Pulse |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 132-850 MHz |
| Gain | 2 dBi |
| Antenna Style | 1/4 Wave Whip |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 200 W |
| VSWR: < X: 1 | 2:01 |
| Height/Length (inches) | 20.5 |
| Height/Length (mm) | 520.7 |
| Operating Temp (celsius) | -40 to +85 |
| Color | Chrome |
| Connector 1 | NMO |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Product Condition | New |
