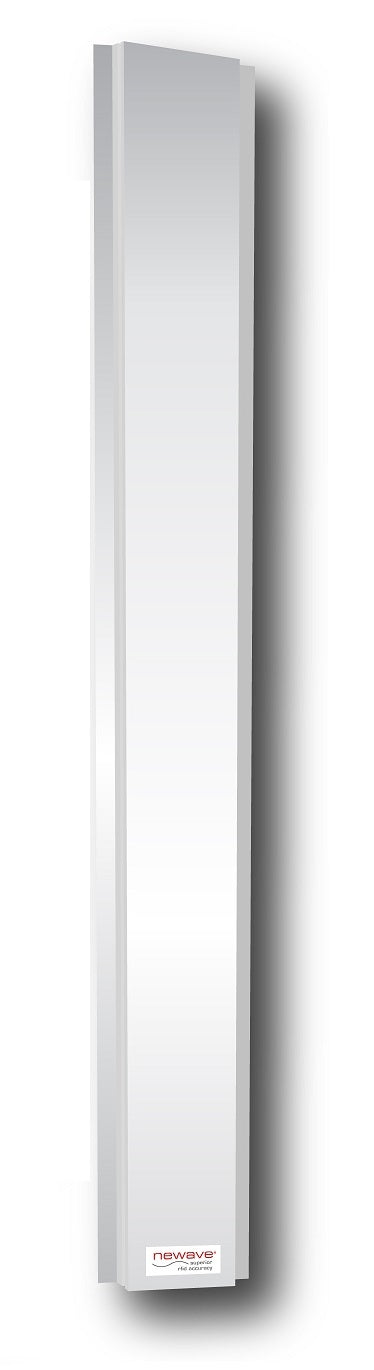

N7-IG: NSS Wave®-N7 FCC (902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female connector - Improved Ground Plane
N7IG
Shipping calculated at checkout.
N7-IG: NSS Wave®-N7 FCC (902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female connector - Improved Ground Plane
More InfoDocumentsSpecifications ReviewsN7: NSS Wave-N7 FCC(902-928 MHz) Omni directional Multi Linear Antenna with RP TNC Female connector.
***Please Note This Item is Non-Cancelable and Non-Returnable***
More Information
Specifications
| SKU | N7IG |
|---|---|
| Manufacturer | NeWave Sensor Solutions |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| Polarity | Dual Polarity |
| Gain | 5.5 dBi |
| Horizontal/Azimuth Beamwidth | 360 Degree |
| Vertical/Elevation Beamwidth | 360 Degree |
| Height/Length (inches) | 87 |
| Height/Length (mm) | 2200 |
| Operating Temp (celsius) | -4 F to 140 F (--20 C to 60 C) |
| Thickness/Diameter (inches) | 1.5 / 2.5 with Foam Insulation |
| Thickness/Diameter (mm) | 38 |
| Width (inches) | 9 |
| Width (mm) | 229 |
| Weight (lbs) | 4 |
| Weight (grams) | 1800 |
| Product Condition | New |
