MT-242043/TRH/A/K 12x12 inch IP-67 Circularly Polarized RFID Antenna - FCC & ETSI
MT-242043/TRH/A/K
Shipping calculated at checkout.
MT-242043/TRH/A/K 12x12 inch IP-67 Circularly Polarized RFID Antenna - FCC & ETSI
More InfoSpecifications Reviews

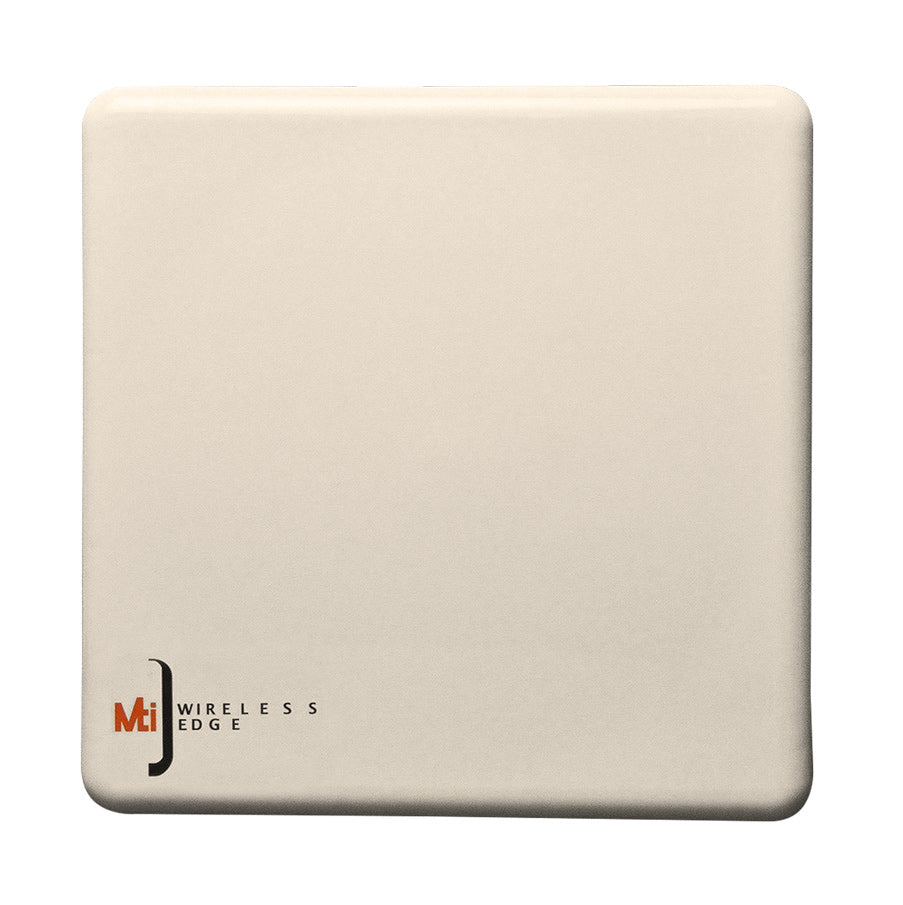

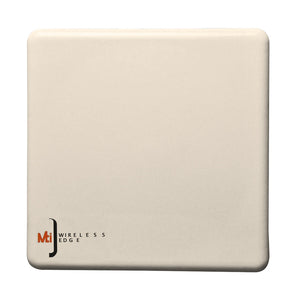

The MT-242043-TRH-A-K Circularly Polarized wide-band outdoor RFID Antenna from MTI measures in at 12x12 inches. This unit operates at 7.5-9.5 dBic gain, covers 65 x 65 degrees beamwidth, and is a good choice for passive UHF RFID applications when both the FCC band of 902-928 Mhz. and the ETSI band of 865-868 Mhz are required. The unit carries an IP67 rating, thus it is well suited for outdoor installations such as parking gates, overhead race timing trusses, and distribution center yards. It comes with a fixed RPTNC-Female Connector on the back plate, and has 4 threaded mounting studs.
More Information
Specifications
| SKU | MT242043TRHAK |
|---|---|
| Manufacturer Part Number | MT-242043/TRH/A/K |
| Manufacturer | MTI |
| Working Frequency | 865-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 67 |
| Polarity | Circular |
| Gain | 7.5 |
| Horizontal/Azimuth Beamwidth | 65 |
| Vertical/Elevation Beamwidth | 65 |
| Connector Type | Connector - Rear |
| Connector 1 | RP TNC-Female |
| Height/Length (inches) | 12 |
| Height/Length (mm) | 305 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 25 |
| Width (inches) | 12 |
| Width (mm) | 305 |
| Weight (lbs) | 2.6 |
| Weight (grams) | 1200 |
| Material | Plastic |
| Mount Style | 4 Stud |
| Product Condition | New |
