Low profile Tri-Band Antenna, with TNC Male for Harris All band antenna, T-Band P25 Radio | RBDM-155/490/758-17-T-B

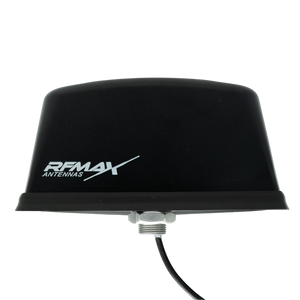

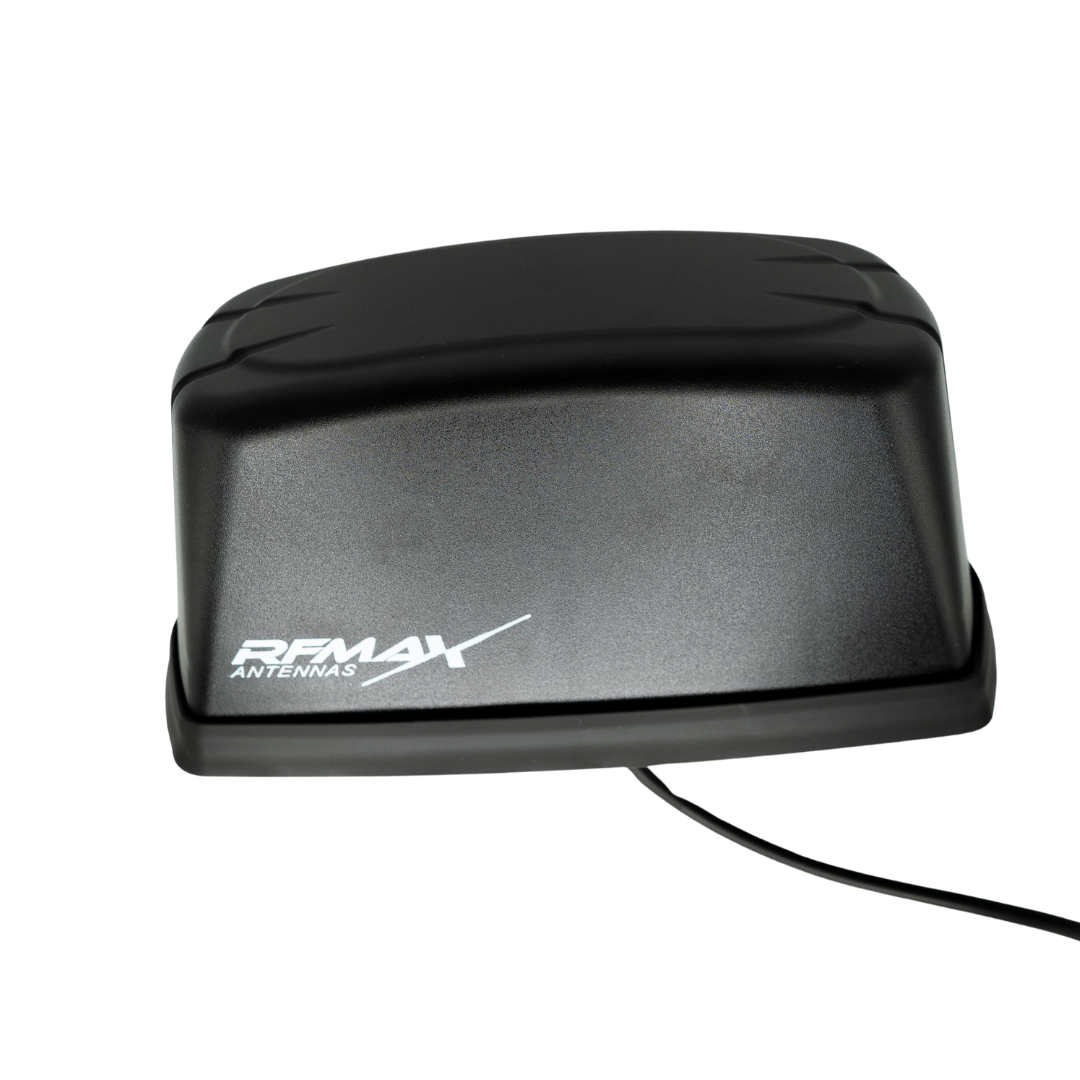

More InfoDocumentsSpecifications ReviewsThe RFMAX low profile antenna # RBDM-155/490/758-17-T-B is the first of it's kind! A true "low-profile" roof mounted antenna with Tri-band capability to support VHF, UHF and 700/800 Mhz P25 radio communication. This antenna was specifically designed to work with the L3-Harris Unity XG-100M™, XL-200M.
** NO MORE BROKEN ANTENNAS !!! **

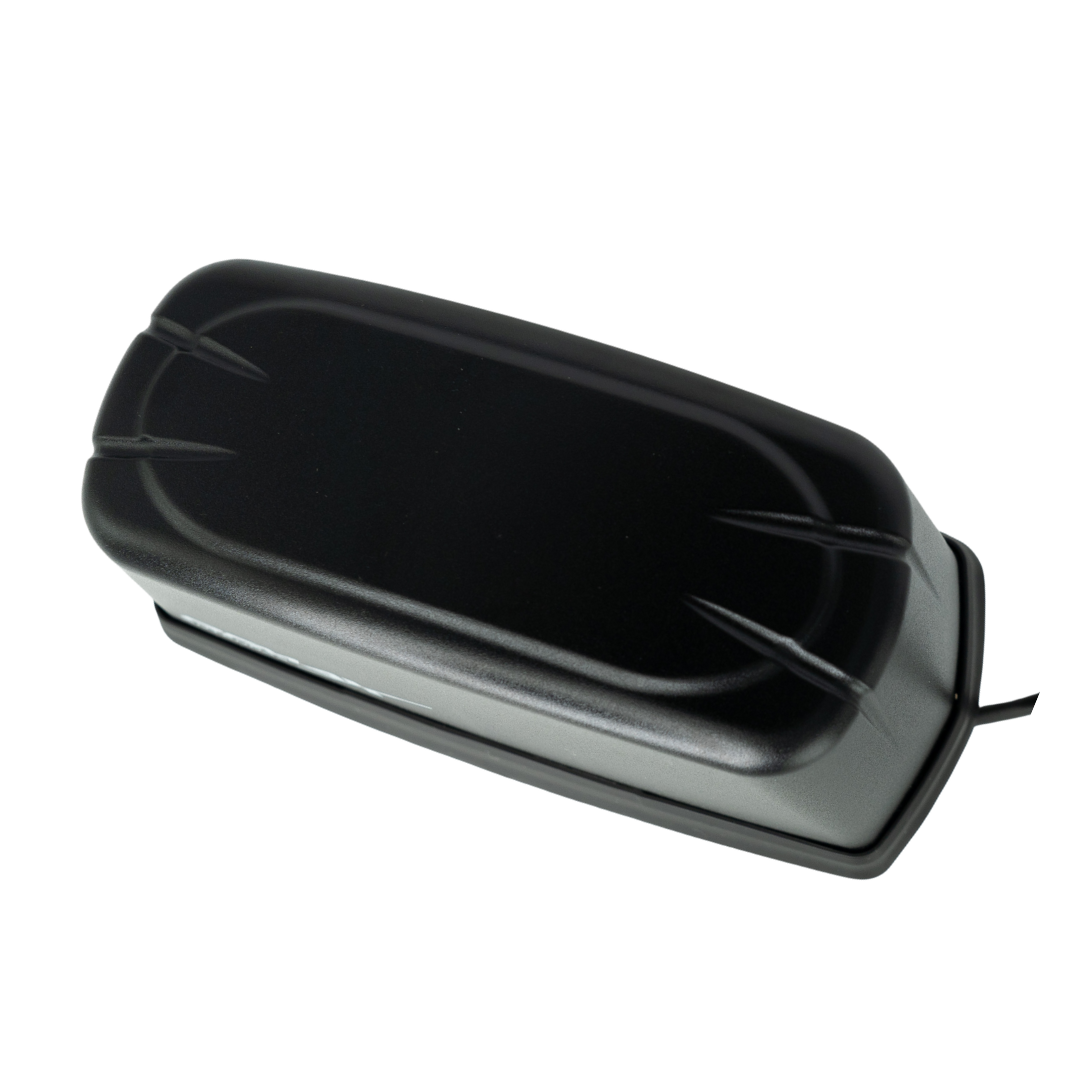

- Less than 4 inches tall. 8 inches long. 3.5 inches wide.
- Fits ALL vehicles (use RBDM Gasket for Ford Explorer) including Chevy Tahoe and Dodge Durango
- VHF: 153-157 MHz, UHF: 470-510 MHz, P25: 750-870 MHz, 100 Watts Max Power

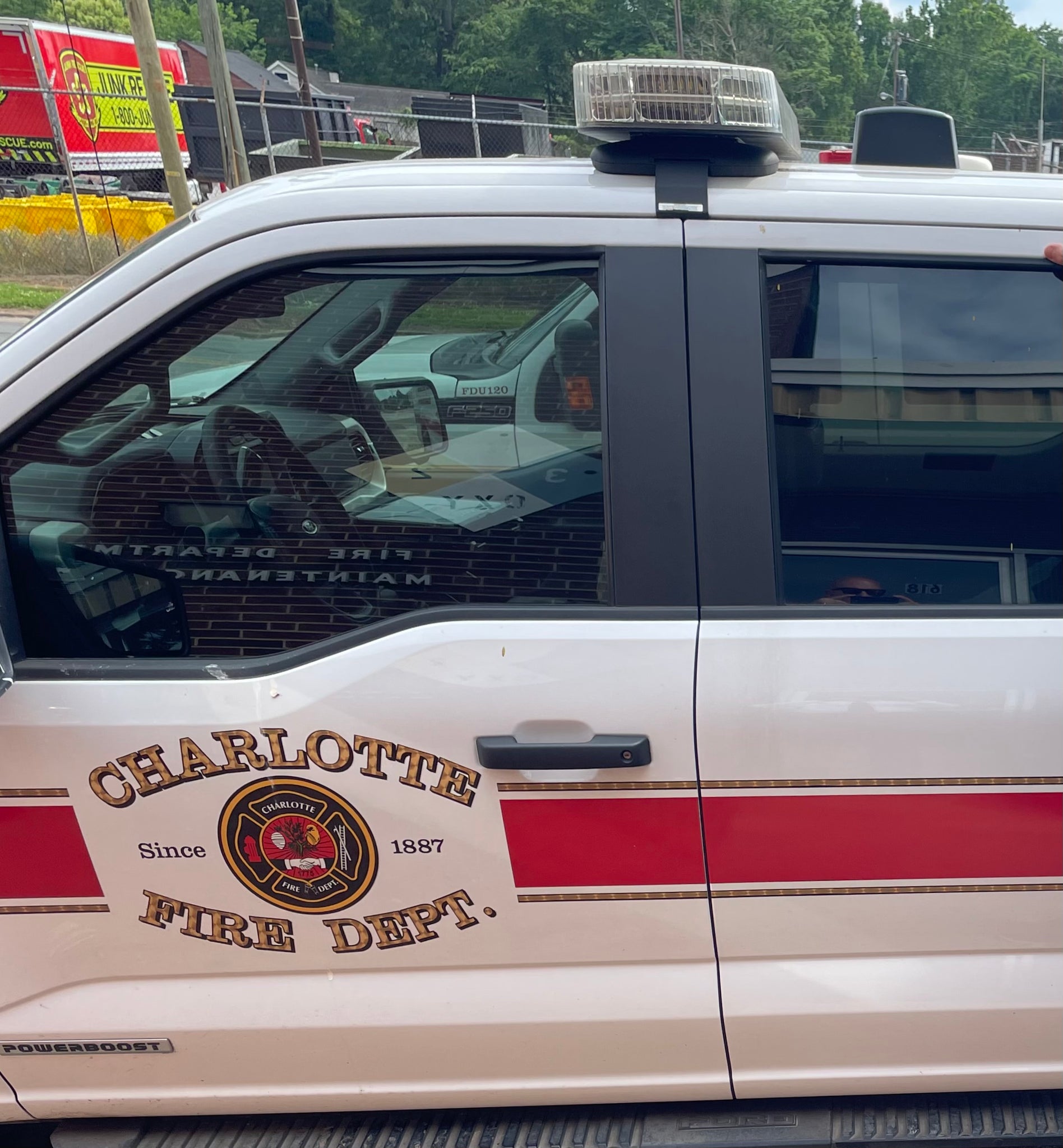

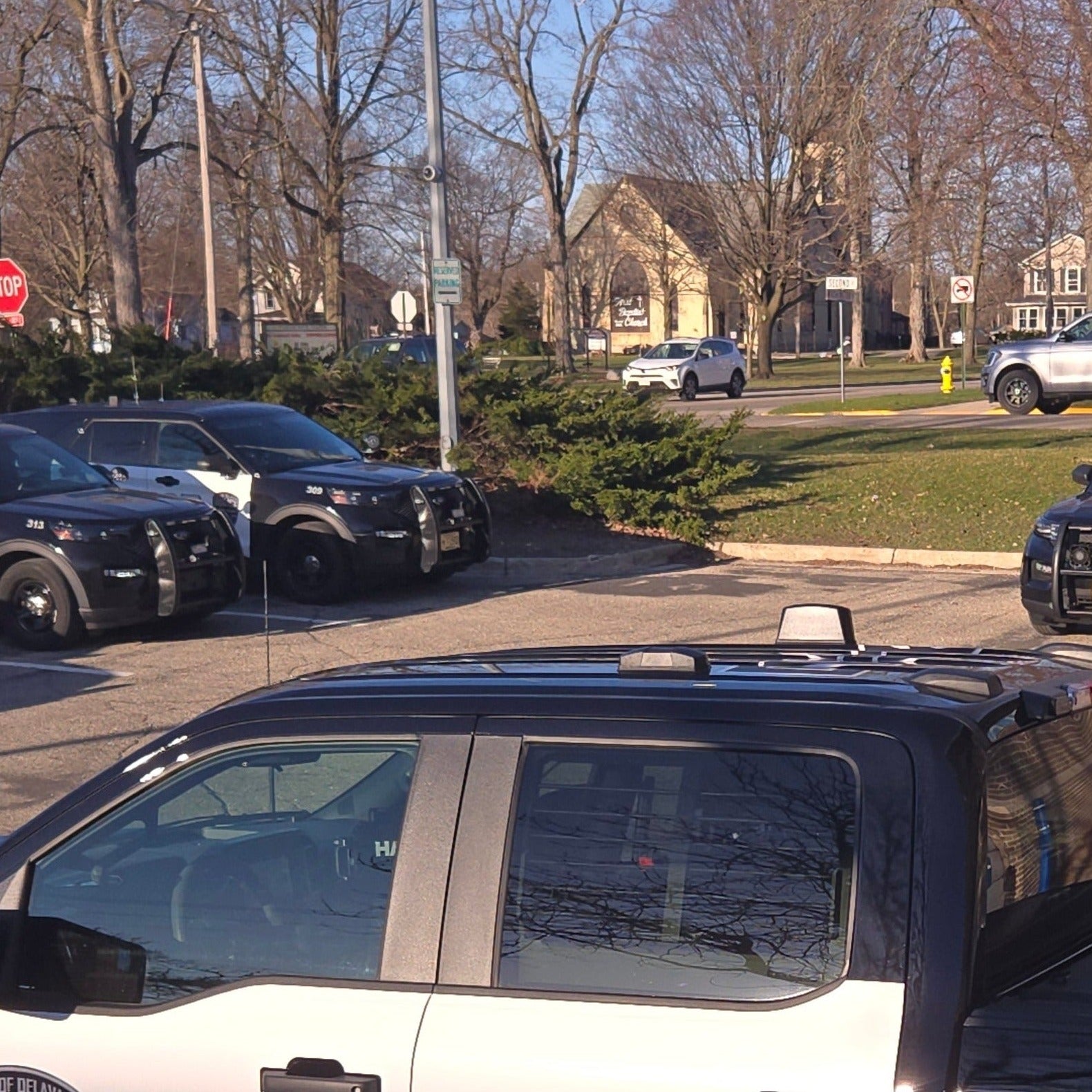

- Sits BELOW THE LIGHT BAR so it is not affected by parking garages or low-hanging branches and DOES NOT need to come off in the car wash
- Requires 7/8" hole for mounting this antenna
- Contact us for more info: techsupport@arcadianinc.com
USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
if you are looking for APX Radio Antennas- Click here
More Information

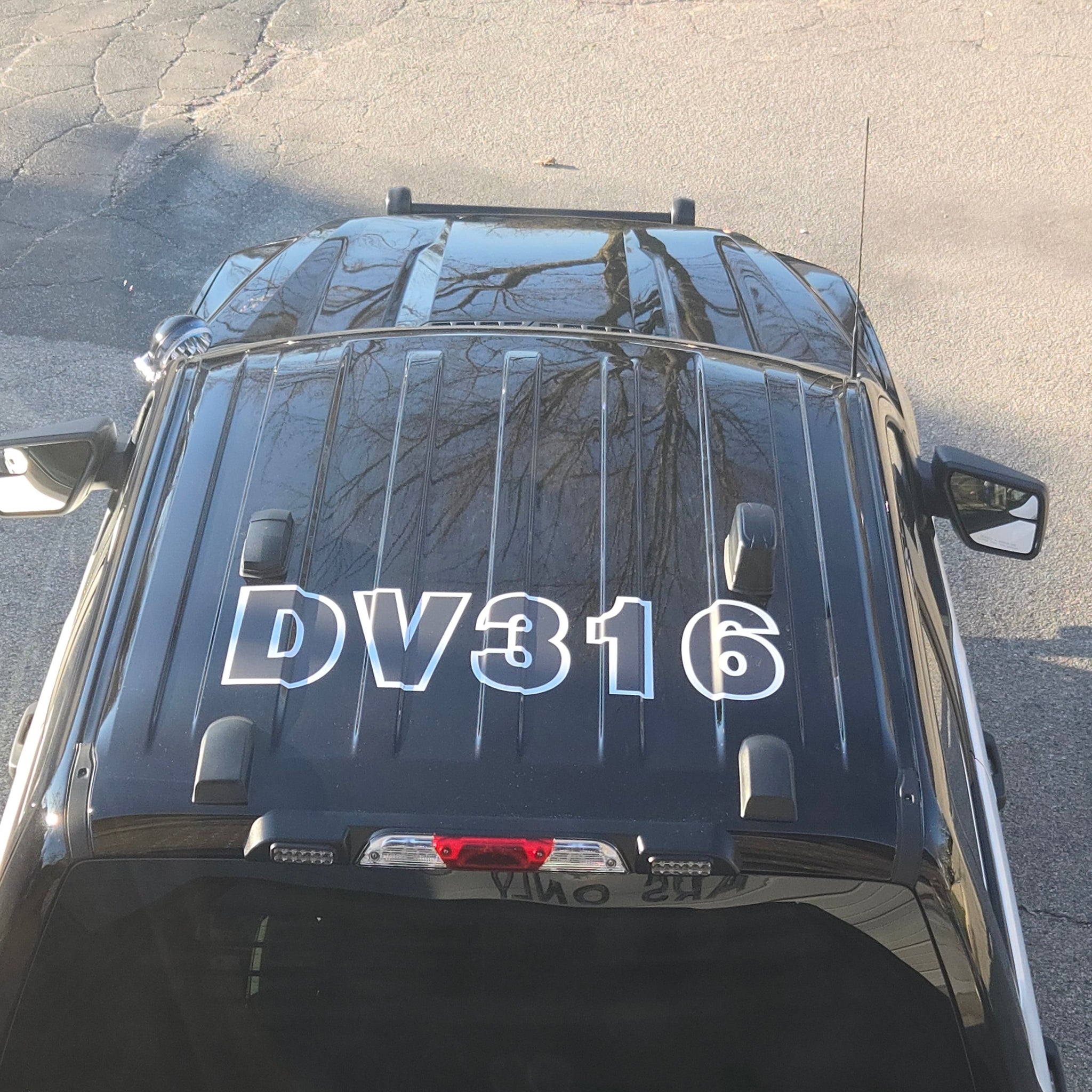

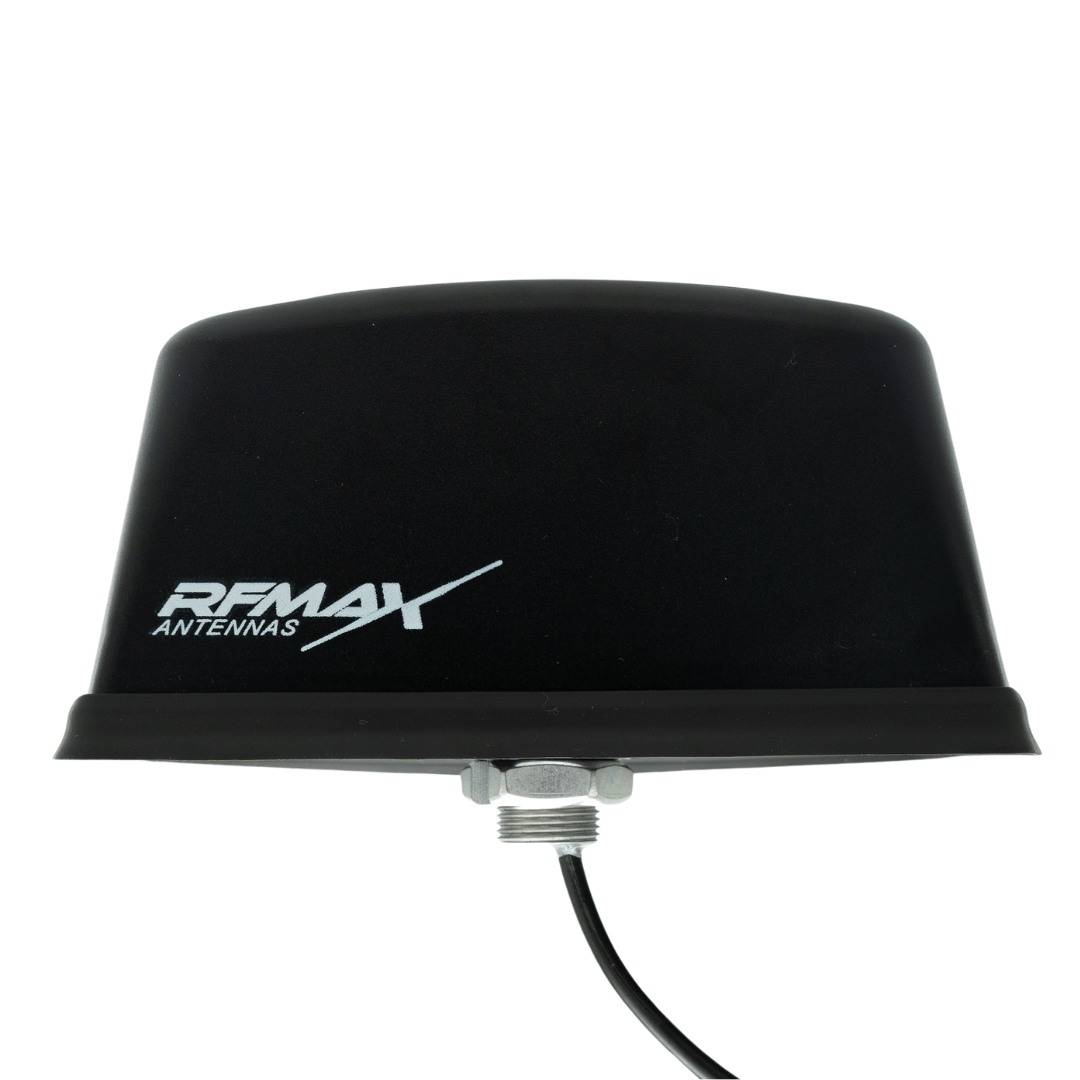

These antennas are stud mounted, thru-the-roof for maximum performance (not NMO) and include 17 feet of low loss cable, pre-installed. This antenna sits BELOW THE LIGHT BAR so it is not affected by parking garages or low hanging branches and DOES NOT need to come off in the car wash. This antenna mounts to ANY public safety vehicle, including Chevy Tahoe, Dodge Charger or Durango, Ford Explorer PIU. (Ford Explorer gasket sold separately, click here RBDM-GASKET)
Documents
We Also Recommend
RBDM-155/455/758-17-S-B
Low profile Antenna for Motorola APX8500 All-Band P25 Radio | RBDM-155/455/758-17-S-B
$180.00
$180.00
View Details
RBC150/450/758
Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio | RBC150/450/758
$81.14
$81.14
View Details
RBDM-G5W-17-QQQ-B
GPS + WiFi + 700/800 P25 (only) Antenna for Motorola APX 8500 Radio, for Ford Explorer, Chevy Tahoe , Dodge Durango and any Public Safety Vehicles Direct Mount (Not Compatible with VHF, UHF frequencies) | RBDM-G5W-17-QQQ-B
$198.00
$198.00
View Details
R2G5A-10SQM
GPS & 5G/4G/WiFi 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount. R2G5A-10SQM
$99.00
$99.00
View Details
Specifications
| SKU | RBDM15549075817TB |
|---|---|
| Manufacturer Part Number | RBDM-155/490/758-17-T-B |
| Manufacturer | RFMAX |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Working Frequency | VHF:153-157 MHz |
| Gain | VHF: -1 dBi |
| Working Frequency 2 | UHF: 470-510 MHz |
| Gain 2 | UHF: 1.4 dBi |
| Working Frequency 3 | P25: 700/800: 750-870 MHz |
| Gain 3 | P25 700/800: 2.7 dBi |
| Antenna Style | "Brick" Multi-Element Antenna |
| Bands | Multi |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 100 Watts |
| VSWR: < X: 1 | VHF: 3.5:1 at 153-157 MHz. UHF: 2:1 at 470-510 MHz. P25: 2:1 at 750-870 MHz |
| Height/Length (inches) | 3.78 inches tall |
| Thickness/Diameter (inches) | Length: 8 inches. Width at base: 3.5 inches. |
| Weight (lbs) | 1.16 lbs. |
| Material | UV Stable Plastic Antenna & Rubber Gasket |
| Operating Temp (celsius) | -40 to +85 C |
| Color | Black |
| Connector 1 | TNC-Male |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes-Mount on Metal Roof |
| Product Condition | New |
