LPS88213NT-61SMAM: IP67 Rated 3G Cellular Antenna. Low Profile, Permanent Mount with SMA.
More InfoDocumentsSpecifications Reviews

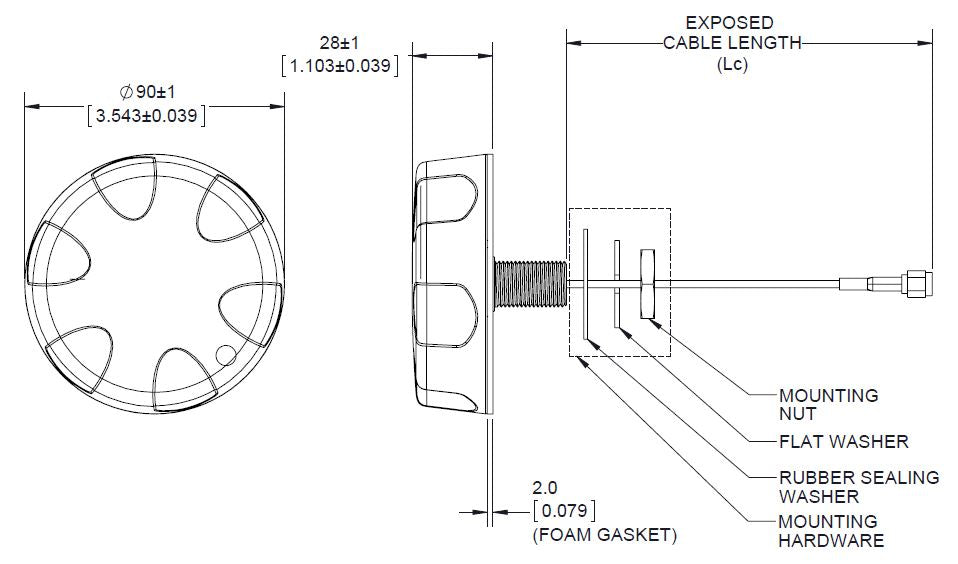

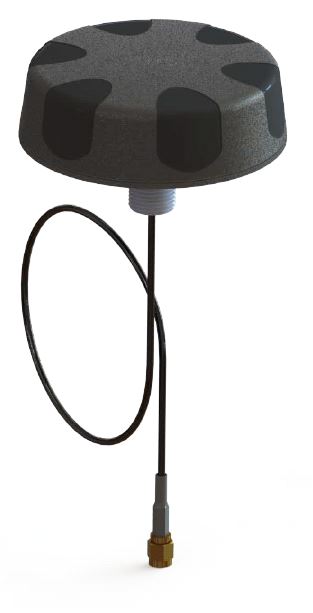

The Laird LPS88213NT-61SMAM is a multi-band cellular antenna for 3G - 880-960 & 1710-2170 Mhz. Low profile Disk-Puck type antenna mounts with a metallic threaded stud, and lock nut, and is pre-configured with a 24 inch cable & SMA male connector.
More Information
The Laird LPS88213NT-61SMAM is a multi-band cellular antenna for coverage in the 3G frequencies of 880-960 & 1710-2170 Mhz. The unit is a IP67 rated, low profile Disk-Puck type antenna for wireless M2M communication. The antenna mounts with a metallic threaded stud, and lock nut. It is pre-configured with a 24 inch cable & SMA male connector.
Specifications:
- Frequency: 880-960 / 1710-2170 MHz
- Gain: 2.2-3.7 dBi
- VSWR: <2.5:1
- Input Power: 10 Watts
- Size: 3.5” x 1.0” ( 89 x 25 mm)
- Weight: 0.24 lbs
Equivalent To:
- Taoglas: G24 Ultima
- Antenna Plus: AP-85/18
- Mobile Mark: SM83719001CWHT180
Documents

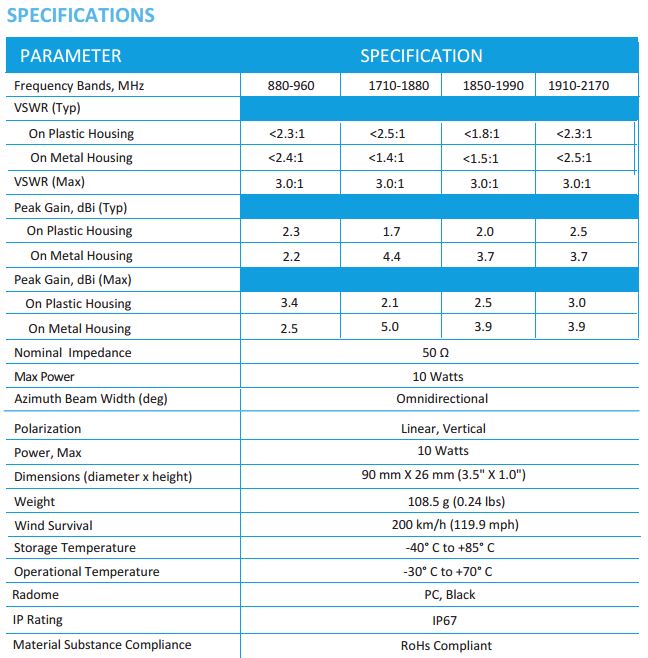

Specifications
| SKU | LPS88213NT61SMAM |
|---|---|
| Manufacturer Part Number | LPS88213NT-61SMAM |
| Manufacturer | Laird |
| Antenna Category | 4G/LTE (698-2700 MHz) |
| Working Frequency | 880-960 MHz |
| Gain | 2.2-2.3 dBi |
| Working Frequency 2 | 1710-1880 MHz |
| Gain 2 | 1.7-4.4 dBi |
| Working Frequency 3 | 1850-1990 MHz |
| Gain 3 | 2.0-3.7 dBi |
| Working Frequency 4 | 1910-2170 MHz |
| Gain 4 | 2.5-3.7 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 1.4:1 - 2.5:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 1 |
| Height/Length (mm) | 26 |
| Thickness/Diameter (inches) | 3.5 |
| Thickness/Diameter (mm) | 90 |
| Weight (lbs) | 0.24 lbs. |
| Weight (grams) | 108.5 g |
| Material | Polycarbonate |
| Operating Temp (celsius) | -30 to +70 |
| Mount Style | Direct 3/4" hole |
| Color | Black |
| Number of Cables | 1 |
| Cable Length (inches) | 24 |
| Cable Length (mm) | 610 |
| Connector 1 | SMA-Male |
| IP Rating | IP67 |
| Vehicular | Yes |
| Product Condition | New |
