13 Inch Direct Mount Horizontally Polarized Omni Antenna WLAN 2400-2500 MHz - N-Female

  • Regular price $80.18 Sale price $74.69
    Unit price per

OC24006H-FNF


+ -
19 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
25 $70.00
100 $64.85
250 $61.24
500 $58.03
Lead time for qty above 19:  Ships in 10-12 Weeks

Shipping calculated at checkout.

13 Inch Direct Mount Horizontally Polarized Omni Antenna WLAN 2400-2500 MHz - N-Female

More InfoDocumentsSpecifications Reviews

Laird OC24006H 13 inch direct mount 6 dbi horizontally polarized omni antenna for 2400-2500 MHz WLAN applications with fixed N-female connector - indoor/outdoor.


More Information

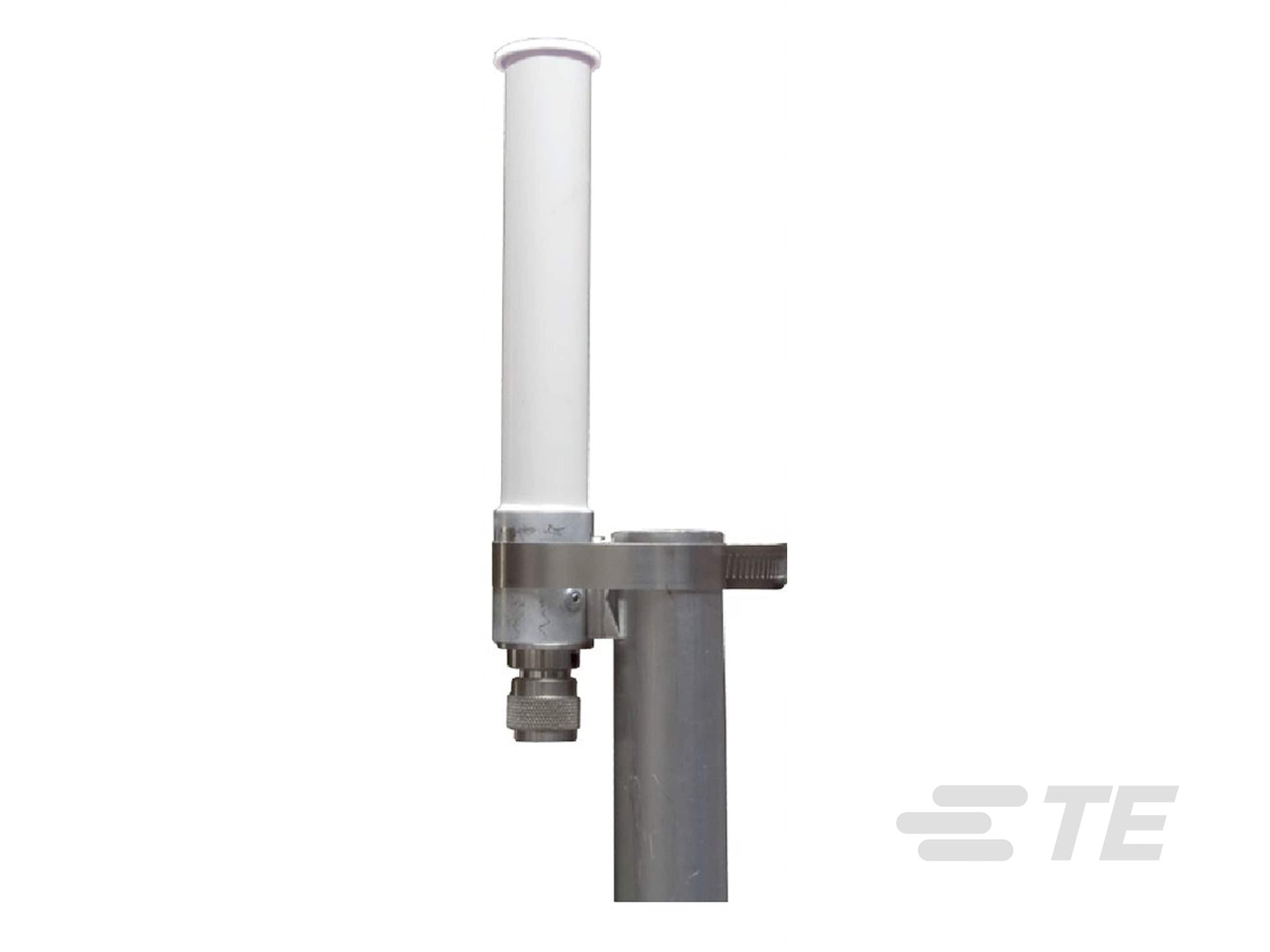

DIRECT MOUNT 6 DBI HORIZONTALLY POLARIZED OMNI ANTENNA

Laird Technologies OC24006H is a 2400- 2500 MHz omnidirectional, collinear, horizontally polarized array especially designed to
complement interior or exterior mounted wireless network systems. An integrated RF connector is imbedded in the antenna base cap
for direct AP mounting. Special venting permits either upright or inverted orientation in outdoor locations. The antenna may also be
pole mounted when separation from the AP is required for optimum positioning.

FEATURES

  • Horizontally polarized omnidirectional
  • Indoor/outdoor usage
  • Rugged, lightweight and water resistant
  • Direct to radio mounting
  • Conformance to RoHS

APPLICATIONS

  • Offices, hotels and college campuses
  • Airports and hospitals
  • Bus terminals and train stations
  • Museums, libraries and retail malls
  • Wi-Fi Hot Spots
  • Cellular off-loading

Documents


Specifications

SKU OC24006HFNF
Manufacturer Part Number OC24006H-FNF
Manufacturer Laird
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2400-2500 MHz
Gain 6dBi
Antenna Style Omnidirectional Base Station Antenna
Polarity Horizontal
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 10
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth Omnidirectional
Vertical/Elevation Beamwidth 25 degree
Height/Length (mm) 329
Thickness/Diameter (mm) 24
Weight (grams) 260
Material Polycarbonate
Operating Temp (celsius) (-30°C) to 70°C
Mount Style Connector Fixed or Mast Mount Kit
Color White
Connector 1 N-Female
OK for Outdoor Use Yes
Product Condition New
