MAF94198 NanoBlue Embedded Internal Antenna 2.5db gain - 2.4 GHz With u.FL & double side tape
MAF94198
Shipping calculated at checkout.
MAF94198 NanoBlue Embedded Internal Antenna 2.5db gain - 2.4 GHz With u.FL & double side tape
More InfoDocumentsSpecifications ReviewsLaird / Centurion NanoBlue embedded antenna for 2.4GHz WIFI with 4 inch cable & IPEX (mhf / u.fl) connector with 30x12x3.2mm double back tape installed.
More Information

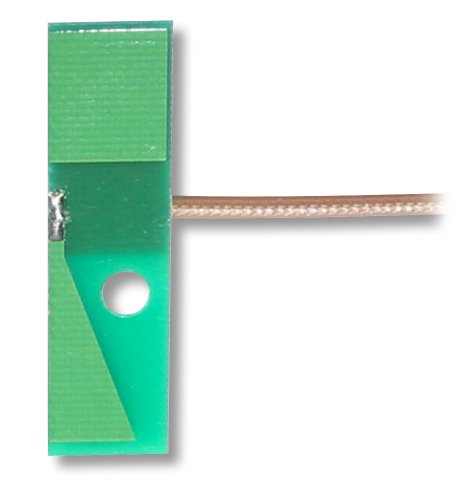

Laird / Centurion NanoBlue IP04 low cost 2 dbi gain embedded PCB antenna for 2.4GHz WIFI. 100mm / 4 inch 1.13 mm diameter cable & IPEX (mhf / u.fl) connector & double back tape installed. These antennas are specifically designed to be embedded inside devices for aesthetically pleasing and highly durable integration.
FEATURES
- 30x12x3.2mm double back tape installed
- Versatile and easy to use antenna for 2.4 to 2.5GHz Bluetooth and IEEE 802.11 devices
- Designed for easy connection to radio cards
- Utilizes patented PCB Microsphere technology
- Has a ground plane incorporated into the resonator structure so no additional ground plane is required to radiate efficiently
- Conformance to European RoHS Directive 2002/95/EC
Documents
We Also Recommend
Specifications
| SKU | MAF94198 |
|---|---|
| Manufacturer Part Number | MAF94198 |
| Manufacturer | Laird |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 2dBi |
| Antenna Style | Internal / Embedded |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Height/Length (inches) | 1.88 |
| Width (inches) | 0.5 |
| Thickness/Diameter (inches) | 0.032 |
| Weight (grams) | 2 |
| Cable Length (mm) | 100 |
| Connector 1 | U.FL |
| Product Condition | New |
