G450TN 10 Inch Tuf Duck Style Base Loaded 1/2 Wave Antenna - 450 Mhz UHF TNC
More InfoDocumentsSpecifications ReviewsLaird G450TN Tuf Duck style base loaded two way radio 1/2 wave antenna for 450 Mhz UHF Communication - 10 Inches long with TNC Male connector.
More Information

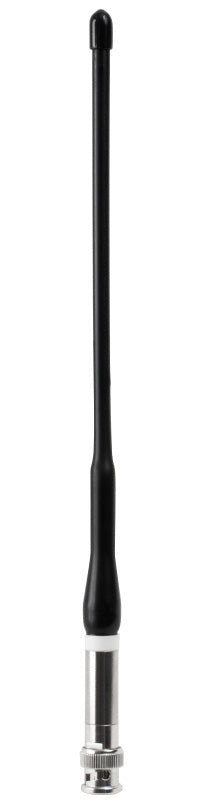

The Laird G450TN "Tuf Duck" is a base loaded 1/2 wave antenna for UHF communication. It measures 10 inches long, operates at 450-470 MHz and offers 2.5dB Gain with TNC male connector. Operates at -40 to +85 C. Equivalent to Centurion Tuf Duck, & Antenex ; GR-5.
FEATURES
• Base-loaded 1⁄2 wave flexible cable antenna
• Provides 2.5 dB gain over standard 1⁄4 wave antennas
• PVC coated exterior
• TNC Male connector
Documents
We Also Recommend
B4505CNS
B4505CNS Chrome Base Coil Antenna - NMO Spring - 450-470 MHz UHF - No Ground Plane required.
$64.59
$64.59
View Details
EXR450BN
EXR450BN Tuf Duck 1/4 Wave Dipole Two Way Radio Antenna with Elbow - 450 Mhz UHF
$33.01
$33.01
View Details
TRA4503P
TRA4503P | Phantom Omni Antenna- 450-470 MHz - N Female - Ground Plane Reqd
$64.59
$64.59
$60.06
$60.06
View Details
Specifications
| SKU | G450TN |
|---|---|
| Manufacturer Part Number | G450TN |
| Manufacturer | Laird |
| Antenna Category | UHF (380-600 MHz) |
| Working Frequency | 450-470 |
| Gain | 2.5 |
| Antenna Style | Blade/Stubby Antennas |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| Max Input Power (W) | 50 |
| VSWR: < X: 1 | 1.5 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 8.5 |
| Height/Length (mm) | 216 |
| Operating Temp (celsius) | -40 TO +85 |
| Mount Style | Screw On |
| Color | Black |
| Connector Type | Connector - Bottom |
| Connector 1 | TNC-Male |
| Product Condition | New |
