***WILL BE OBSOLETED AFTER ALL STOCK IS DEPLETED***4 Inch Tuf Duck 2 Way Radio Antenna 902-960 MHz ISM - TNC-Male
EXC902TN
Shipping calculated at checkout.
***WILL BE OBSOLETED AFTER ALL STOCK IS DEPLETED***4 Inch Tuf Duck 2 Way Radio Antenna 902-960 MHz ISM - TNC-Male
More InfoDocumentsSpecifications Reviews

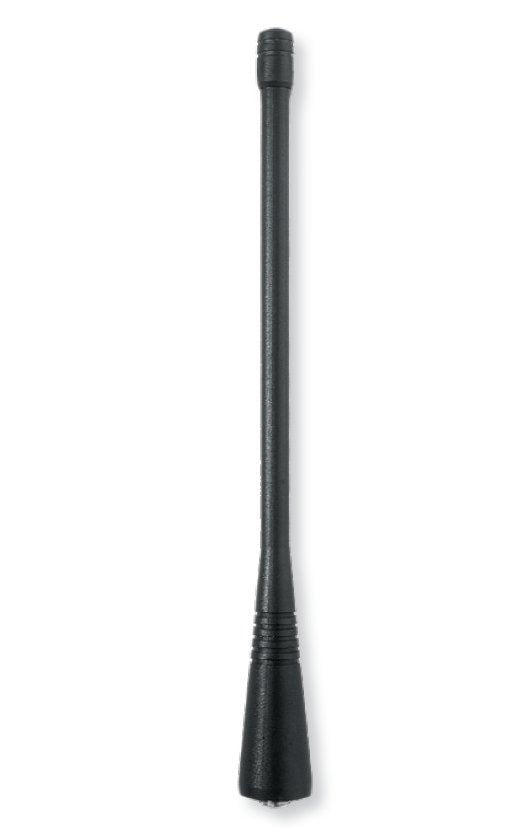

The Laird EXC902TN is a 4 inch quarter wave Tuf Duck antenna that operates in the 902â960 MHz ISM range and includes a TNC male connector.
More Information
The Laird EXC902TN is a quarter wave Tuf Duck style antenna that operates in the 902–960 MHz ISM range. The unit measures in at approximately 4 inches long, can handle up to 50 watts, has an operating temp of -40 to +85 C and includes a TNC male connector.
Laird's practical and rugged external wireless device antennas are designed to fit into the portable devices used in office, industrial and home environments. The antennas feature flexible elements and many are ½ wave coaxial dipole design for reduced ground dependence and improved performance.
FEATURES
- Injection molded quarter wave flexible cable antenna
- High durability, high efficiency
- Textured finish with strain-relief base
- Available in various standard connectors
- An original Tuf Duck antenna
APPLICATIONS
- For Bluetooth & IEEE 802.11b/g devices
Documents
Specifications
| SKU | EXC902TN |
|---|---|
| Manufacturer Part Number | EXC902TN |
| Manufacturer | Laird |
| Antenna Category | 900 MHz |
| Working Frequency | 902-928 MHz |
| Antenna Style | Blade/Stubby Antennas |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| VSWR: < X: 1 | 1.5:1 |
| Color | Black |
| Connector 1 | TNC-Male |
| Product Condition | New |
