B1442N: 144-174 MHz Mobile Base Coil NMO Mount Antenna-No Metalic Ground Plane Required
More InfoDocumentsSpecifications ReviewsThe Laird / Antenex B1442N is a 55 inch long, Chrome base coil, omnidirectional whip antenna for operation in the 144-174 MHz VHF band, with NMO base. No metal ground plane required.
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information

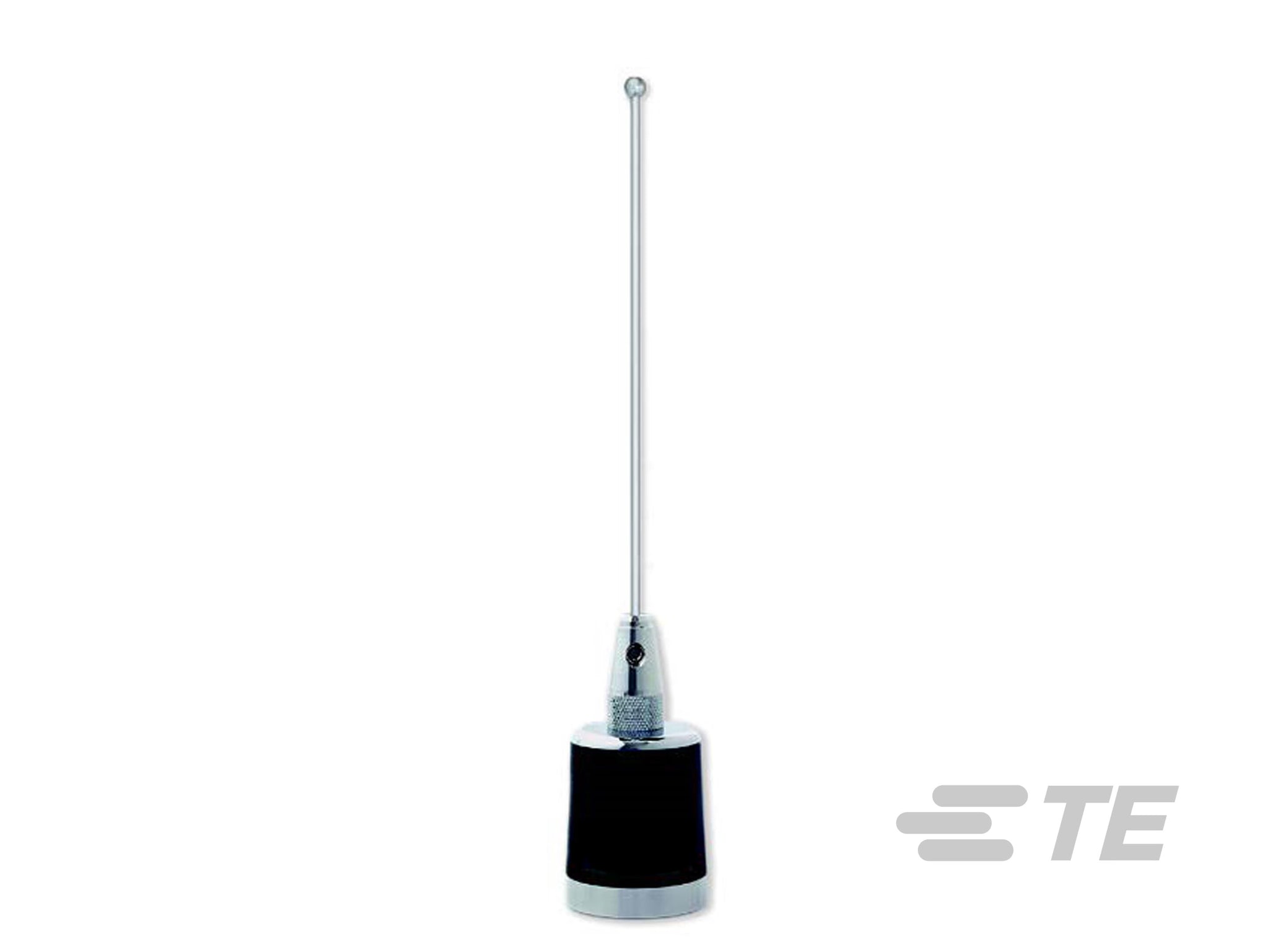

The Laird / Antenex B1442N is a 55 inch long, Chrome, base loaded mobile VHF whip antenna with NMO base. This antenna does NOT require a metal ground plane. It is omnidirectional and offers 2 dBi gain and accepts up to 100-200 watts max power and operates in the 144-174 MHz range.
Laird Technology’s ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.
FEATURES:
- Frequency Range: 144-174 MHz
- Gain: 2 dBi
- Length: 55 inches
- 100% tested on a network analyzer
- FIVE YEAR FACTORY WARRANTY
Documents
We Also Recommend
Specifications
| SKU | B1442N |
|---|---|
| Manufacturer Part Number | B1442N |
| Manufacturer | Laird |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 144-174 MHz |
| Gain | 2 dBi |
| Antenna Style | Base Coil Antennas |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 2.0:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 110 |
| Spring Loaded | No |
| Height/Length (inches) | 55 |
| Height/Length (mm) | 1397 |
| Thickness/Diameter (inches) | 1.375 |
| Thickness/Diameter (mm) | 34.93 |
| Operating Temp (celsius) | (-45 to 85) |
| Color | Chrome |
| Connector Type | Connector - Bottom |
| Connector 1 | NMO |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
