B1323: 132-174 MHz Mobile Base Coil NMO Mount Antenna- Metalic Ground Plane Required
B1323-L
B1323: 132-174 MHz Mobile Base Coil NMO Mount Antenna- Metalic Ground Plane Required
More InfoDocumentsSpecifications Reviews*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
***This item is subject to an MOQ of 11 pcs***
More Information

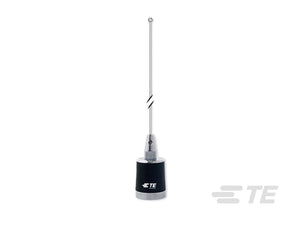

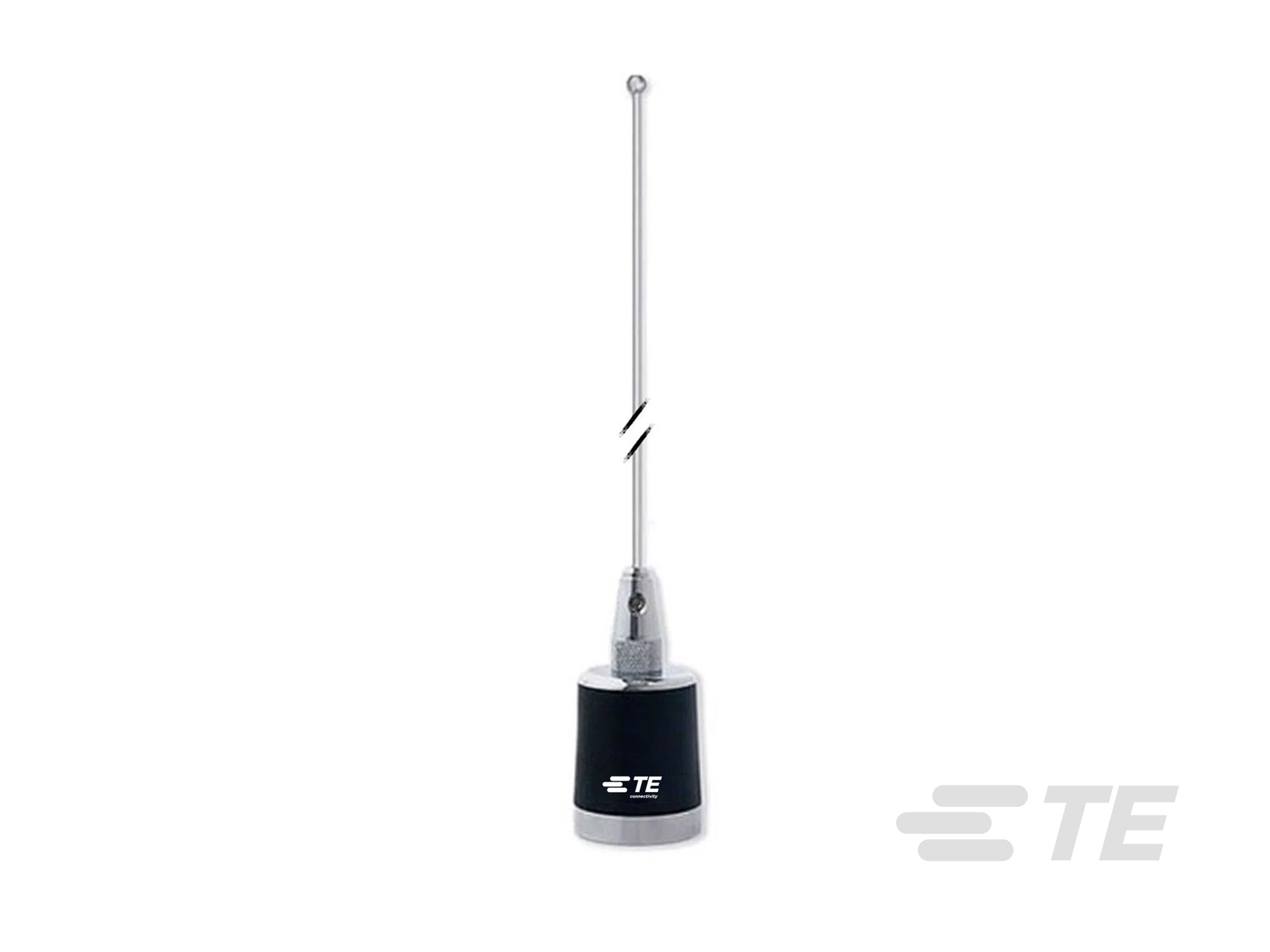

The Laird / Antenex B1323 is a 55 inch long, Chrome, base loaded mobile VHF whip antenna with NMO base. This antenna does require a metal ground plane. It is omnidirectional and offers 3 dBi gain and accepts up to 100-200 watts max power and operates in the 132-174 MHz range.
Laird Technology’s ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.
FEATURES:
- Frequency Range: 132-174 MHz
- Gain: 3 dBi
- Length: 55 inches
- 100% tested on a network analyzer
- FIVE YEAR FACTORY WARRANTY
Documents
Specifications
| SKU | B1323 |
|---|---|
| Manufacturer Part Number | B1323-L |
| Manufacturer | Laird |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 132-174 MHz |
| Gain | 3 dBi |
| Antenna Style | Base Coil Antennas |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 2.0:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 70 |
| Spring Loaded | No |
| Height/Length (inches) | 55 |
| Height/Length (mm) | 1397 |
| Thickness/Diameter (inches) | 1.375 |
| Thickness/Diameter (mm) | 34.93 |
| Operating Temp (celsius) | (-45 to 85) |
| Color | Chrome |
| Connector Type | Connector - Bottom |
| Connector 1 | NMO |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
