K7153236:Shortened half-wave antenna with 440 – 470 MHz and TNC connector
K7153236
Shipping calculated at checkout.
K7153236:Shortened half-wave antenna with 440 – 470 MHz and TNC connector
More InfoDocumentsSpecifications ReviewsShortened half-wave antenna. Decoupled from the radio set. With 440 – 470 MHz and TNC connector. Without joint.
More Information

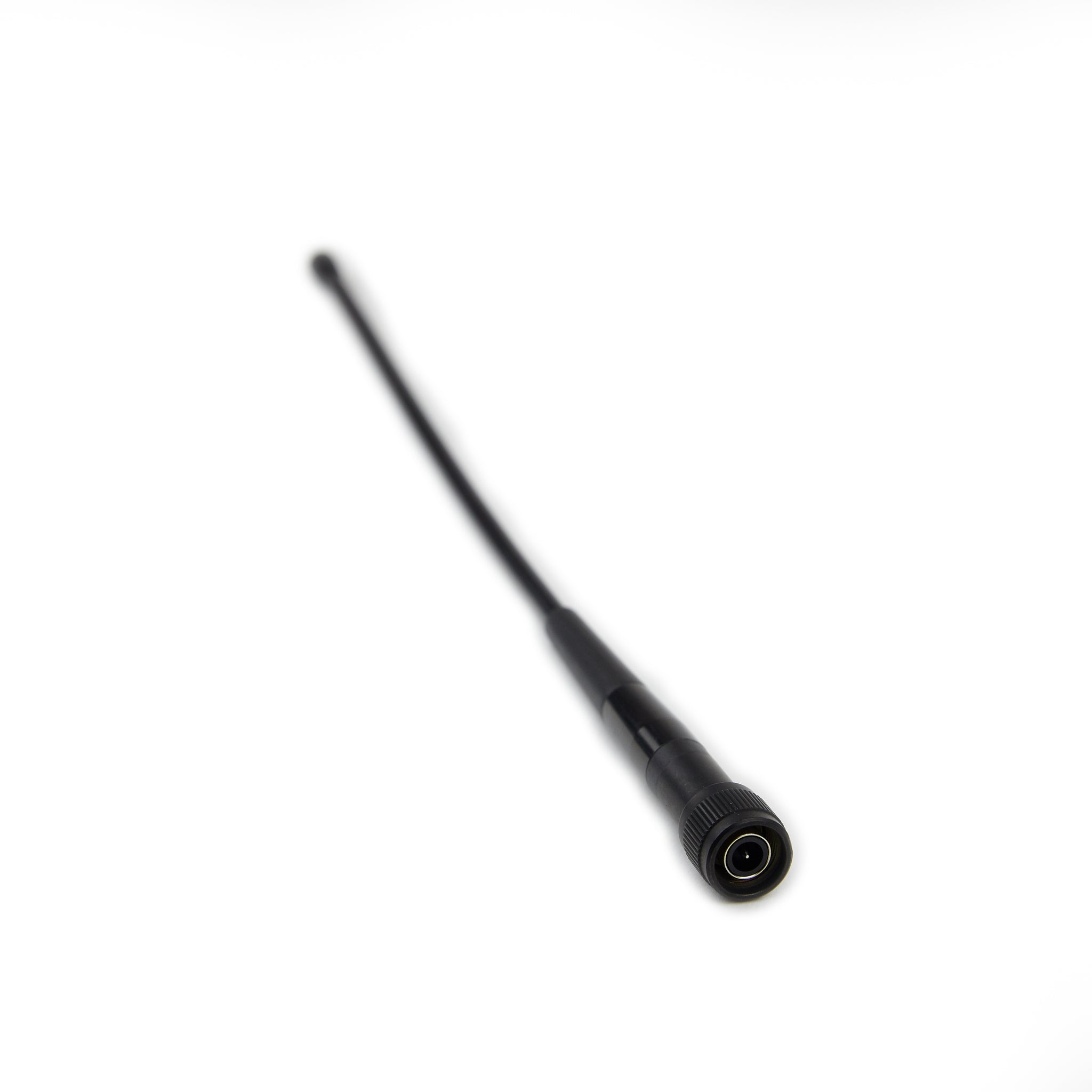

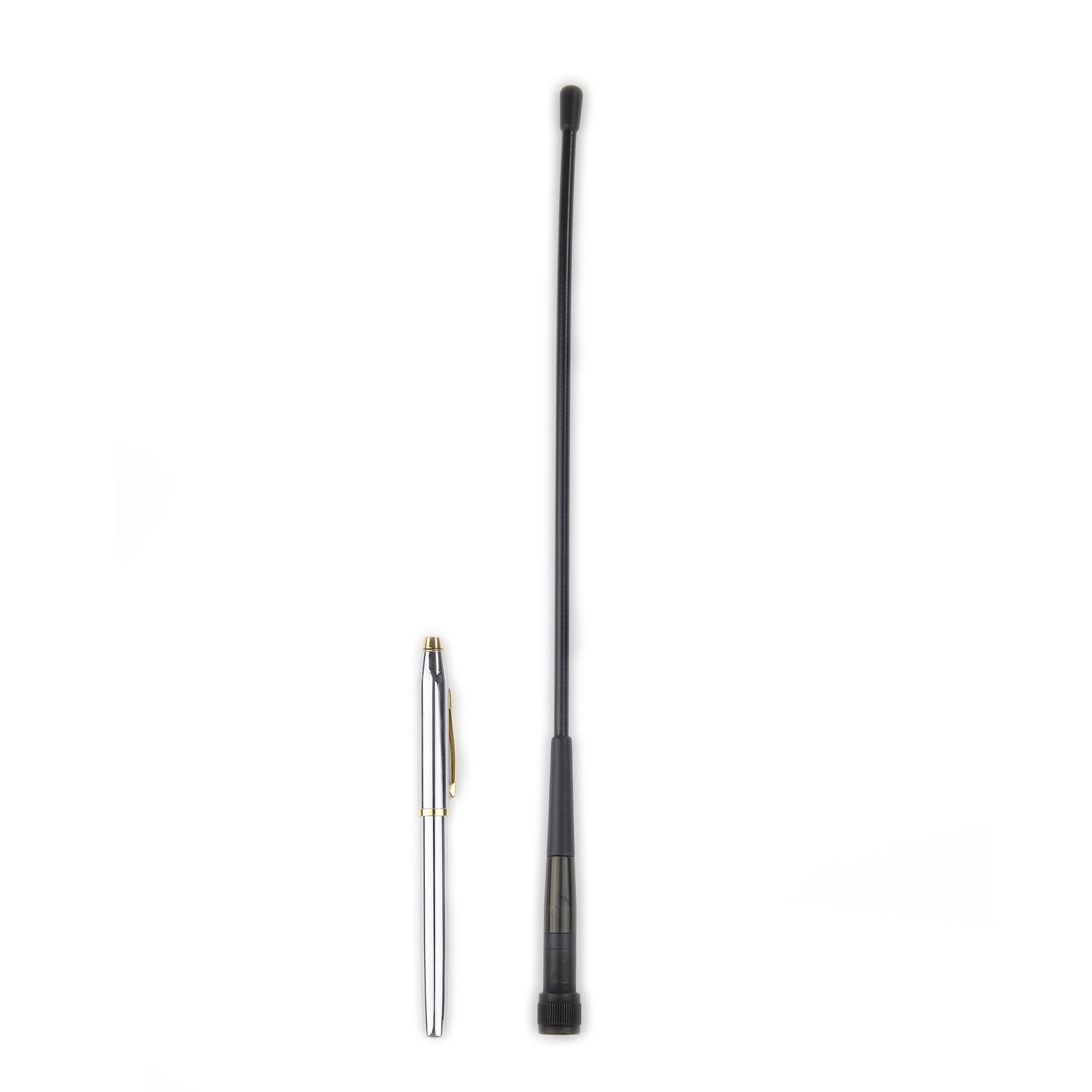

Shortened half-wave antenna. Decoupled from the radio set. With 440 – 470 MHz and TNC connector. Without joint.
Documents

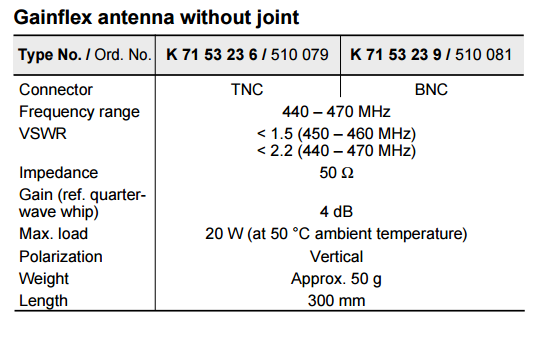

Specifications
| SKU | K7153236 |
|---|---|
| Manufacturer Part Number | K7153236 |
| Manufacturer | Kathrein |
| Antenna Category | UHF (380-600 MHz) |
| Working Frequency | 440 – 470 MHz |
| Gain | 4 dB |
| Antenna Style | Blade/Stubby Antennas |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 20 |
| Height/Length (inches) | 12.9 |
| Height/Length (mm) | 330 |
| Weight (lbs) | 0.11 |
| Weight (grams) | 50 |
| Product Condition | New |
