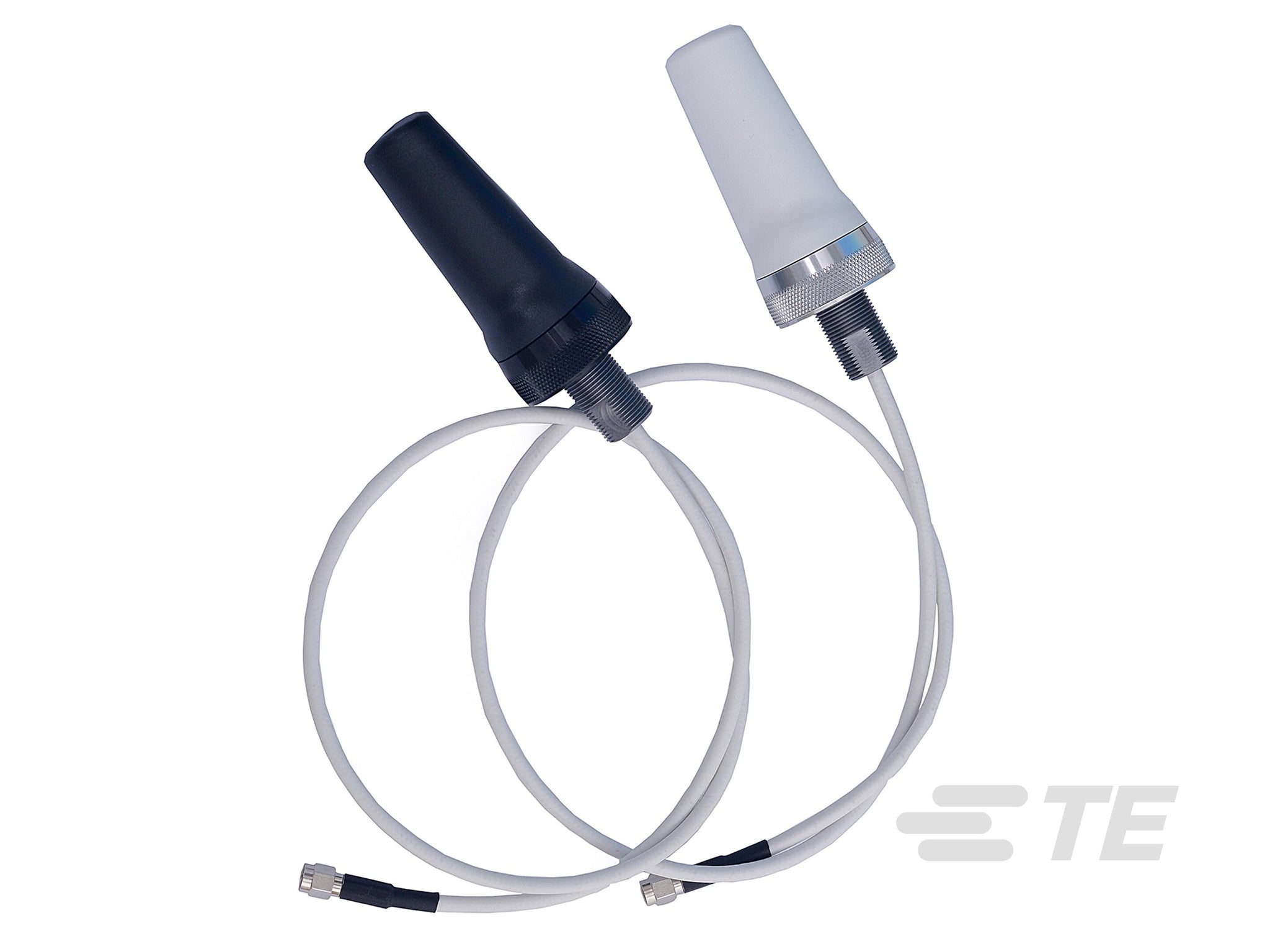

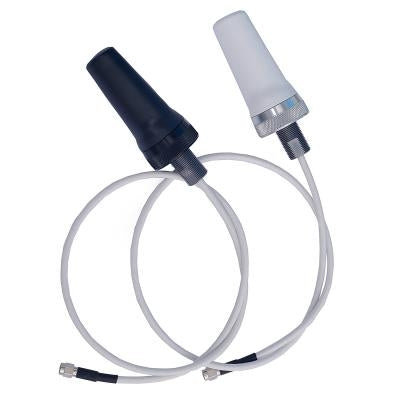

HCF69273WN-60A: Low-profile Omni-directional Indoor and Outdoor Antenna 698-960 MHz/1690-2700 MHz with SMA-Male Connector
HCF69273WN-60A
Shipping calculated at checkout.
HCF69273WN-60A: Low-profile Omni-directional Indoor and Outdoor Antenna 698-960 MHz/1690-2700 MHz with SMA-Male Connector
More InfoSpecifications Reviews
HCF69273WN-60A: Low-profile Omni-directional Indoor and Outdoor Antenna 698-960 MHz/1690-2700 MHz with SMA-Male Connector
***This item is subject to an MOQ of 12 pcs***
More Information
The HCF69273WN-60A from Laird is a low-profile and low visibility antenna. This antenna operates within 698-960 MHz or 1690-2700 MHz frequencies. With an IP67 rating, the HCF69273WN-60A is applicable for indoor and outdoor M2M solutions.
Features:
- Frequencies: 698-960 MHz/1690-2700 MHz
- Gain: 1.5/3.8 dBi
- Polarization: Vertical
- Direction: 360 omnidirectional
- Max Power (W): 10W
- RoHS Compliant

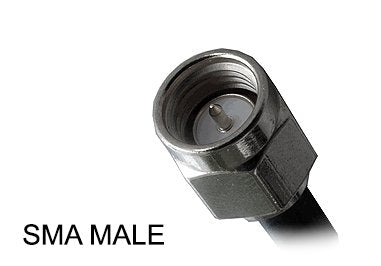

- Connector: SMA-Male
- Color: White
Specifications
| SKU | HCF69273WN60A |
|---|---|
| Manufacturer Part Number | HCF69273WN-60A |
| Manufacturer | Laird |
| Working Frequency | 698-824 |
| Gain | 1.5 |
| Working Frequency 2 | 824-894 |
| Gain 2 | 1.2 |
| Working Frequency 3 | 880-960 |
| Gain 3 | 1.2 |
| Working Frequency 4 | 1690-1880 |
| Gain 4 | 3.3 |
| Working Frequency 5 | 1850-1990 |
| Gain 5 | 3.4 |
| Working Frequency 6 | 1920-2170 |
| Gain 6 | 3.6 |
| Working Frequency 7 | 2300-2500 |
| Gain 7 | 3.5 |
| Working Frequency 8 | 2500-2700 |
| Gain 8 | 3.8 |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | <2.6:1 and <2.0:1 |

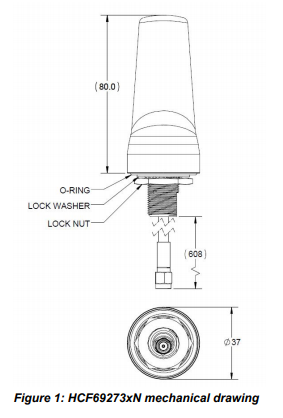

| Height/Length (inches) | 3.2 |
| Height/Length (mm) | 80 |
| Width (inches) | 1.5 |
| Width (mm) | 37 |
| Weight (lbs) | 0.22 |
| Material | PC, Lexan EXL9330, UV Resistant, UL94 V-0 |
| Operating Temp (celsius) | -30 to +70 |
| Color | White |
| Number of Cables | 1 |
| Cable Length (inches) | 24 |
| Cable Length (mm) | 608 |
| IP Rating | IP67 |
| Product Condition | New |
