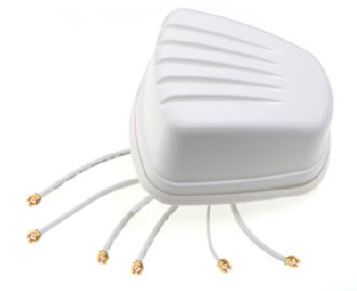

GPSMB602: Panther LTE, WiFi + GPS/GLONASS &17 ft. Cables & SMA-Male Connectors White
GPSMB602
GPSMB602: Panther LTE, WiFi + GPS/GLONASS &17 ft. Cables & SMA-Male Connectors White
More InfoDocumentsSpecifications ReviewsThe Pulse-Larsen GPSMB601 is a versatile six-in-one roof mount vehicular antenna with (1) GPS element + (2) 3G/4G/LTE elements for enhanced cellular MiMo performance, and (3) WiFI/WLAN elements for 802.11. This rugged, low profile antenna is optimized for use with today's high data-rate cellular modems. Use this MAG MOUNT.
More Information
The Pulse-Larsen GPSMB601 is a six-in-one GPS + MiMo 3G/4G/LTE cellular + MiMo WiFi antenna with thru-roof mounting (or optional magnetic mounting kit) This high-performance, aesthetically pleasing six-in-one vehicular antenna solution combines ideal radiation performance for today’s demanding propagation environments with optimum isolation characteristics ensuring highest data rates possible. The GPSMB601 is a versatile antenna for modern technology-equipped vehicles and is well-suited for Police, Ambulance, Fire and public utility vehicles .
Features
- Two ports of 3G/4G/LTE: 698-960/1695-2170/2300-2700/2900-3600 MHz (on RG58 cables)
- One port of GPS / Glonass:1575.42-1609 MHz (on RG174 cable)
- Three ports of WiFi: 2400-2500/4900-5925 MHz

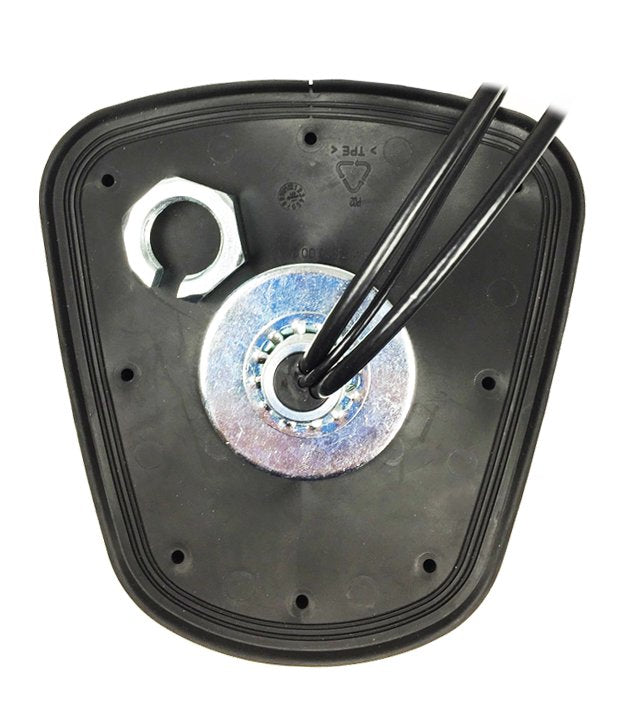

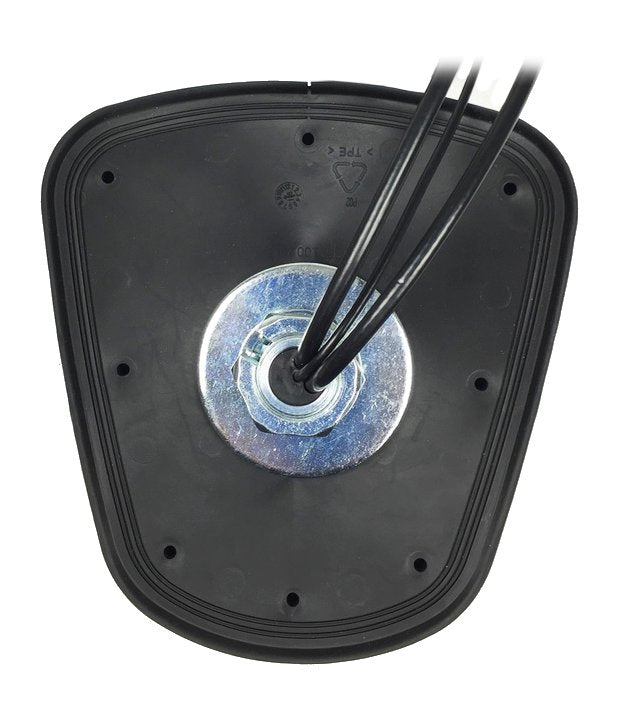

- Direct Mount using stainless steel stud, washer & M22 split nut
- Optional magnetic mount (see part # GPSMBMM
Applications
- Energy / Utility Vehicles (water, electric, gas, cable TV)
- Public Safety / First Responders (Ambulance, Fire, Police)
- Fleet Management & Taxi Cabs
- Location Based Services & Fixed Site Telematics
- USE MAGNETIC MOUNT
Documents
We Also Recommend
Specifications
| SKU | GPSMB602 |
|---|---|
| Manufacturer Part Number | GPSMB602 |
| Manufacturer | Pulse |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 / 1695-2170 MHz |
| Gain | 4 dBi (+/- 2.5) |
| Working Frequency 2 | 2300-2700 / 2900-3600 MHz |
| Gain 2 | 5 dBi (+/- 2) |
| Working Frequency 3 | 2400-2500 MHz |
| Gain 3 | 4.5 dBi (+/- 1.5) |
| Working Frequency 4 | 4900-5900 MHz |
| Gain 4 | 5 dBi (+/- 2) |
| Working Frequency 5 | 1565-1610 MHz (GPS/Glonass) |
| Gain 5 | 31 dBi |
| Antenna Style | Multi Element/Band Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 20 Watts |
| VSWR: < X: 1 | 1.4 - 1.6 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 6.5 in. long |
| Height/Length (mm) | 165 mm long |
| Width (inches) | 6 in. wide |
| Width (mm) | 152 mm wide |
| Thickness/Diameter (inches) | 3 in. thick |
| Thickness/Diameter (mm) | 76 mm thick |
| Weight (lbs) | 2.75 lbs |
| Weight (grams) | 1250 grams |
| Material | ABS Plastic / Polycarbonate |
| Operating Temp (celsius) | MIL-STD 810G -40 +85 C |
| Mount Style | Through hole / direct roof mount -7/8" |
| Color | White |
| Connector Type | Cable - Bottom Entry |
| Number of Cables | 6 |
| Cable Length (inches) | 17 feet / 204 inches |
| Cable Length (mm) | 5.18 meters / 5182 mm |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| Connector 3 | SMA Male |
| Includes | Rubber Gasket, Lock Washer & Split Hex Nut |
| IP Rating | IP67 |
| Vehicular | Yes |
| Accessory 1 | Use With Magnetic Mounting Kit, part # GPSMBMM |
| Product Condition | New |
