GPS & 5G/4G 2-in-1 Antenna for Dual-Pass RF Panasonic or Dell (Gamber or Havis) Dashboard or Windshield Mount.10 ft Cables & TNC. Dual-Pass RF. Adhesive Mount. R2G5A-10STM

  • $80.00
    Unit price per

R2G5A-10STM


371 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
100 $72.00
Lead time for qty above 371:  Ships in 10-12 Weeks

Shipping calculated at checkout.

GPS & 5G/4G 2-in-1 Antenna for Dual-Pass RF Panasonic or Dell (Gamber or Havis) Dashboard or Windshield Mount.10 ft Cables & TNC. Dual-Pass RF. Adhesive Mount. R2G5A-10STM

More InfoDocumentsSpecifications Reviews

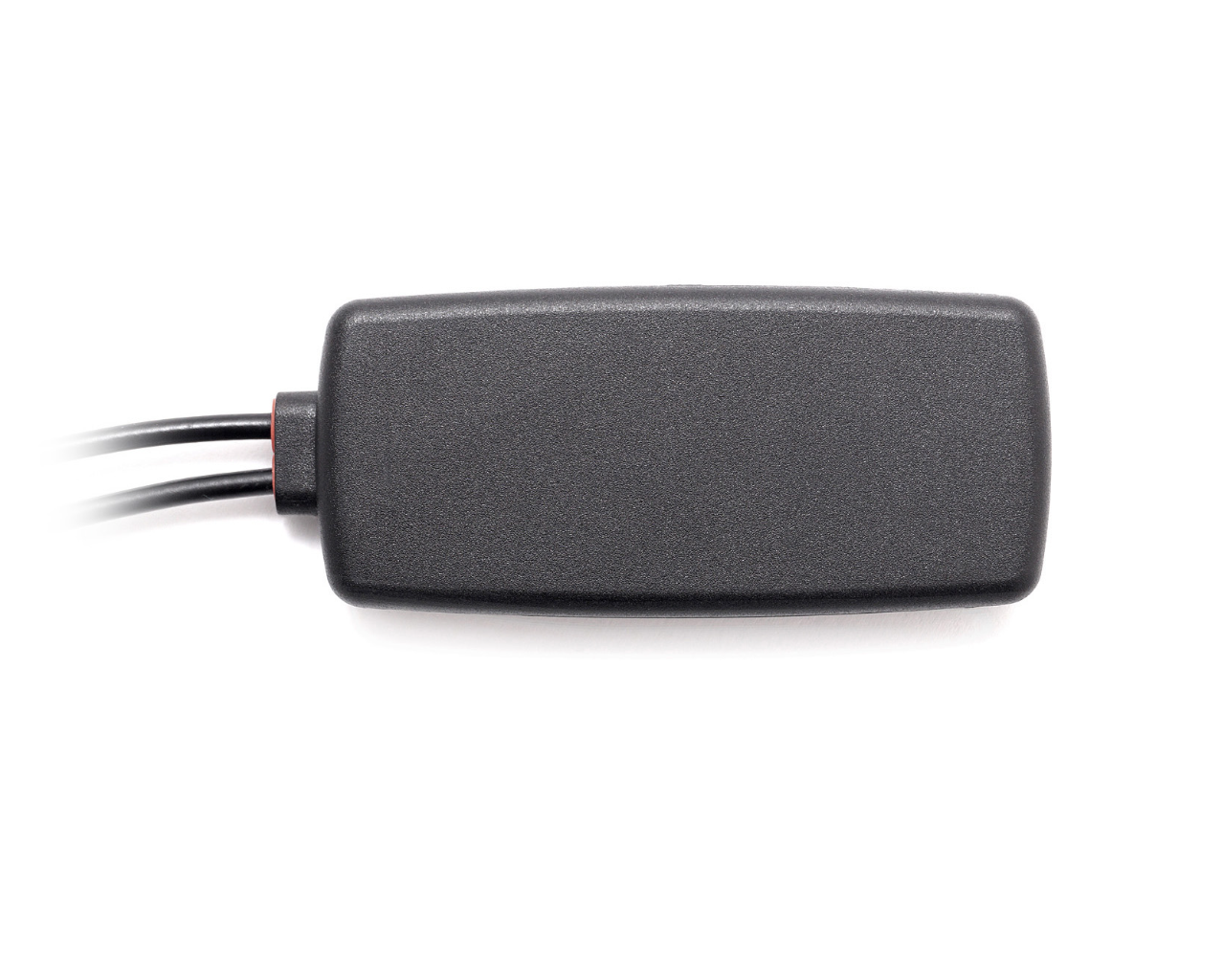

The R2G5A-10STM is a 2-in-1 combination antenna for GPS (active 3.3 or 5 volt) & 3G/4G/LTE/5G. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." Unit mounts using adhesive tape (included) with 10 foot LMR100 cables & TNC male connectors. Perfect for vehicles with Dual-Pass RF is a combination of GPS plus 5G/4G/LTE Cellular for Gamber Johnson or Havis docking stations with Panasonic or Dell computers. Operates at 4G & 5G Cellular : 617-960/1700-2700/3000-6000 MHz & 1575.42 MHz GPS w/26 dB LNA. The antenna has a 10 foot LMR100 cables & TNC male connector and an adhesive tape to mount. This antenna can be mounted on a Velcro strip (Velcro not included). Our customers tell us this outperforms the MA308.A.AB.001 / 931-1140-ND





More Information

  • No Drilling!  Excellent Choice for Leased Vehicles.
  • 5G & 3G/4G/LTE Cellular Frequencies: 617-960, 1700-2700, 3000-6000 MHz
  • Cellular Antenna Gain: 3.3 dBi (2:1 VSWR)
  • GPS Frequency: 1575.42 MHz
  • GPS Antenna: LNA Gain: 26 db
  • Small, Covert Size: L=3.3 x W=1.4 Inches
  • Max Power: 25 Watts
  • Operating Temp: -40 to +85 C

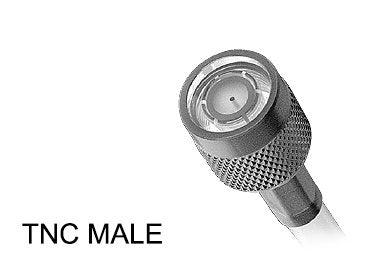

  • Cables/Connectors: (2x) 10 foot LMR-100 with TNC Male

Documents


Specifications

SKU R2G5A10STM
Manufacturer Part Number R2G5A-10STM
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 617-5925 MHz (5G/4G/WiFi)
Gain 3.3 dBi
Working Frequency 2 1575.42 (GPS)
Gain 2 26 dB (LNA Gain)
Antenna Style "Wedge" Multi-Element Antenna
Polarity Linear
Bands Multi
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 25
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (mm) 85
Width (mm) 35
Weight (lbs) .5
Material ABS UV Stable
Operating Temp (celsius) -40 to +85 C
Mount Style Wedge/Adhesive
Color Black
Cable Type LMR-100
Number of Cables 2
Cable Length (inches) 120
Connector 1 TNC-Male
Connector 2 TNC-Male
Includes Direct-Double Side Tape
IP Rating IP67, IP69
Vehicular Yes
Ground Plane Required No
Product Condition New
