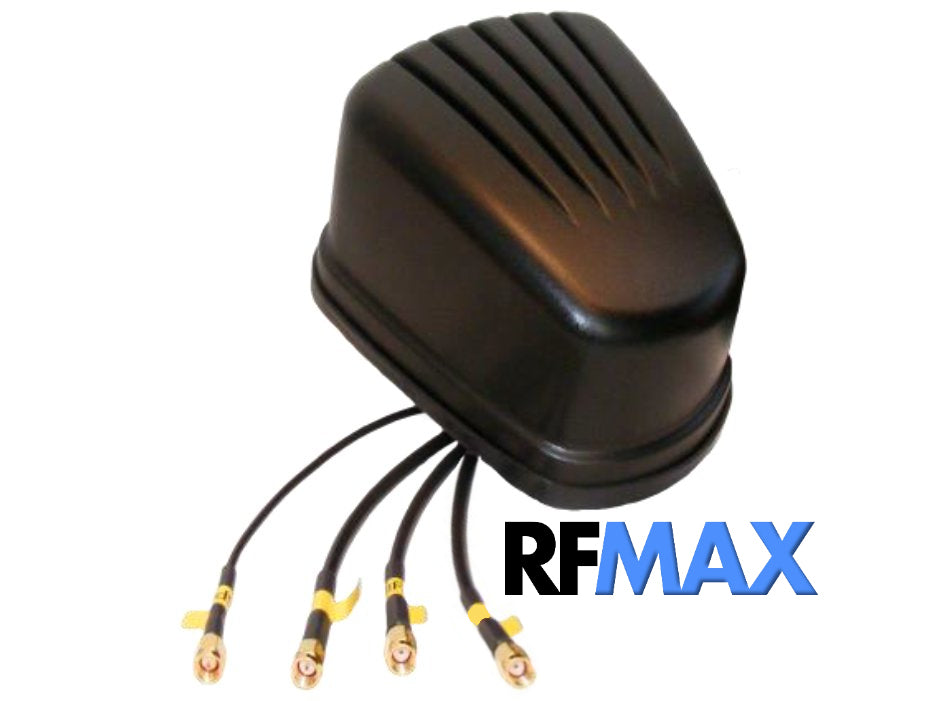

Black 4-in-1 Vehicular Antenna for CalAmp Vanguard 3000, Vanguard 5530, and LMU-5530 | G44W-17-SSSR
G44W-17-SSSR
Black 4-in-1 Vehicular Antenna for CalAmp Vanguard 3000, Vanguard 5530, and LMU-5530 | G44W-17-SSSR
More InfoSpecifications ReviewsThe RFMAX G44W-17-SSSR is a four-in-one GPS + 2 x MiMo 3G/4G/LTE cellular + WiFi antenna with thru-roof mounting (or optional magnetic mounting kit part # G44-HDMM). This high-performance, aesthetically pleasing 4-in-1 vehicular antenna solution combines ideal radiation performance for today’s demanding propagation environments with optimum isolation characteristics ensuring highest data rates possible. The G44W-17-SSSR is a versatile antenna for modern technology-equipped vehicles and is well-suited for Police, Ambulance, Fire and public utility vehicles.
More Information
The RFMAX G44W-17-SSSR is a four-in-one GPS + 2 x MiMo 3G/4G/LTE cellular + WiFi antenna with thru-roof mounting (or optional magnetic mounting kit. This high-performance, aesthetically pleasing 4-in-1 vehicular antenna solution combines ideal radiation performance for today’s demanding propagation environments with optimum isolation characteristics ensuring highest data rates possible. The G44W-17-SSSR is a versatile antenna for modern technology-equipped vehicles and is well-suited for Police, Ambulance, Fire and public utility vehicles.
Features
- SMA Male(LTE and GPS) / SMA-RP Male (WiFi)
- 17ft RG-58 (LTE and WiFi) / RG-174 (GPS)
- Direct Mount using stainless steel stud, washer & M22 split nut
- Optional magnetic mount (see part # G44-HDMM)
Applications
- Energy / Utility Vehicles (water, electric, gas, cable TV)
- Public Safety / First Responders (Ambulance, Fire, Police)
- Fleet Management & Taxi Cabs
- Location Based Services & Fixed Site Telematics
We Also Recommend
Specifications
| SKU | G44W17SSSR |
|---|---|
| Manufacturer Part Number | G44W-17-SSSR |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 / 1695-2170 MHz |
| Gain | 4 dBi (+/- 2.5) |
| Working Frequency 2 | 2300-2700 / 2900-3600 MHz |
| Gain 2 | 5 dBi (+/- 2) |
| Working Frequency 3 | 2400-2500 MHz |
| Gain 3 | 4.5 dBi (+/- 1.5) |
| Working Frequency 4 | 4900-5900 MHz |
| Gain 4 | 5 dBi (+/- 2) |
| Working Frequency 5 | 1561-1602 MHz (GPS/Glonass) |
| Gain 5 | 30 dBi |
| Antenna Style | "Legacy" Multi-Element Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 20 Watts |
| VSWR: < X: 1 | 1.4 - 1.5 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 6.5 in. long |
| Height/Length (mm) | 165 mm long |
| Width (inches) | 6 in. wide |
| Width (mm) | 152 mm wide |
| Thickness/Diameter (inches) | 3 in. thick |
| Thickness/Diameter (mm) | 76 mm thick |
| Weight (lbs) | 3 lbs |
| Weight (grams) | 1340 grams |
| Material | ABS Plastic / Polycarbonate |
| Operating Temp (celsius) | MIL-STD 810G -40/+85° C |
| Mount Style | Through hole / direct roof mount |
| Color | Black |
| Connector Type | Cable - Bottom Entry |
| Cable Type | RG-58/U |
| Number of Cables | 4 |
| Cable Length (inches) | 17 feet / 204 inches |
| Cable Length (mm) | 5.18 meters / 5182 mm |
| Connector 1 | SMA-Male |
| Connector 2 | RP SMA-Male |
| Connector 3 | SMA Male |
| Includes | Rubber Gasket, Lock Washer & Split Hex Nut |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Accessory 1 | Use With Magnetic Mounting Kit, part # G44-HDMM |
| Product Condition | New |
