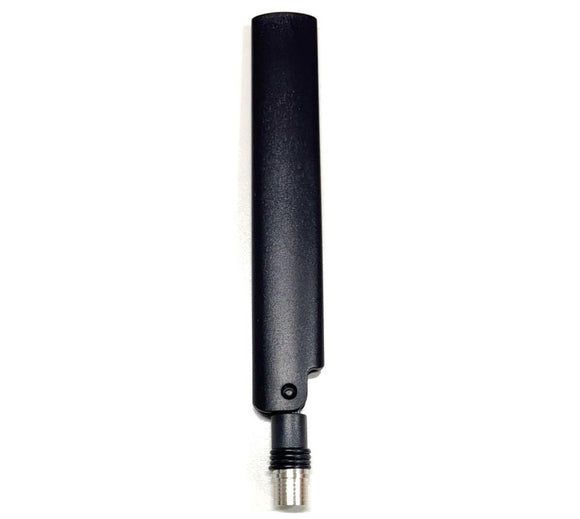

Dual Band WiFi-6E Antenna, 2.4-7.125 GHz, with QMA Connector for APX8500™ Radio | RDAN-24/71-SQM
RDAN-24/71-SQM
Dual Band WiFi-6E Antenna, 2.4-7.125 GHz, with QMA Connector for APX8500™ Radio | RDAN-24/71-SQM
More InfoSpecifications ReviewsThe RFMAX RDAN-24/71-SQM is a sleek, high-performance dual-band WiFi-6E antenna with QMA Male connector designed for easy installation on the Motorola APX8500™ Radio. Supporting 2.4GHz, 5GHz & 7.125 GHz bands, this antenna offers faster speeds and reduced interference for over the air updates and configuration of the APX8500 Radio . With its compact knuckle swivel design and QMA Male connector for an easy plug-and-play setup, the RDAN-24/71-SQM ensures reliable WiFi-6E performance.
More Information
The RFMAX RDAN-24/71-SQM is a sleek, high-performance dual-band WiFi-6E antenna with QMA Male connector designed for easy installation on the Motorola APX8500™ Radio. Supporting both 2.4GHz, 5GHz & 7.125 GHz bands, this antenna offers faster speeds and reduced interference for over the air updates and configuration of the APX8500 Radio . With its compact knuckle swivel design and QMA Male connector for an easy plug-and-play setup, the RDAN-24/71-SQM ensures reliable WiFi-6E performance.
- Dual Band WiFi-6E Support; 2.4/5.0/7.125 GHz
- QMA Male for easy installation with APX8500™ Radio
- Knuckle Swivel Design
- 2-6 dBi Gain
Specifications
| SKU | RDAN2471SQM |
|---|---|
| Manufacturer Part Number | RDAN-24/71-SQM |
| Manufacturer | RFMAX |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 3 dBi |
| Working Frequency 2 | 5150-5850 MHz |
| Gain 2 | 5 dBi |
| Working Frequency 3 | 5925-7125 MHz |
| Gain 3 | 5 dBi |
| Antenna Style | Blade/Stubby Antenna |
| Directional or Omni | Omni Directional |
| Impedance | 50 ohm |
| VSWR: < X: 1 | <2.5:1 |
| Height/Length (inches) | 7 inches (straight position) |
| Height/Length (mm) | 180 |
| Weight (grams) | 18g |
| Operating Temp (celsius) | -40°C to + 75°C |
| Color | Black |
| Connector 1 | QMA Male |
| Product Condition | New |
