***WILL BE OBSOLETED AFTER ALL STOCK IS DEPLETED***DBA6927C1-FSMAM: Dipole Blade omnidirectional Antenna applicable to Cellular, 3G, 4G and WIFI Frequency with SMA Male Connector
DBA6927C1-FSMAM
Shipping calculated at checkout.
***WILL BE OBSOLETED AFTER ALL STOCK IS DEPLETED***DBA6927C1-FSMAM: Dipole Blade omnidirectional Antenna applicable to Cellular, 3G, 4G and WIFI Frequency with SMA Male Connector
More InfoDocumentsSpecifications Reviews

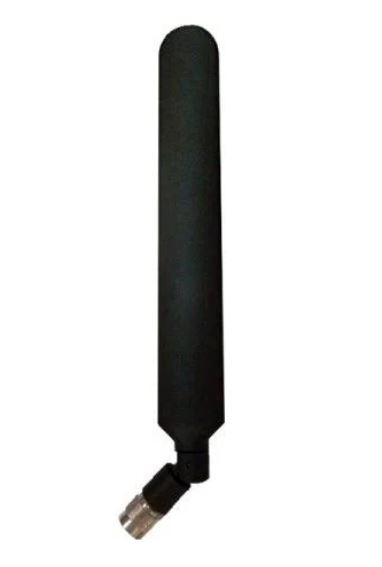

DBA6927C1-FSMAM: Dipole Blade omnidirectional Antenna applicable to Cellular, 3G, 4G and WIFI Frequency with SMA Male Connector. The antenna is provided with an articulating 90 degree arm that can be position to provide optimal coverage for indoor wireless solutions.
More Information
DBA6927C1-FSMAM: Dipole Blade omnidirectional Antenna applicable to Cellular, 3G, 4G and WIFI Frequency with SMA Male Connector. The antenna is provided with an articulating 90 degree arm that can be position to provide optimal coverage for indoor wireless solutions.
Features:
- Frequency (Peak Gain) : 698-960 MHz (0.5 dBi) and 1710-2700 MHz (2.2 dBi)
- VSWR: < 2.5:1
- Max. Input Power: 3 W
- Connector SMA Male
Application:
- Wireless Access Points
- Wireless Routers
- M2M Devices
Documents
Specifications
| SKU | DBA6927C1FSMAM |
|---|---|
| Manufacturer Part Number | DBA6927C1-FSMAM |
| Manufacturer | Laird |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 MHz |
| Gain | 0.5 dBi |
| Working Frequency 2 | 1710-2700 MHz |
| Gain 2 | 2.2 dBi |
| Antenna Style | Blade/Stubby Antennas |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 3 watts |
| VSWR: < X: 1 | 2.5:1 |
| Height/Length (inches) | 9.01 |
| Height/Length (mm) | 229 |
| Width (inches) | 1.2 |
| Width (mm) | 30.5 |
| Thickness/Diameter (inches) | 0.6 |
| Thickness/Diameter (mm) | 15 |
| Weight (lbs) | 0.11 |
| Weight (grams) | 50 |
| Operating Temp (celsius) | -35 to 70 C |
| Connector 1 | SMA-Male |
| Product Condition | New |
