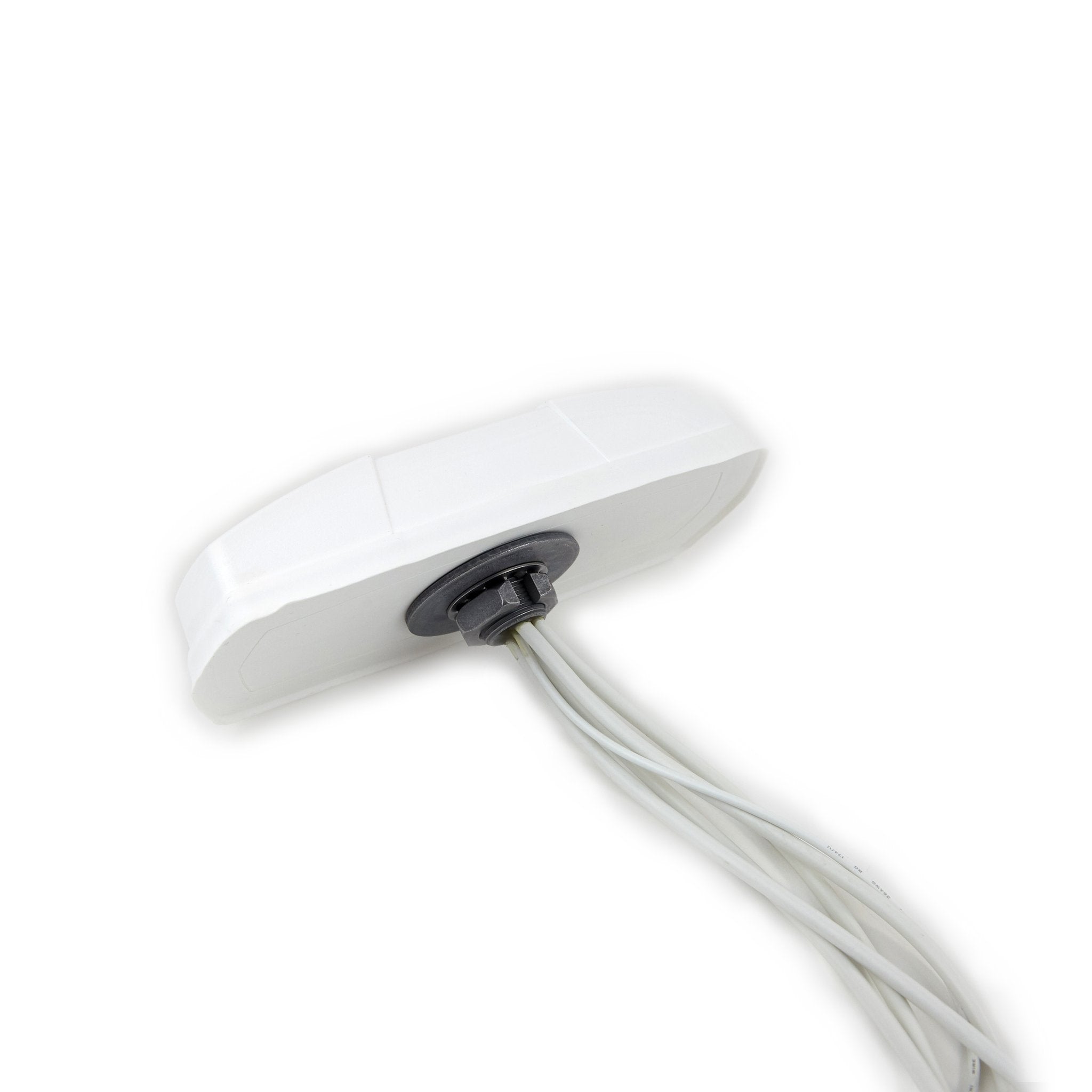

5 in 1 Brick, 2x 5G-FR1/4G LTE leads, 2 foot LMR-100 cable with SMA Plug 2x WiFi leads, 2 foot LMR-100 with RP SMA 1x GPS with 2 feet LMR-100 SMA Plug | RBDM-G55WW-2-SSSRR-W

  • $205.00
    Unit price per

RBDM-G55WW-2-SSSRR-W


+ -
165 Can ship immediately

Shipping calculated at checkout.

5 in 1 Brick, 2x 5G-FR1/4G LTE leads, 2 foot LMR-100 cable with SMA Plug 2x WiFi leads, 2 foot LMR-100 with RP SMA 1x GPS with 2 feet LMR-100 SMA Plug | RBDM-G55WW-2-SSSRR-W

More InfoDocumentsSpecifications Reviews

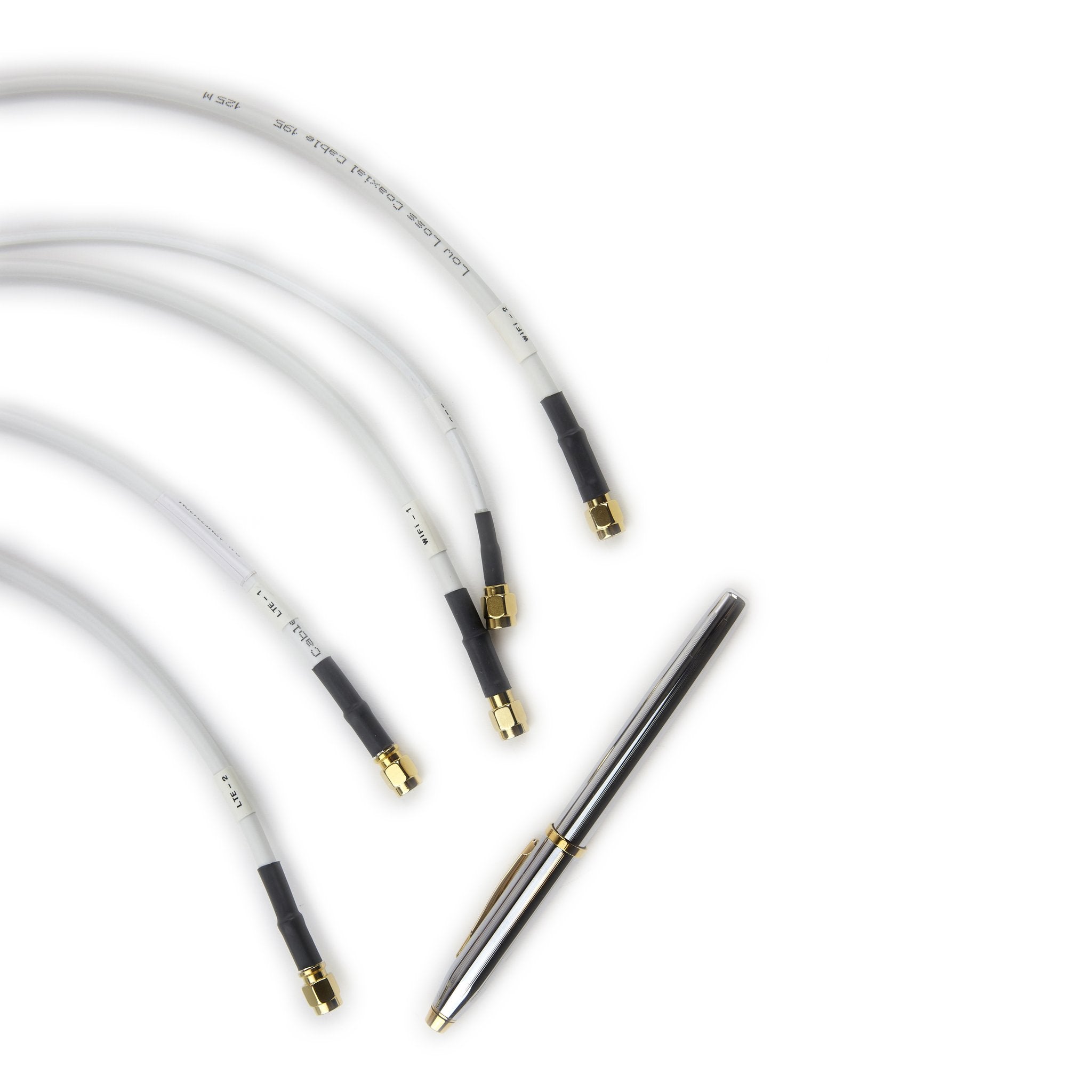

2x2 MIMO 5G-FR1/4G LTE leads, 2 foot LMR-100 cable with SMA Plug 2x WiFi leads, 2 foot LMR-100 with RP SMA 1x GPS with 2 feet LMR-100 SMA Plug



More Information

The best sub-6 antenna 4G/5G on the market today for M2M - machine to machine use.  This unit is ultra-rugged!

  • Sub-6, 5G Ready RFMAX "Brick" Antenna (Covers, 3G, 4G, LTE, 5G, Band 71, CBRS, FirstNet)
  • Size: 7.9 x 3.4 x 1.8 Inches
  • Elements: MiMo 5G (backward compatible to 3G/4G/LTE) MiMo WiFi & GPS/GNSS
  • High Gain at all frequencies for maximum connection speeds
  • Designed for Indoor or Outdoor Installations (IP67 rated)
  • Easy to install, Rugged & 100% Vandal Proof
  • Approved for use with all major carriers: AT&T, Verizon, Sprint
  • Optimized for Cradlepoint, Sierra Wireless, PepWave, Multi-Tech Modems & Routers

Documents


Specifications

SKU RBDMG55WW2SSSRRW
Manufacturer Part Number RBDM-G55WW-2-SSSRR-W
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 617-960 MHz (Cell)
Gain 3.3 dBi
Working Frequency 2 1710-6000 MHz (Cell)
Gain 2 5.2 dBi
Working Frequency 3 2400-2500 MHz (WiFi)
Gain 3 5.4 dBi
Working Frequency 4 5150-5925 MHz (WiFi)
Gain 4 6.3 dBi
Working Frequency 5 1561-1602 MHz GPS/GNSS/Baido
Gain 5 30 dB LNA Gain
Antenna Style "Brick" Multi-Element Antenna
Polarity Linear
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 <2.2:1 (Cell) <2.0:1 (WiFi & GPS)
Horizontal/Azimuth Beamwidth 360
Plenum/Fire Rating UV Stable, UL94 Radome
No Of Elements 5
Height/Length (inches) 7.9
Height/Length (mm) 202
Width (inches) 3.4
Width (mm) 88
Thickness/Diameter (inches) 1.8
Thickness/Diameter (mm) 45
Weight (lbs) 2
Material UV Stable, UL94 Radome
Operating Temp (celsius) -40 to +85 C
Mount Style Direct Mount
Color White
Number of Cables 5
Cable Length (inches) 24
Connector 1 SMA-Male
Connector 2 RP SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
