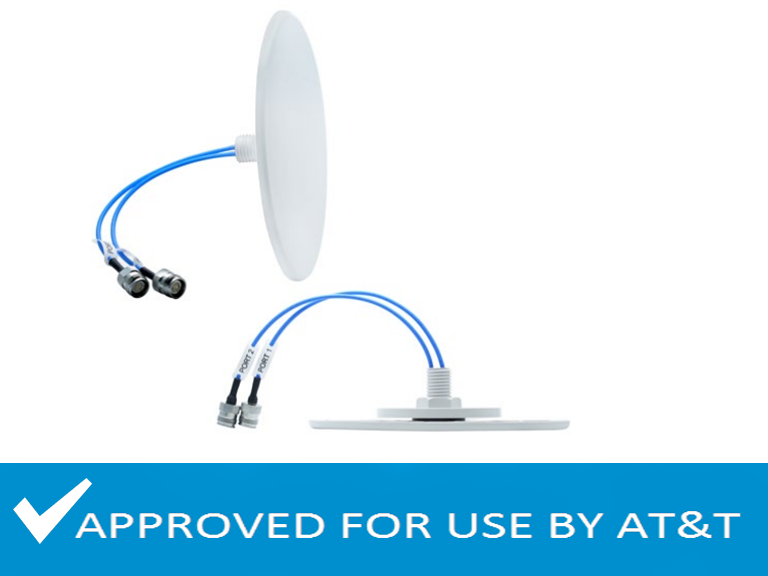

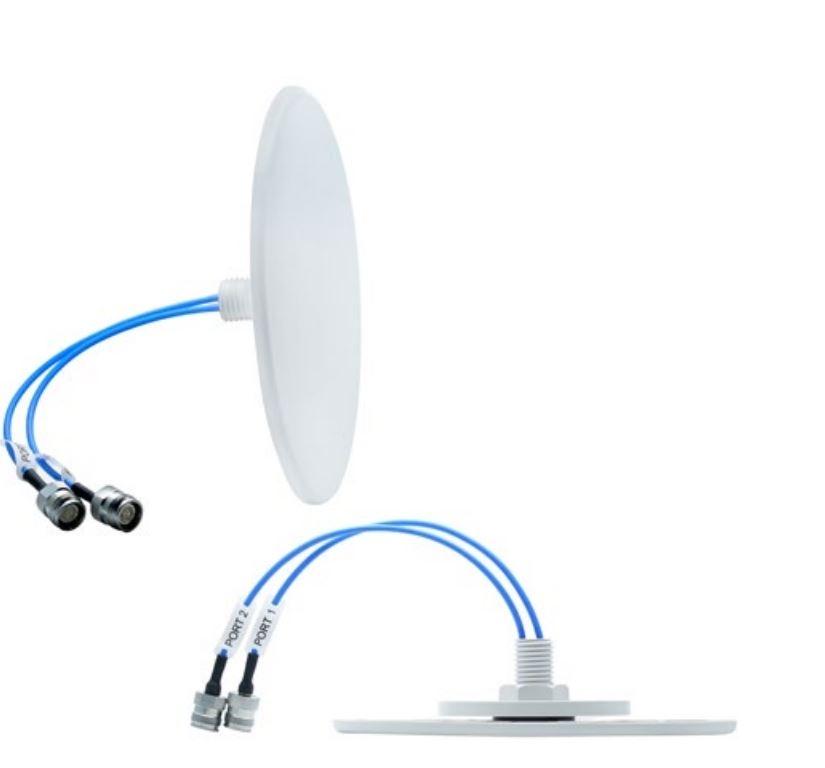

CFD69716P-30NF: Low-PIM, 2-Port MIMO, indoor wideband omnidirectional ceiling mount antennas 698-4200 and 5150-7125 MHz
CFD69716P-30NF
Shipping calculated at checkout.
CFD69716P-30NF: Low-PIM, 2-Port MIMO, indoor wideband omnidirectional ceiling mount antennas 698-4200 and 5150-7125 MHz
More InfoDocumentsSpecifications Reviews
The CFD 5G two-port MIMO DAS antennas series is the latest addition to TE Connectivity Connectivitys extensive DAS
antenna portfolio. They extend the current frequency offering up to 7125 MHz to service more of the available
5G frequency bands. Mounting options include hard and ceiling tile mounting and with or without screw holes
for additional security.
These antennas are applicable for environments where aesthetics and wide-angle coverage are necessary
for successful wireless deployment. Their surprisingly small size and ultra-low-profile enables maximum
mounting flexibility while maintaining desired in-building aesthetics.
CFD 5G series antennas support 698-960, 1350-1550, 1690-4200, and 5150-7125 MHz in an ultra-low-profile
format that is discrete and unobtrusive.
***This item is subject to an MOQ of 6 pcs***
More Information
Low-PIM, 2-Port MIMO, indoor wideband omnidirectional ceiling mount antennas 698-4200 and 5150-7125 MHz
Full coverage Wide frequency coverage
? Performance VSWR ratings of <1.7:1 up to 4200 MHz
? Low PIM Rated to 4200 MHZ with an impressive -162 dBc
? MIMO Two-port MIMO for multipath mitigation
? Versatile Mounting options for ceiling tile or hard ceilings
? Quality Designed and built to exacting specifications
? Peace of mind Backed by our five-year warranty
Documents
Specifications
| SKU | CFD69716P30NF |
|---|---|
| Manufacturer Part Number | CFD69716P-30NF |
| Manufacturer | TE Connectivity |
| Product Condition | New |
