Need help choosing an antenna? Need to design a custom antenna? WE CAN HELP: techsupport@arcadianinc.com

Brass 3/4 Inch Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable with Mini UHF Male Connectors

  • $23.29
    Unit price per

RNMOT-58U-MUM-B-17


+ -
455 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $21.35
25 $20.34
100 $19.70
250 $18.30
Lead time for qty above 455:  Ships in 6-8 Weeks

Shipping calculated at checkout.

Brass 3/4 Inch Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable with Mini UHF Male Connectors

More InfoDocumentsSpecifications Reviews

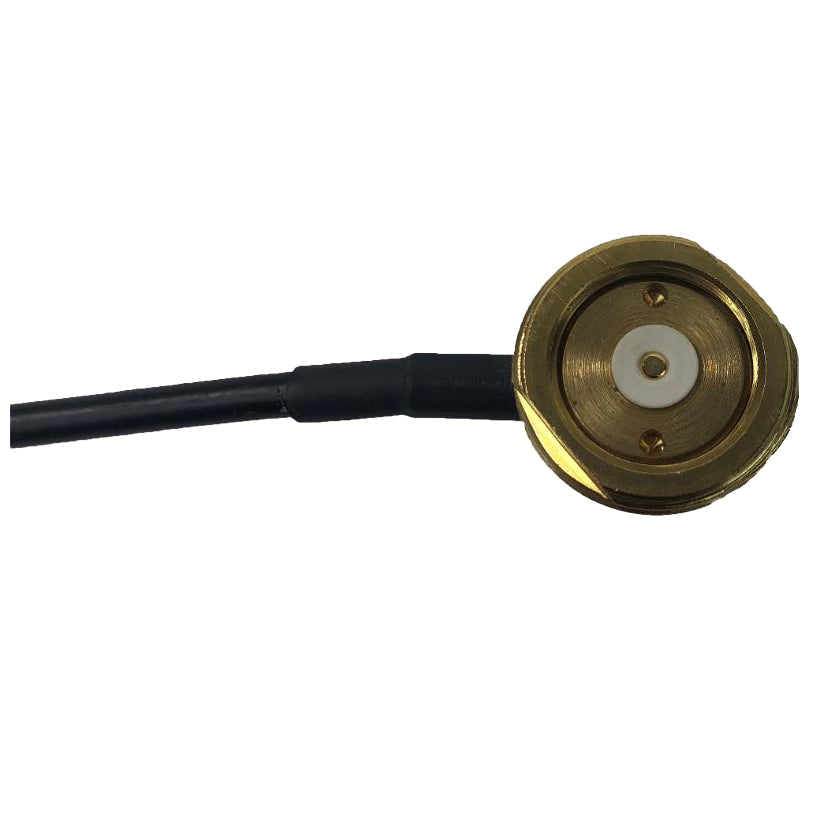

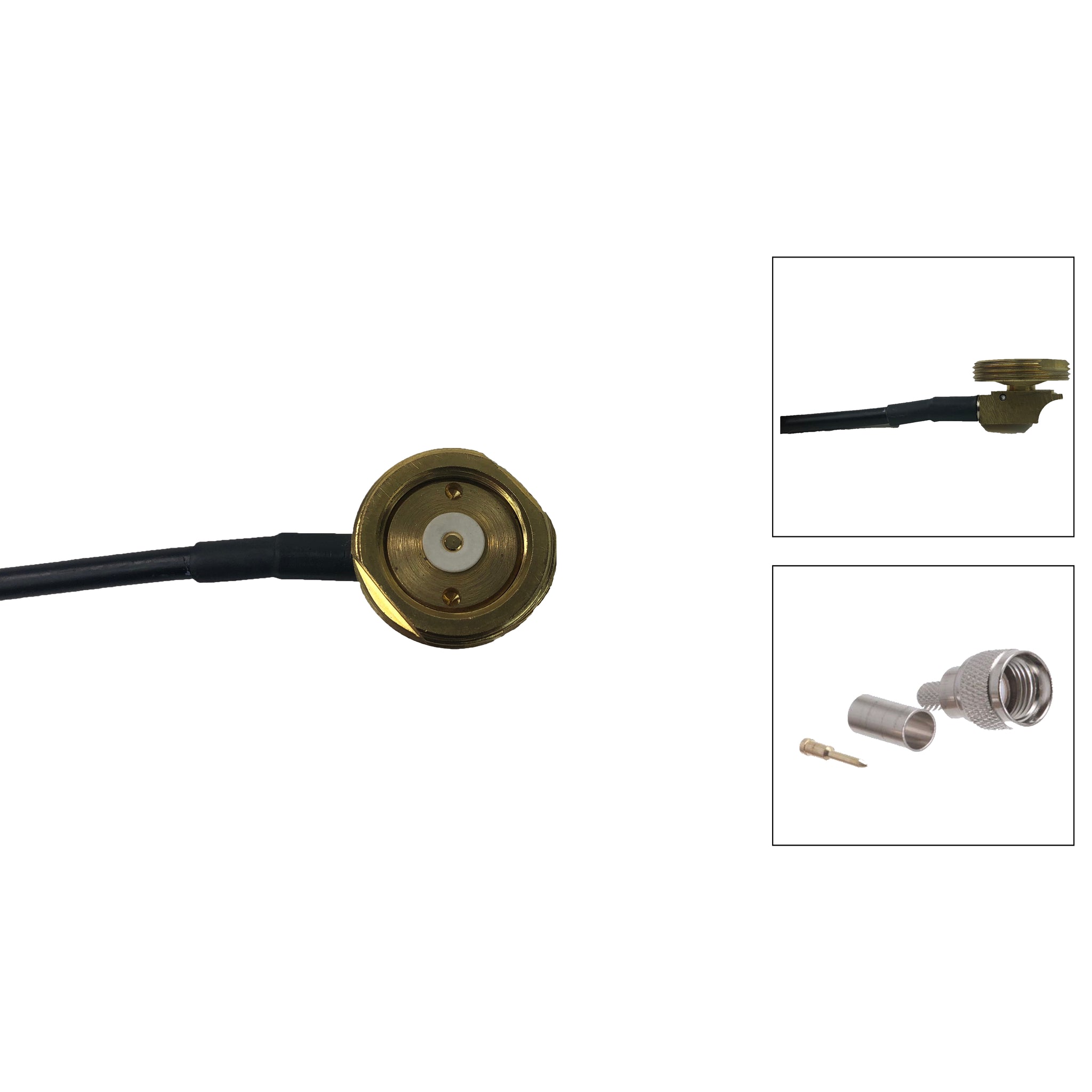

This RFMAX 3/4 inch Thru-Hole NMO Mount is optimized for vehicular roof mounting of an NMO type antenna. Typically used with VHF or UHF antennas, the RNMOT-58U-MUM-B-17 includes a 17 Ft. RG-58/U (Solid Copper Conductor) Cable & Mini UHF Connector, Included but NOT Installed. If you want the RNMOT-58U-MUM-B-17 with the Mini UHF connector INSTALLED, use part # RNMOT-58U-MUM-B-17I.

If this is not the NMO Mount you are looking for, please click here to find all NMO mounts we carry or email customerservice@arcadianinc.com to get to one of our customer service team members.

Please Note: This NMO mount requires a drilled hole, please use part # HS34.



More Information

Brass 3/4 Inch Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable with Mini UHF Male Connectors

FEATURES

  • 3/4 inch Brass Thru-Hole NMO Mount
  • 17 Ft. RG-58/U solid center core Cable

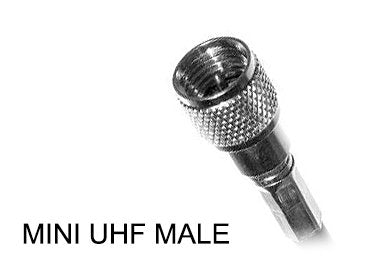

  • Mini UHF Connector Included but NOT Installed*
  • 5 Year Factory Warranty

 *If you want the RNMOT-58U-MUM-B-17 with the Mini UHF connector INSTALLED, use part # RNMOT-58U-MUM-B-17I.

Cable Type Attenuation (dB/100 ft)
  150 MHZ 450 MHZ 900 MHZ
RG-58/U 5.40 10.20 16.10
RG-58A/U 6.20 12.50 20.00
RG8X 3.60 6.80 10.70
Solid Teflon Cable 4.80 9.00 13.50

Documents


Specifications

SKU RNMOT58UMUMB17
Manufacturer Part Number RNMOT-58U-MUM-B-17
Manufacturer RFMAX
Antenna Style Mounts and Brackets
NMO Mount Type Thru Hole NMO mount
Mount Style 3/4 Thru-Hole NMO Mount
Connector 1 Mini UHF Male/ Mini-PL259/ MPL
Cable Length (Mounts) 17 Feet
Cable Type RG-58/U
Cable Length (inches) 204
Cable Length (mm) 5181.6
Weight (lbs) 0.5
Weight (grams) 227.27
Used for Roof Thickness Up to 1/8 inch
Color Brass
Vehicular Yes
OK for Outdoor Use Yes
Product Condition New
