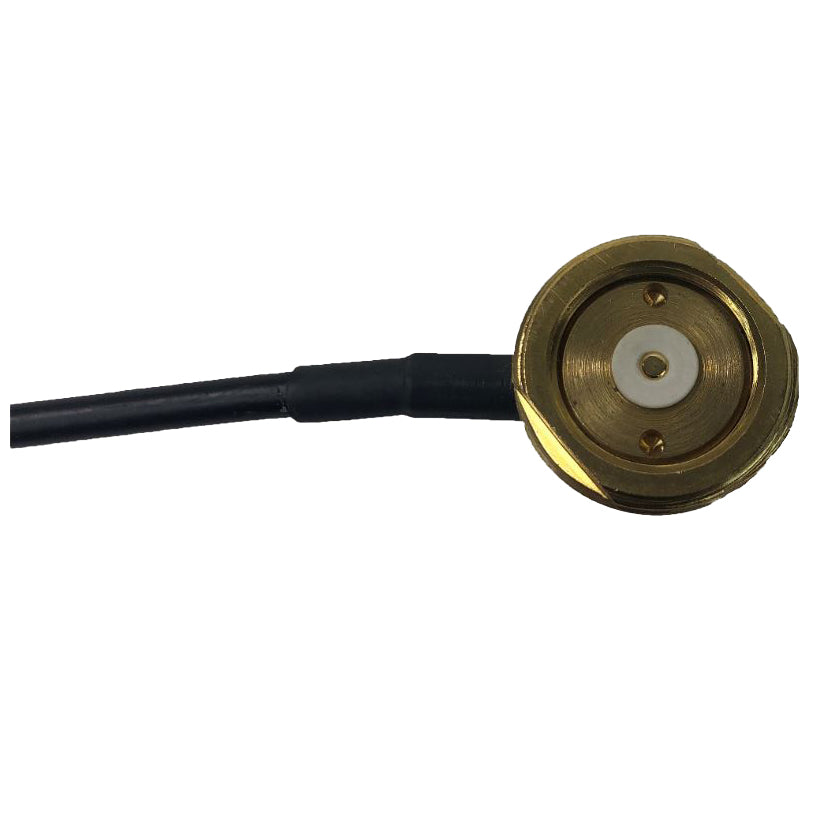

Brass 3/4 Inch Thru Hole NMO Mount with 17 Ft of RG-58U Cable and UHF Male (PL-259) Connectors
RNMOT-58U-SUM-B-17
Shipping calculated at checkout.
Brass 3/4 Inch Thru Hole NMO Mount with 17 Ft of RG-58U Cable and UHF Male (PL-259) Connectors
More InfoDocumentsSpecifications ReviewsThis RFMAX 3/4 Inch Thru-Hole NMO Mount is optimized for vehicular roof mounting of an NMO type antenna. Typically used with VHF or UHF antennas, the RNMOT-58U-SUM-B-17 includes a 17 Ft. RG-58/U (Solid Copper Conductor) Cable & UHF Male (PL 259) connector included.
If this is not the NMO Mount you are looking for, please click here to find all NMO mounts we carry or email customerservice@arcadianinc.com to get to one of our customer service team members.
Please Note: This NMO mount requires a drilled hole, please use part # HS34.
More Information
Brass 3/4 inch Thru hole NMO mount with 17 Ft of RG-58U cable and UHF Male (PL-259) Connectors
FEATURES
- 3/4 Thru-Hole NMO Mount
- 17 Ft. RG-58/U Cable

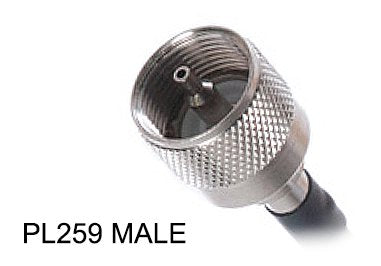

- UHF Male (PL 259) Connector Included
- 5 Year Factory Warranty

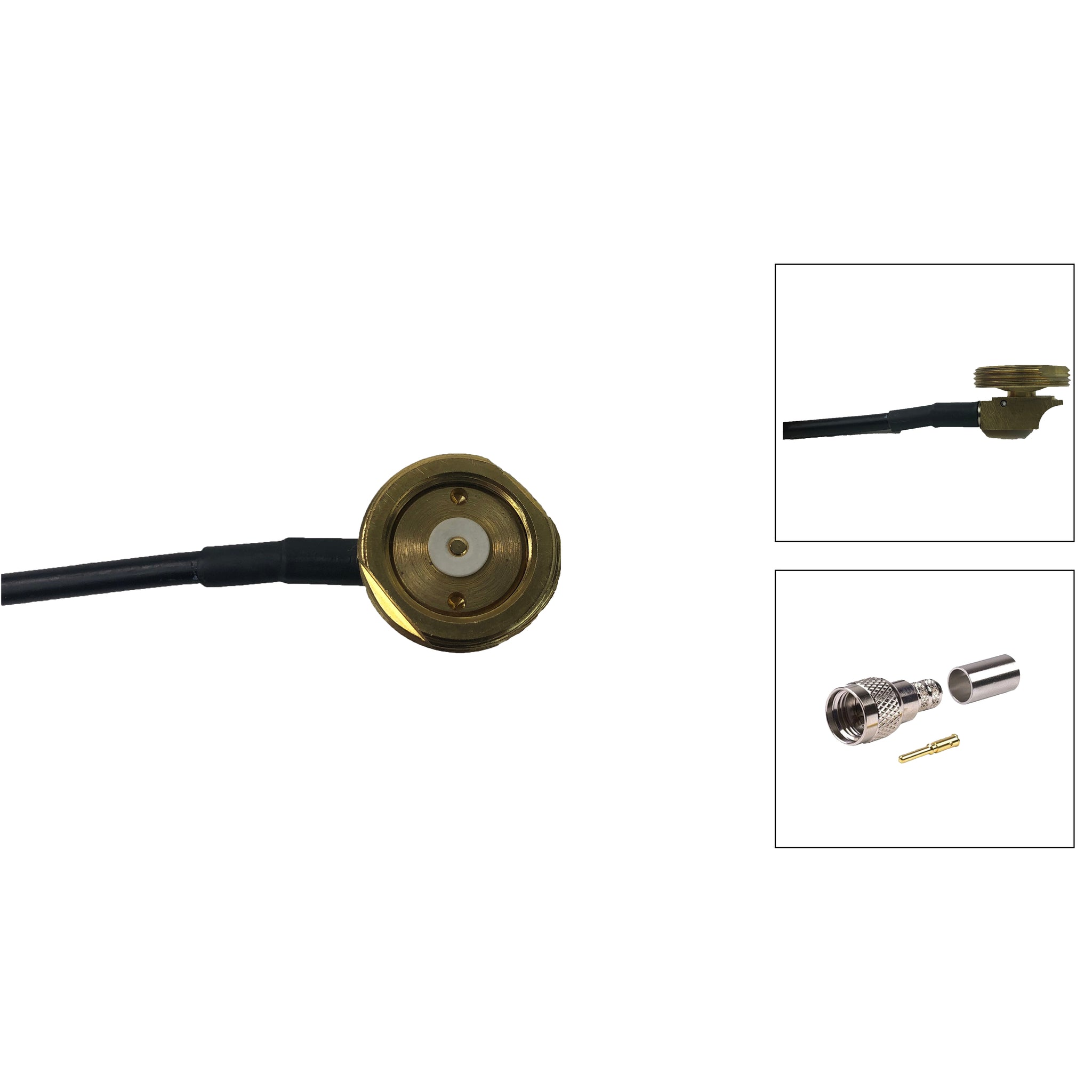

*If you want the RNMOT-58U-SUM-B-17 with the Mini UHF connector INSTALLED, use part # RNMOT-58U-SUM-B-17I.
| Cable Type | Attenuation (dB/100 ft) | ||
| 150 MHZ | 450 MHZ | 900 MHZ | |
| RG-58/U | 5.40 | 10.20 | 16.10 |
| RG-58A/U | 6.20 | 12.50 | 20.00 |
| RG8X | 3.60 | 6.80 | 10.70 |
| Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
Documents
Specifications
| SKU | RNMOT58USUMB17 |
|---|---|
| Manufacturer Part Number | RNMOT-58U-SUM-B-17 |
| Manufacturer | RFMAX |
| Antenna Style | Mounts and Brackets |
| NMO Mount Type | Thru Hole NMO mount |
| Mount Style | 3/4 Thru-Hole NMO Mount |
| Connector 1 | UHF Male/ PL-259/ UHF Plug |
| Cable Length (Mounts) | 17 Feet |
| Cable Type | RG-58/U |
| Cable Length (inches) | 204 |
| Cable Length (mm) | 5181.6 |
| Weight (lbs) | 0.5 |
| Weight (grams) | 227.27 |
| Used for Roof Thickness | Up to 1/8 inch |
| Color | Brass |
| Vehicular | Yes |
| OK for Outdoor Use | Yes |
| Product Condition | New |
