BMLPVMB/LTE: PCTEL/Maxrad Low Profile BMLPV Antenna, 698-2700 MHz, 3 dBi, Black, NMO Connector - Ground Plane Required

  • Regular price $62.08 Sale price $40.24
    Unit price per

BMLPVMB/LTE


+ -
140 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $38.80
25 $37.46
100 $36.21
250 $34.49
500 $32.43
1000 $31.05
2500 $30.18
Lead time for qty above 140:  Ships in 8-10 Weeks

Shipping calculated at checkout.

BMLPVMB/LTE: PCTEL/Maxrad Low Profile BMLPV Antenna, 698-2700 MHz, 3 dBi, Black, NMO Connector - Ground Plane Required

More InfoDocumentsSpecifications Reviews

The BMLPVMB/LTE covers 698-2700 MHz frequency range with an average gain of 3 dBi. This NMO mount antenna is required to be mounted on a metallic ground plane. Applications requiring minimum visibility.

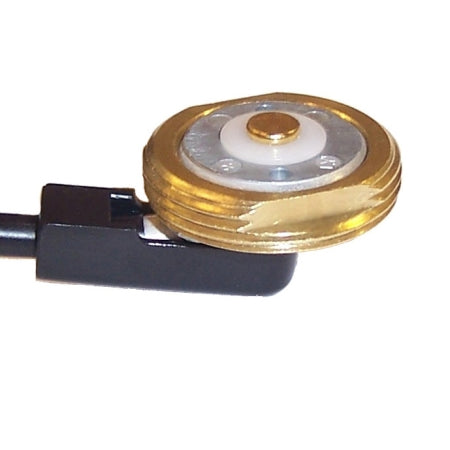

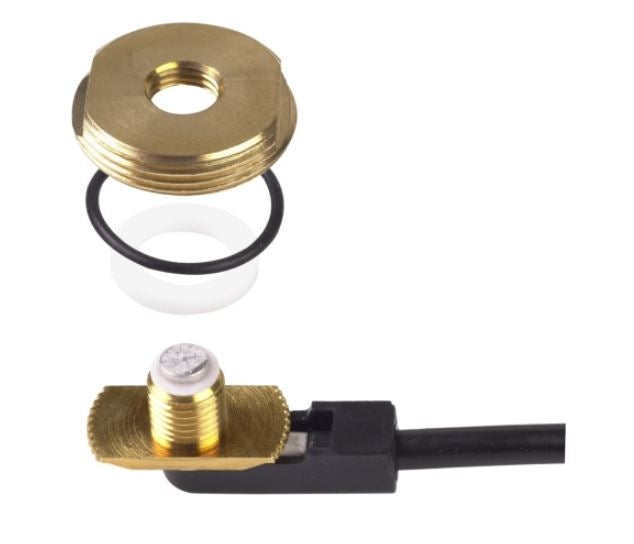

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The BMLPVMB/LTE covers 698-2700 MHz frequency range with an average gain of 3 dBi. This antenna is required to be mounted on a metallic ground plane. Applications requiring minimum visibility.

Features:

  • The BLPV antennas feature an attractive, compact package and are ideal for indoor or outdoor.
  • Excellent pattern coverage for mobile and base station applications.
  • Compatible with all 3/4 in hole mounts for easier installation.
  • No tuning required. Allows faster, more reliable installations.

Documents


Specifications

SKU BMLPVMBLTE
Manufacturer Part Number BMLPVMB/LTE
Manufacturer PCTEL
Antenna Category 4G/LTE (698-2700 MHz)
Working Frequency 698-2700 MHz
Gain 3 dBi
Antenna Style Low Profile Antenna
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Max Input Power (W) 150
VSWR: < X: 1 < 2.0:1
Height/Length (inches) 2.4
Height/Length (mm) 60.96
Thickness/Diameter (inches) 1.4
Thickness/Diameter (mm) 35.56
Weight (lbs) 0.29
Operating Temp (celsius) -40°C to +70°C
Mount Style Permanent
Color Black
Connector 1 NMO
IP Rating IP66
Vehicular Yes
Product Condition New
