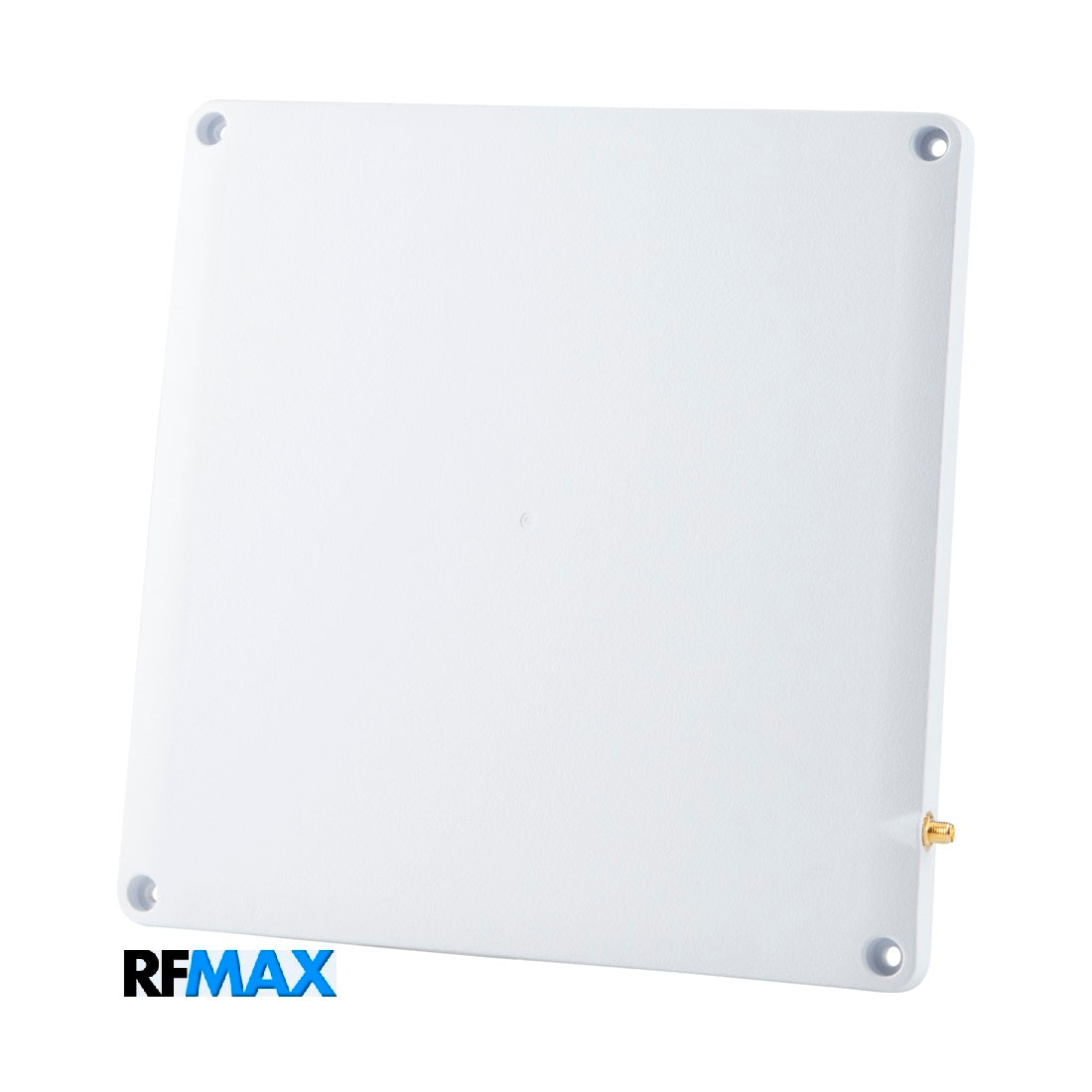

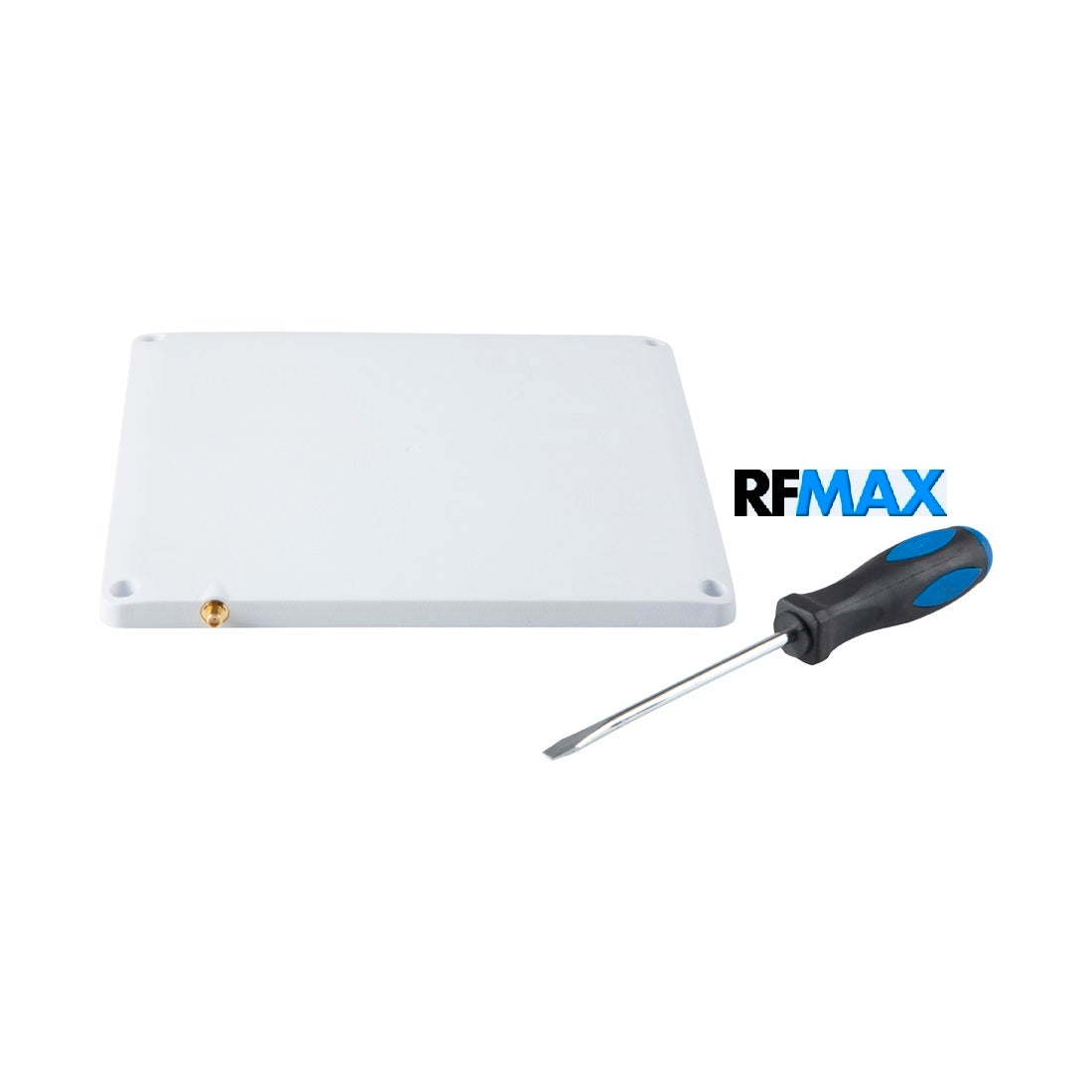

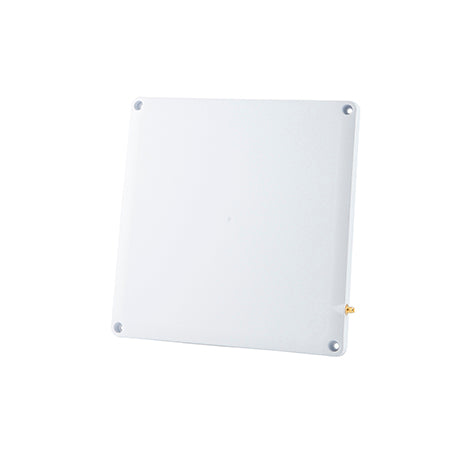

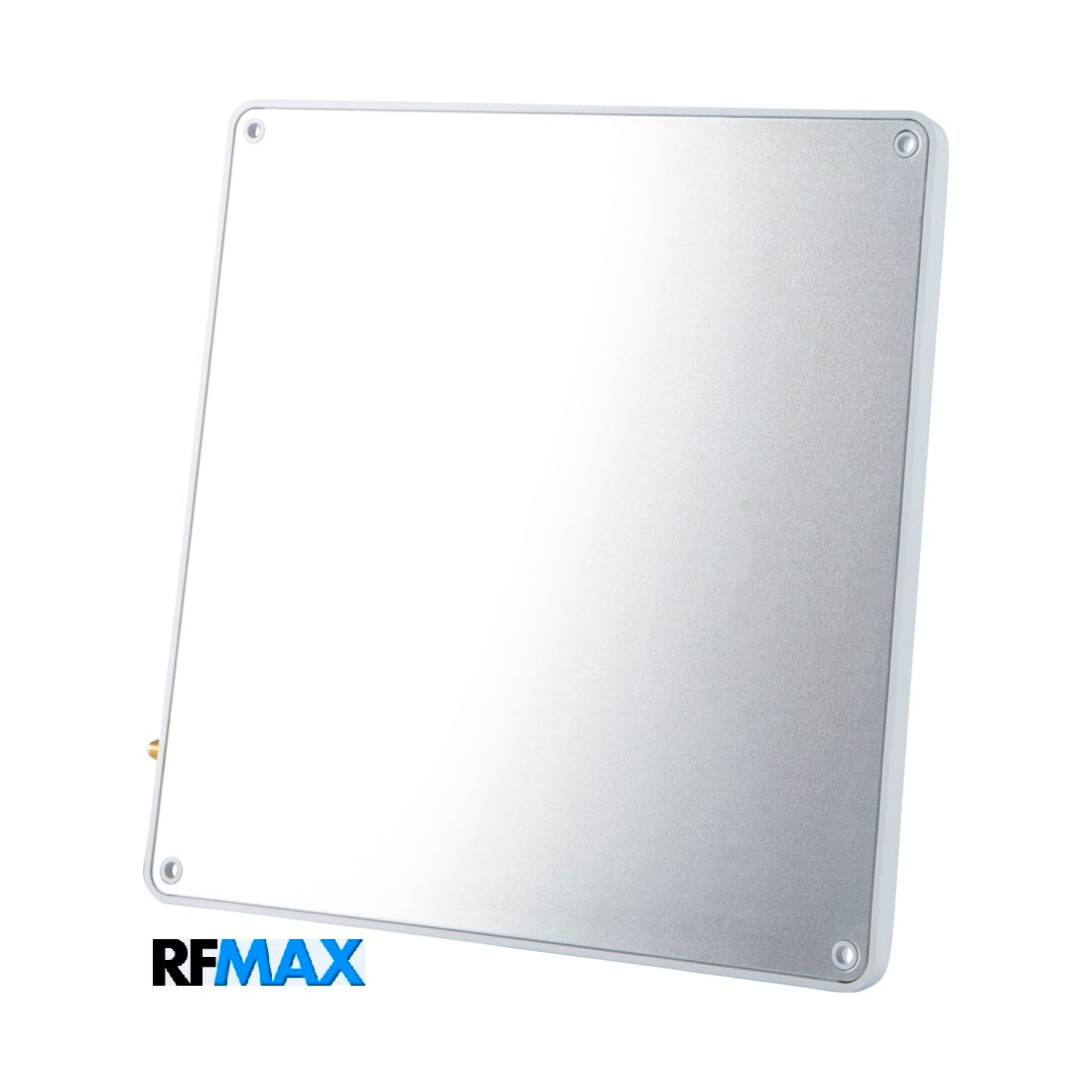

Zebra AN510-CFCL60001US & Impinj IPJ-A1100-USA Equivalent RFID Antenna. Low profile 10x10 Inch Flush Mount | R9028-LPF-SSF

  • $180.21
    Unit price per

R9028-LPF-SSF


+ -
537 Can ship immediately
Lead time for qty above 537:  Ships in 4-6 Weeks

Shipping calculated at checkout.

Zebra AN510-CFCL60001US & Impinj IPJ-A1100-USA Equivalent RFID Antenna. Low profile 10x10 Inch Flush Mount | R9028-LPF-SSF

More InfoDocumentsSpecifications Reviews

  • Equivalent to Zebra RFID antenna AN510-CFCL60001US
  • Equivalent to Impinj RFID antenna IPJ-A1100-USA
  • Volume Discounts for RFID System Integrators
  • Circularly Polarized FCC RFID Antenna tuned for 902-928 Mhz
  • 10x10 inches. 8.5 dBic gain. Far Field 68 x 68 degrees beamwidth

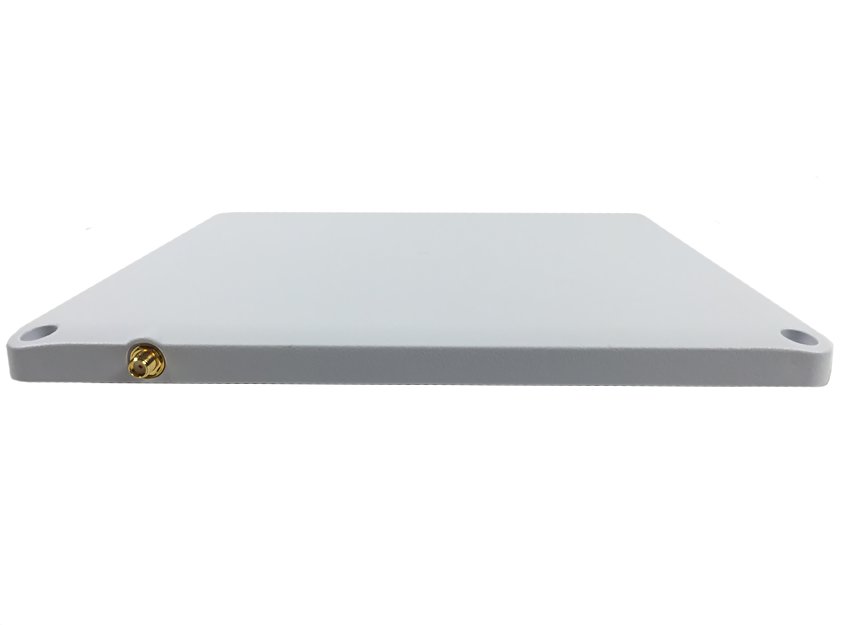

  • IP67 rated for indoor or outdoor use. Low Profile-Flush mounting
  • Tested with Zebra fixed RFID readers FX9600, FX7500, FXR90
  • Tested with Impinj fixed RFID readers R720, R420, R700, R220


More Information


Documents


Specifications

SKU R9028LPFSSF
Manufacturer Part Number R9028-LPF-SSF
Manufacturer RFMAX
Working Frequency 902-928 MHz
Antenna Category RFID (865-928 MHz)
IP Rating IP67
Polarity Right Hand Circular
Gain 8.5 dBiC
Horizontal/Azimuth Beamwidth 68
Vertical/Elevation Beamwidth 68
Connector Type Connector - Bottom Entry SMA Female
Connector 1 SMA-Female
Height/Length (inches) 9.85
Height/Length (mm) 250
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.55
Thickness/Diameter (mm) 14
Width (inches) 9.85
Width (mm) 250
Weight (lbs) 1.6
Weight (grams) 750
Material UV-Resistant ABS
Mount Style Flush-4 corner mounting holes
Includes Does NOT include mounting screws
Product Condition New
