AN2030: 3 Inch Dual-Band Omni Antenna for VC5090 & VH10. 2.4-2.5 & 4.9-5.8 GHz WiFi

AN2030
232 Can ship immediately
Lead time for qty above 232:  Ships in 1-2 Days
Shipping calculated at checkout.
AN2030: 3 Inch Dual-Band Omni Antenna for VC5090 & VH10. 2.4-2.5 & 4.9-5.8 GHz WiFi
AN2030: 3 Inch Dual-Band Omni Antenna for VC5090 & VH10. 2.4-2.5 & 4.9-5.8 GHz WiFi
AN2030: 3 Inch Dual-Band Omni Antenna for VC5090 & VH10. 2.4-2.5 & 4.9-5.8 GHz WiFi

AN2030: 3 Inch Dual-Band Omni Antenna for VC5090 & VH10. 2.4-2.5 & 4.9-5.8 GHz WiFi

More InfoSpecifications Reviews

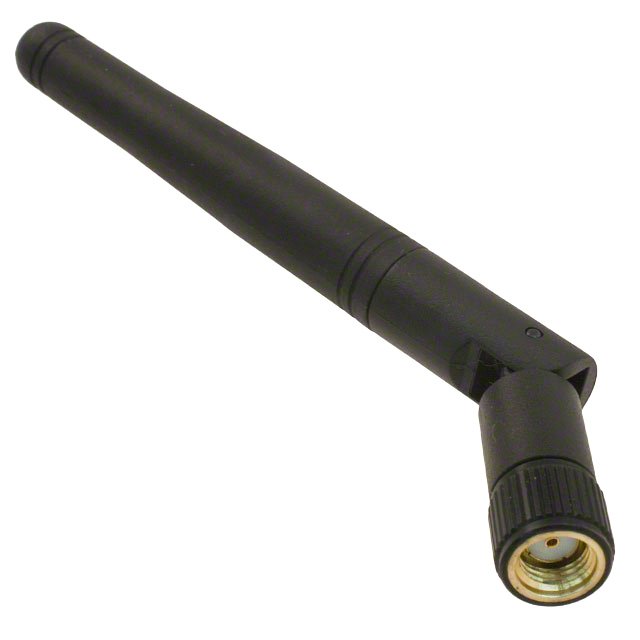

AN2030. 3 Inch Dual-Band Omni Antenna for Motorola Zebra Psion VC5090 & VH10. WiFi antenna with Elbow - 2.4-2.5 & 4.9-5.8 GHz and RP-SMA connector.

More Information

The An2030 is an external antenna optimized for use with the Motorola Zebra Psion VC5090 & VH10 mobile computers.  The antennas feature flexible elements and many are use a coaxial dipole design for reduced ground dependence and improved performance.

FEATURES

• Conformance to European RoHS Directive 2002/95/EC (with SMRP)
• Omnidirectional patterns at all frequencies with increased gain in upper bands for optimal coverage

MARKETS

• Covers 2.4 to 2.5 GHz for 802.11b, and 4.9 to 6 GHz for 802.11a and all U.S., European, and Japanese WLAN applications

We Also Recommend

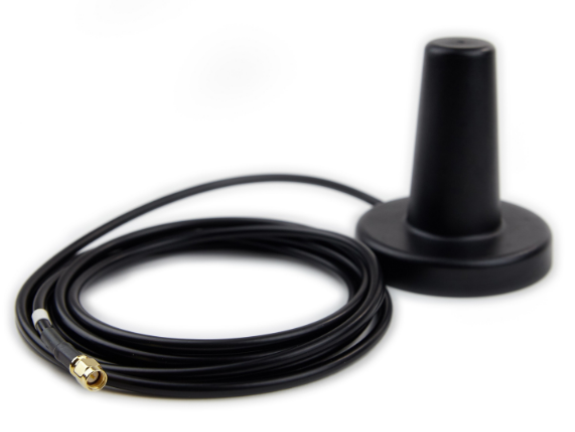

Antenna For Zebra Symbol VC5090 or VC10 Vehicle Mounted Computer
In Stock
VC50902450GHZ
Antenna For Zebra Symbol VC5090 or VC10 Vehicle Mounted Computer

View Details
MD24-12 2.4 GHz Mini Directional Antenna for Bluetooth / WiFi / WLAN (HG2410DP)
In Stock
MD24-12
MD24-12 2.4 GHz Mini Directional Antenna for Bluetooth / WiFi / WLAN (HG2410DP)

View Details

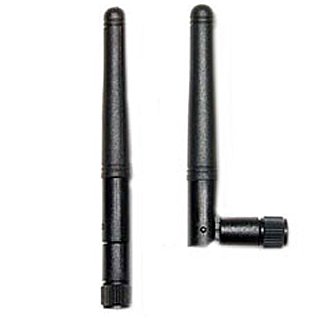

MAF94028: 4 Inch Omni Dipole Antenna for 2.4 GHz Wi-Fi with Elbow. RPSMA. (A24-HASM-450)
In Stock
MAF94028
MAF94028: 4 Inch Omni Dipole Antenna for 2.4 GHz Wi-Fi with Elbow. RPSMA. (A24-HASM-450)
View Details

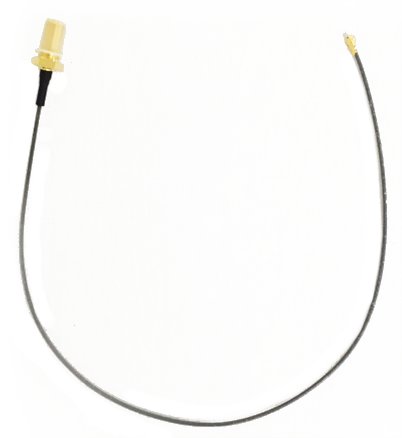

***WILL BE OBSOLETED AFTER ALL STOCK IS DEPLETED***1.13 mm Cable Assembly - RP-SMA-F bulk head and u.FL/IPEX/MHF Connectors - 11 inches
MAF93021
***WILL BE OBSOLETED AFTER ALL STOCK IS DEPLETED***1.13 mm Cable Assembly - RP-SMA-F bulk head and u.FL/IPEX/MHF Connectors - 11 inches
View Details

Specifications

SKU AN2030
Manufacturer Part Number AN2030
Manufacturer Zebra
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2.4 - 2.5 GHz
Gain 2 dBi
Working Frequency 2 4.9 to 5.875 GHz
Gain 2 3.6 dBi max
Antenna Style Blade/Stubby Antennas
Polarity Vertical
Bands Multi
Directional or Omni Omnidirectional
Impedance 50 Ohms
VSWR: < X: 1 2:01
Height/Length (mm) 95.9 mm
Width (inches) 3.78 inches
Thickness/Diameter (inches) 0.366 inches
Thickness/Diameter (mm) 9.3 mm
Weight (lbs) 0.25
Mount Style RP SMA Connector with 90 degree elbow
Connector Type Connector - Bottom
Connector 1 RP SMA-Male
Product Condition New
