A6034S-71002 15x15 inch Circularly Polarized SlimLine RFID Antenna - ETSI
A6034S-71002
Shipping calculated at checkout.
A6034S-71002 15x15 inch Circularly Polarized SlimLine RFID Antenna - ETSI
More InfoSpecifications Reviews

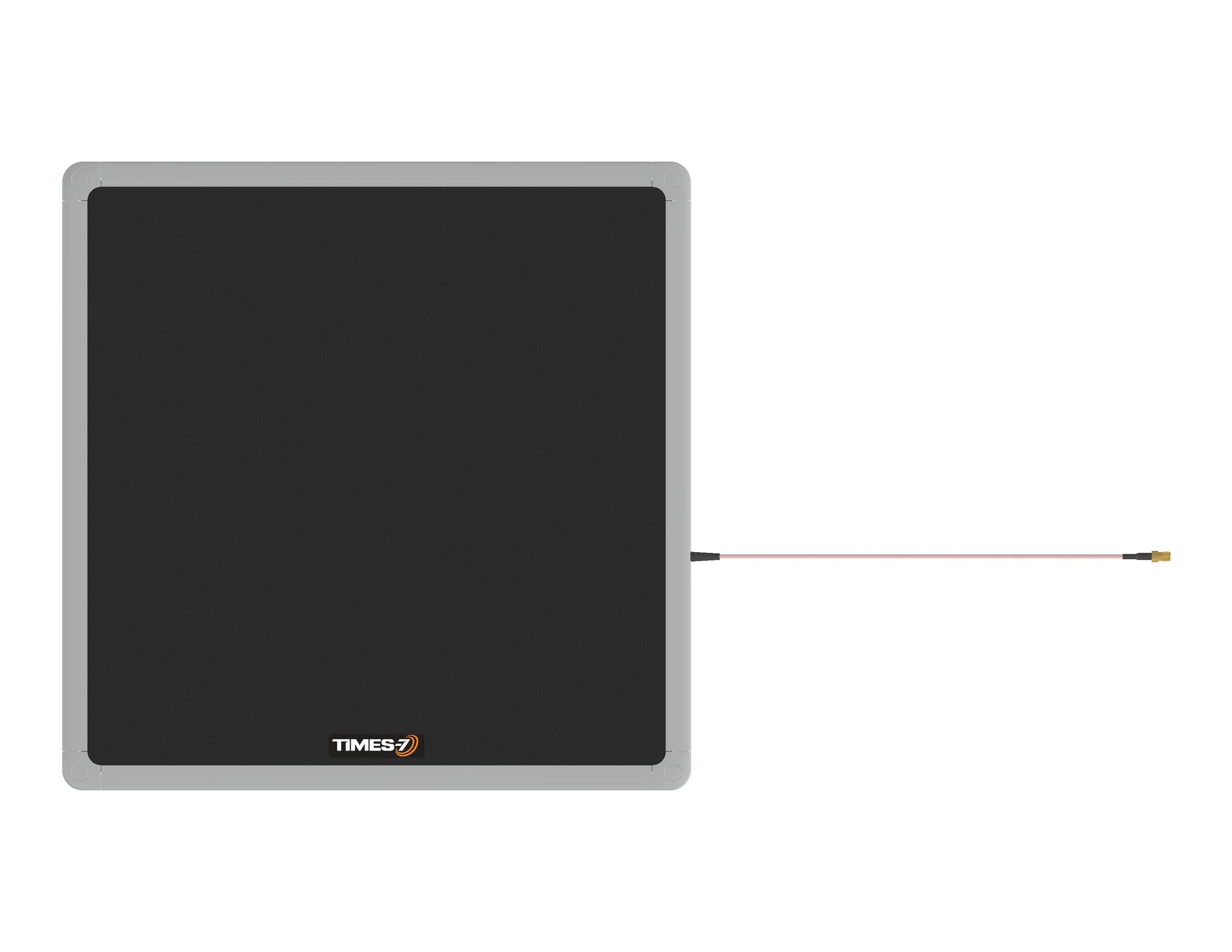

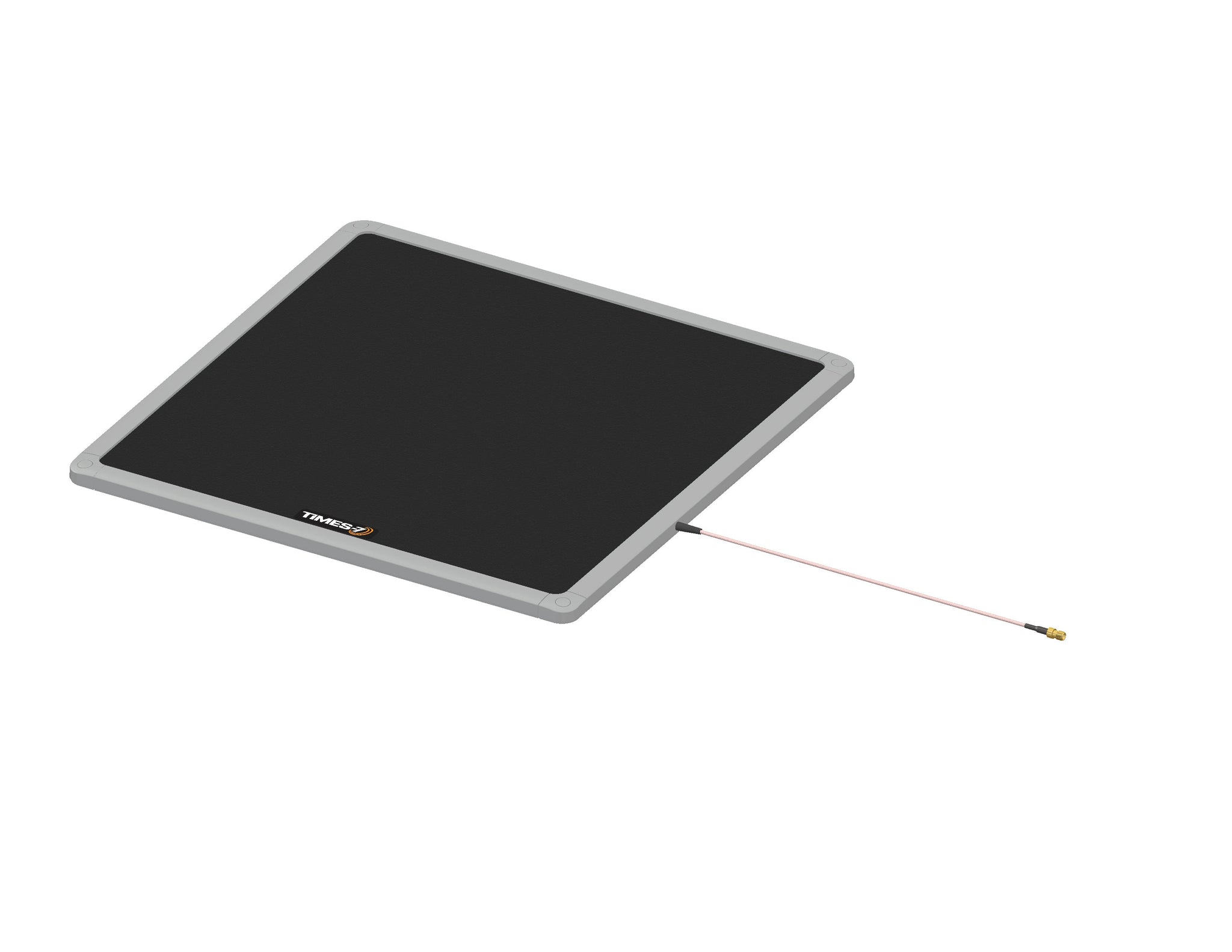

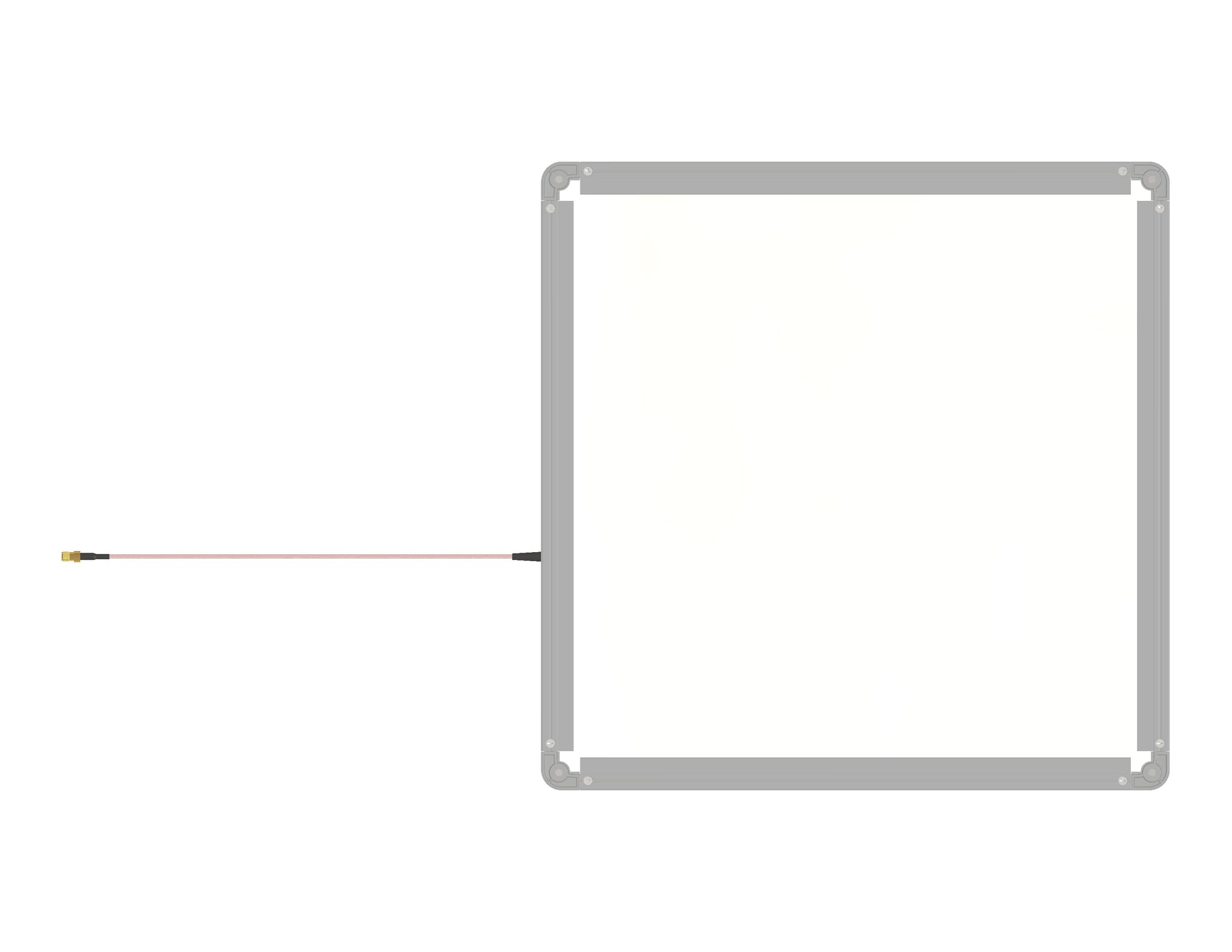

The A6034S-71002 is a Slim Line Circularly Polarized RFID Antenna operating in the ETSI range 864-869 Mhz. It offers 9 dBic gain in a square, mid-size, low profile package: 15 x 15 x 0.5 inch, and includes a 12 inch Pigtail with SMA-Female Connector.
More Information
Specifications
| SKU | A6034S71002 |
|---|---|
| Manufacturer Part Number | A6034S-71002 |
| Manufacturer | Times-7 |
| Working Frequency | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 65 |
| Polarity | Circular |
| Gain | 9 |
| Horizontal/Azimuth Beamwidth | 50 |
| Vertical/Elevation Beamwidth | 50 |
| Connector Type | Cable - Side Entry |
| Connector 1 | SMA-Female |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 305 |
| Height/Length (inches) | 15.5 |
| Height/Length (mm) | 394 |
| Operating Temp (celsius) | -30 to +70 |

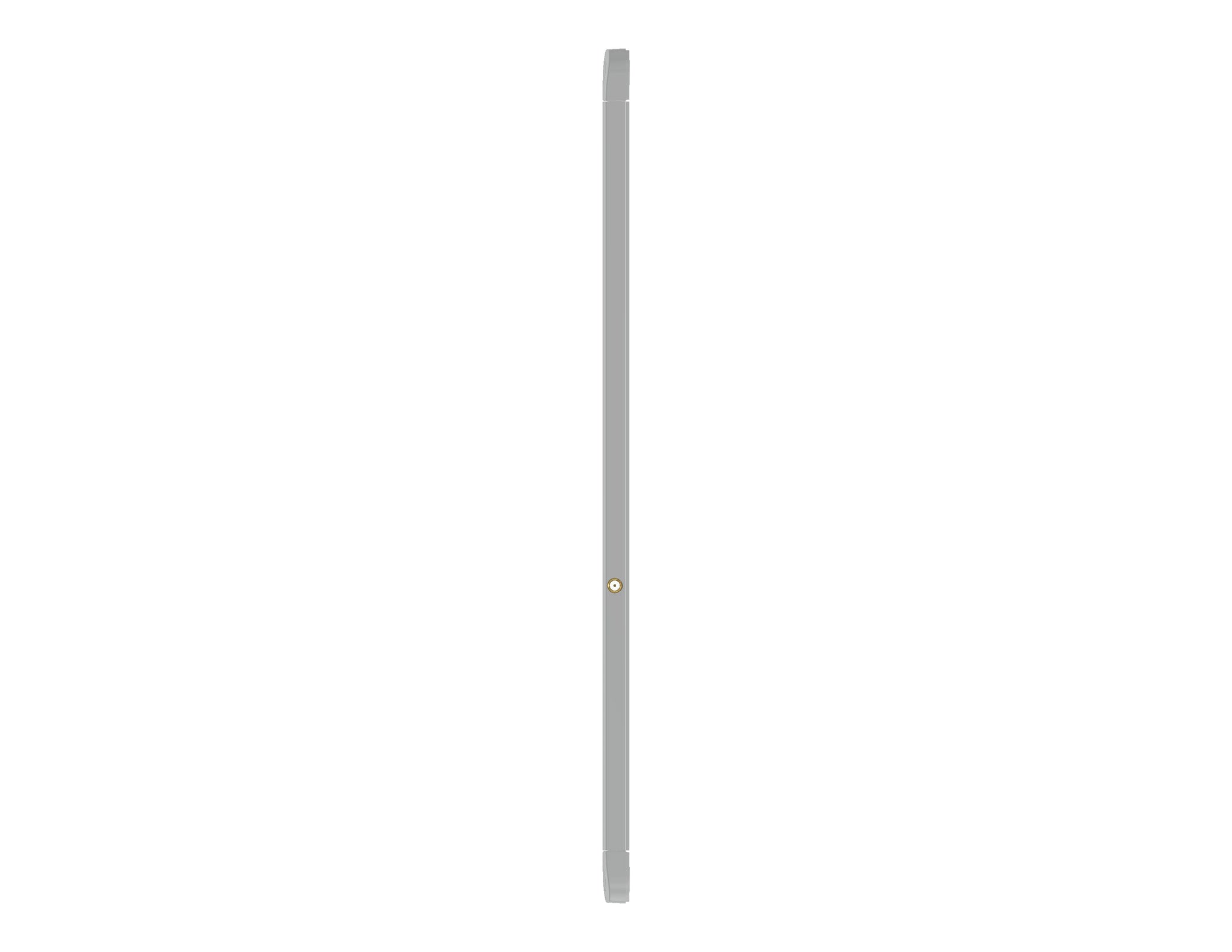

| Thickness/Diameter (inches) | 0.5 |
| Thickness/Diameter (mm) | 12 |
| Width (inches) | 15.5 |
| Width (mm) | 394 |
| Weight (lbs) | 3.8 |
| Weight (grams) | 1750 |
| Material | Kydex |

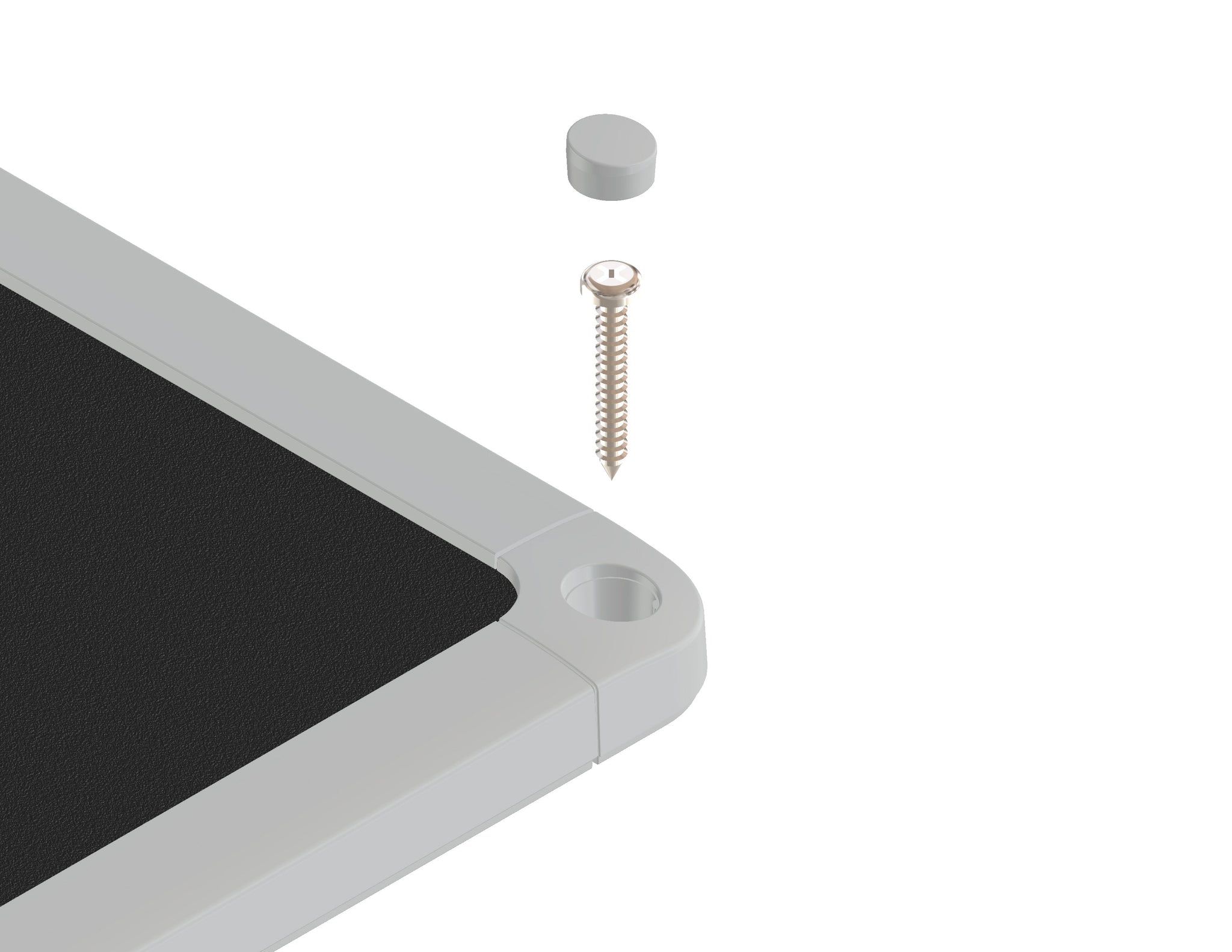

| Mount Style | Flush |
| Product Condition | New |
