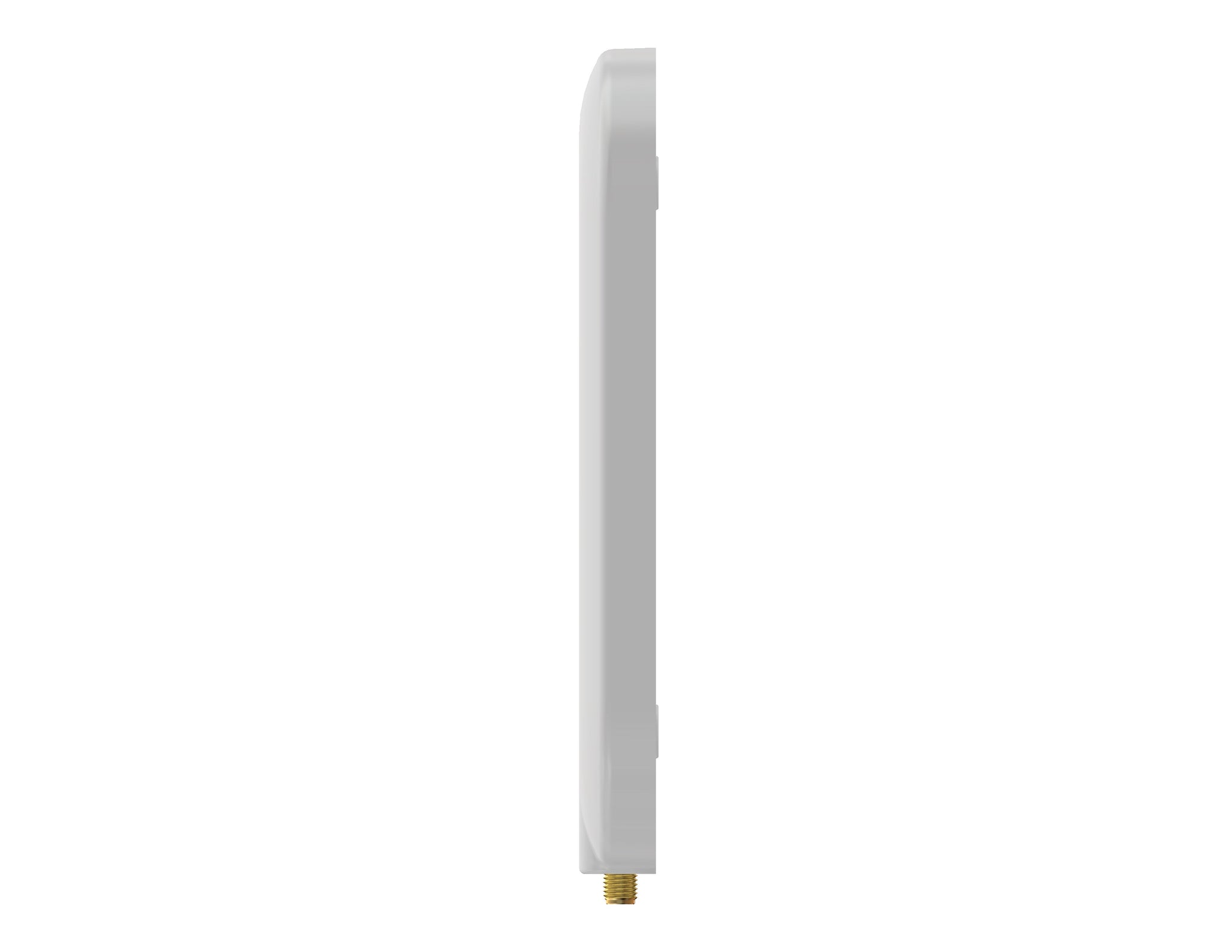

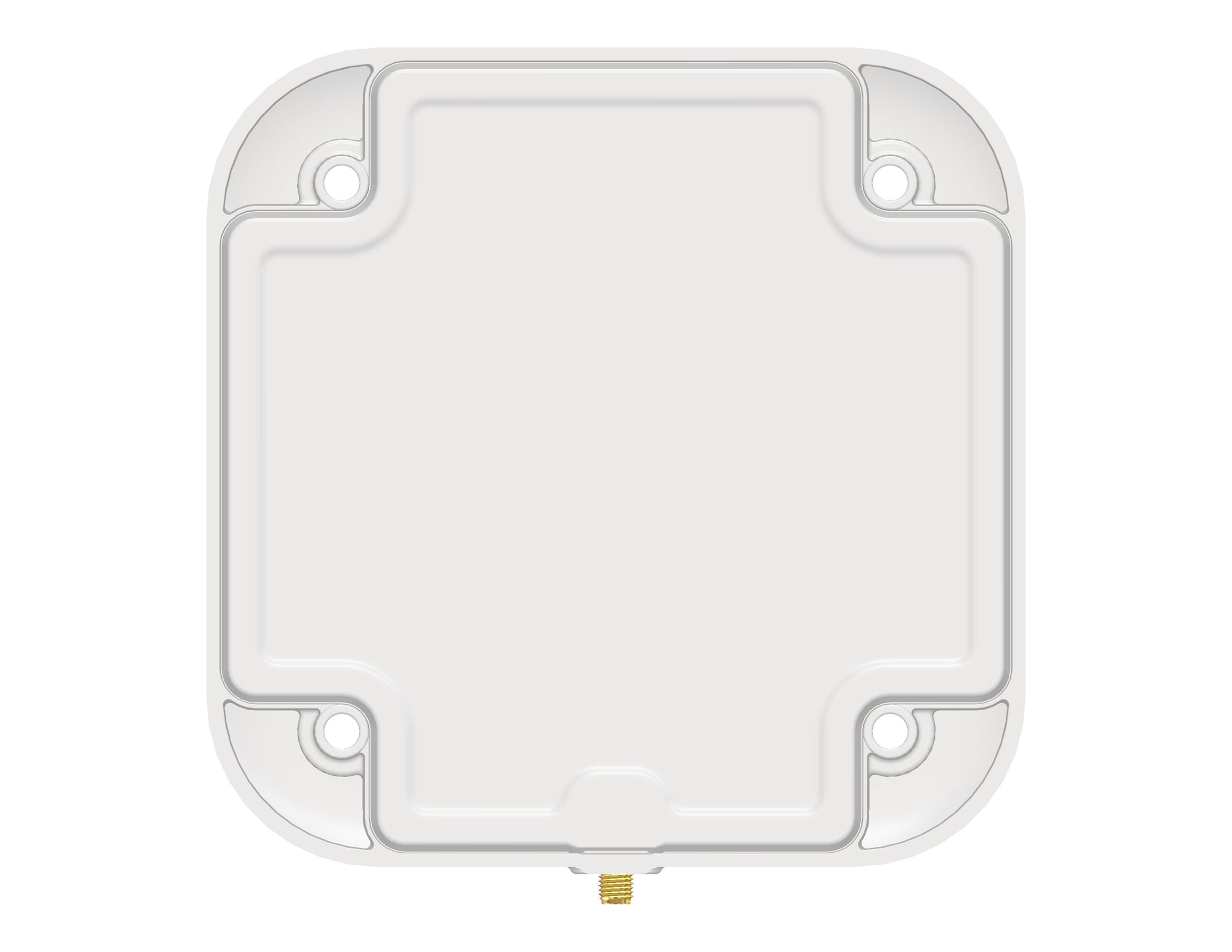

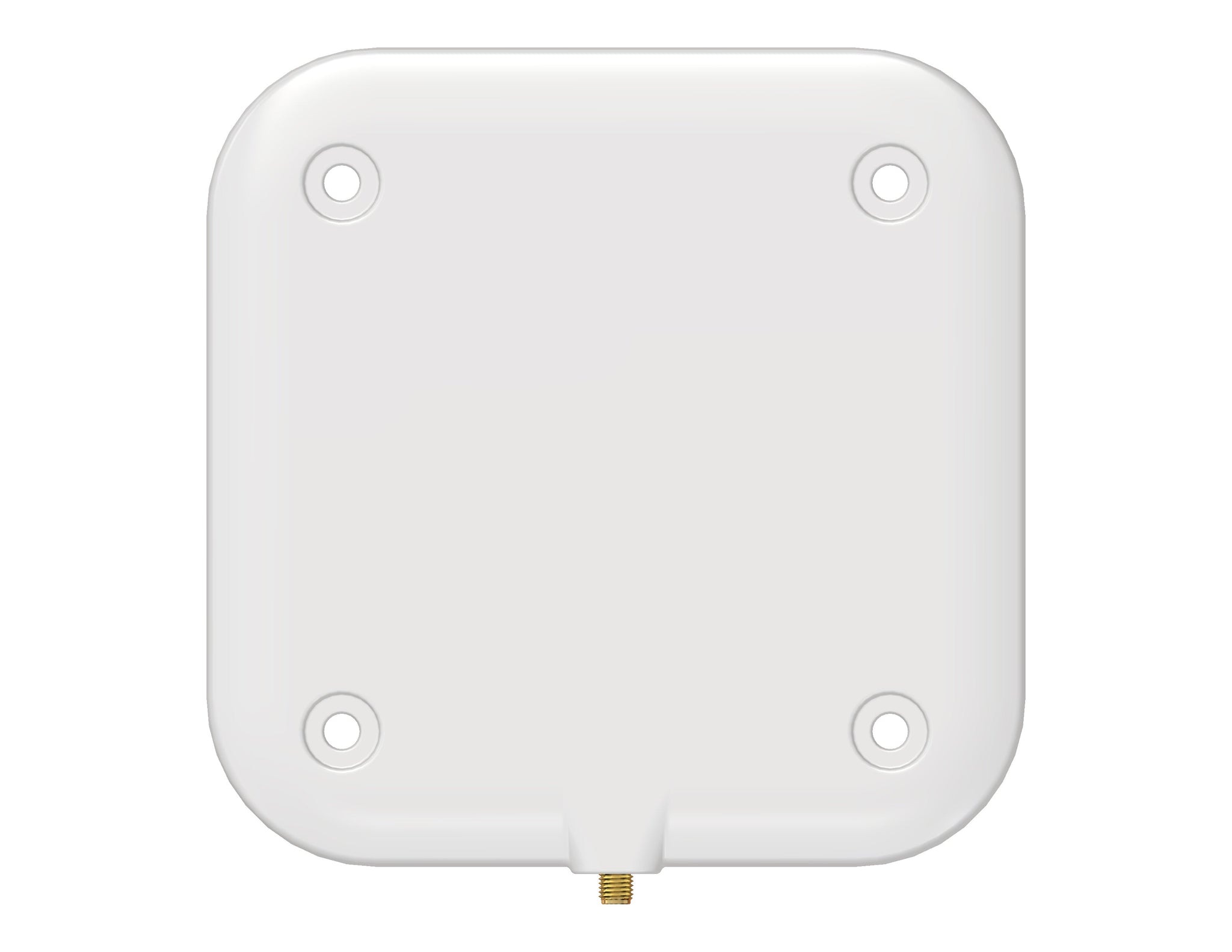

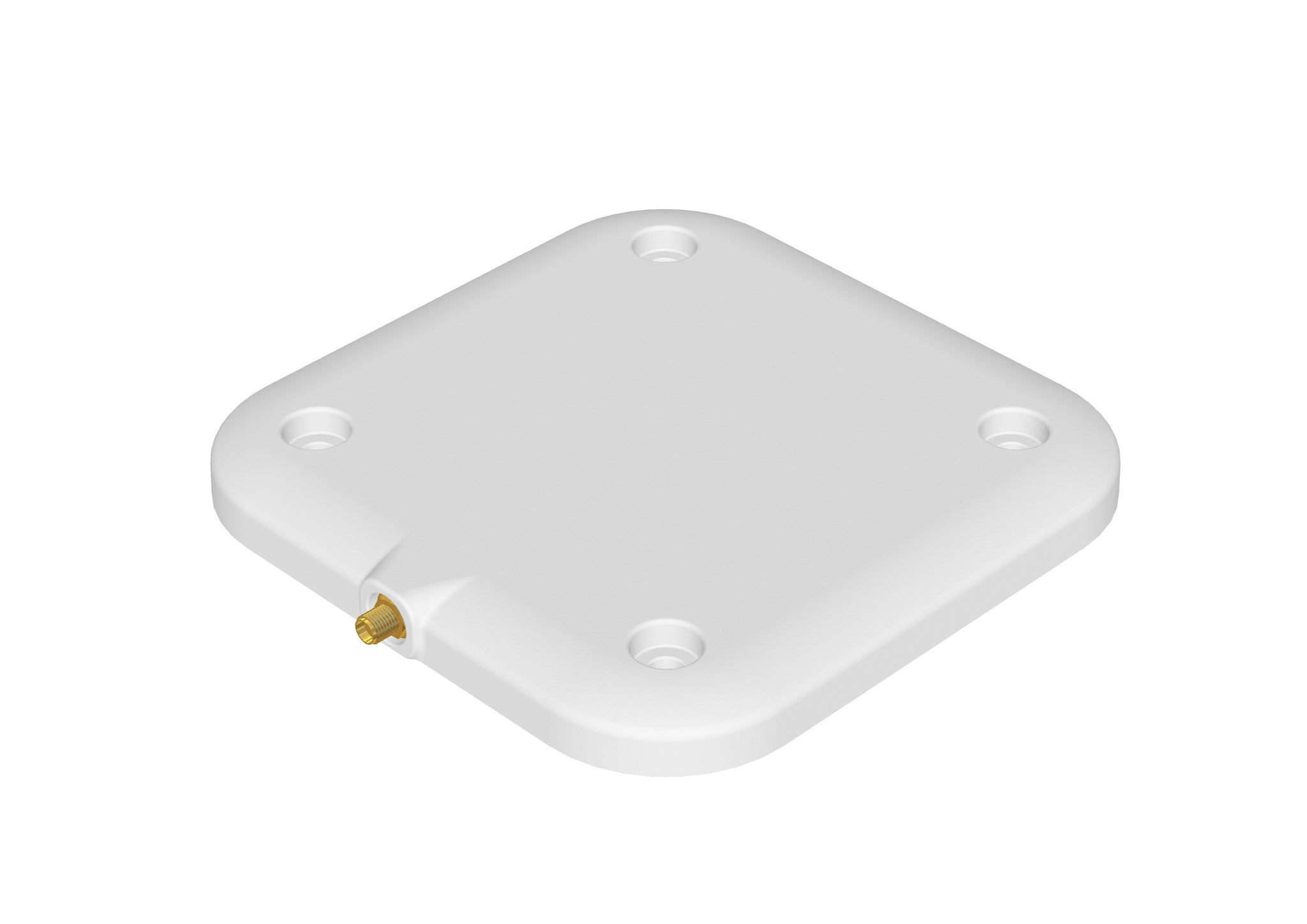

A5020-72057: A5020 NearField SlimLine RAIN (UHF) RFID NF ANTENNA 865-928 MHz
A5020-72057
Shipping calculated at checkout.
A5020-72057: A5020 NearField SlimLine RAIN (UHF) RFID NF ANTENNA 865-928 MHz
More InfoDocumentsSpecifications ReviewsThe A5020 NearField antenna offers an extremely close read range of only up to 10 cm / 4” from the antenna’s surface suitable for tap or touch applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors and allows both flush and VESA mounting. With an IP68 rated all-plastic housing enclosure and built to Times-7’s high standard for quality and robustness, the A5020 NearField antenna thrives in any environment.
More Information
Specifications
| SKU | A502072057 |
|---|---|
| Manufacturer Part Number | A5020-72057 |
| Manufacturer | Times-7 |
| Working Frequency | 865-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | IP68 |
| Polarity | Right Hand Circular |
| Gain | 5.5 dBiC |
| Connector 1 | SMA-Female |
| Height/Length (inches) | 5.9 |
| Height/Length (mm) | 150 |
| Operating Temp (celsius) | -30° to +65°C |
| Thickness/Diameter (inches) | 0.55 |
| Thickness/Diameter (mm) | 14 |
| Width (inches) | 5.9 |
| Width (mm) | 150 |
| Weight (lbs) | 0.55 lbs |
| Material | UV-Resistant ABS |
| Mount Style | Flush mount |
| Product Condition | New |
