7 in 1 "Brick" antenna 4x 5G, 2x WiFi & 1x GPS/GNSS, 17 ft cables for Router R980, R1900, IBR1700 | R2BDM-G452W-17K-S4S2R-B

  • $390.00
    Unit price per

R2BDM-G452W-17K-S4S2R-B


+ -
272 Can ship immediately
Lead time for qty above 272:  Ships in 14-16 Weeks

Shipping calculated at checkout.

7 in 1 "Brick" antenna 4x 5G, 2x WiFi & 1x GPS/GNSS, 17 ft cables for Router R980, R1900, IBR1700 | R2BDM-G452W-17K-S4S2R-B

More InfoDocumentsSpecifications Reviews

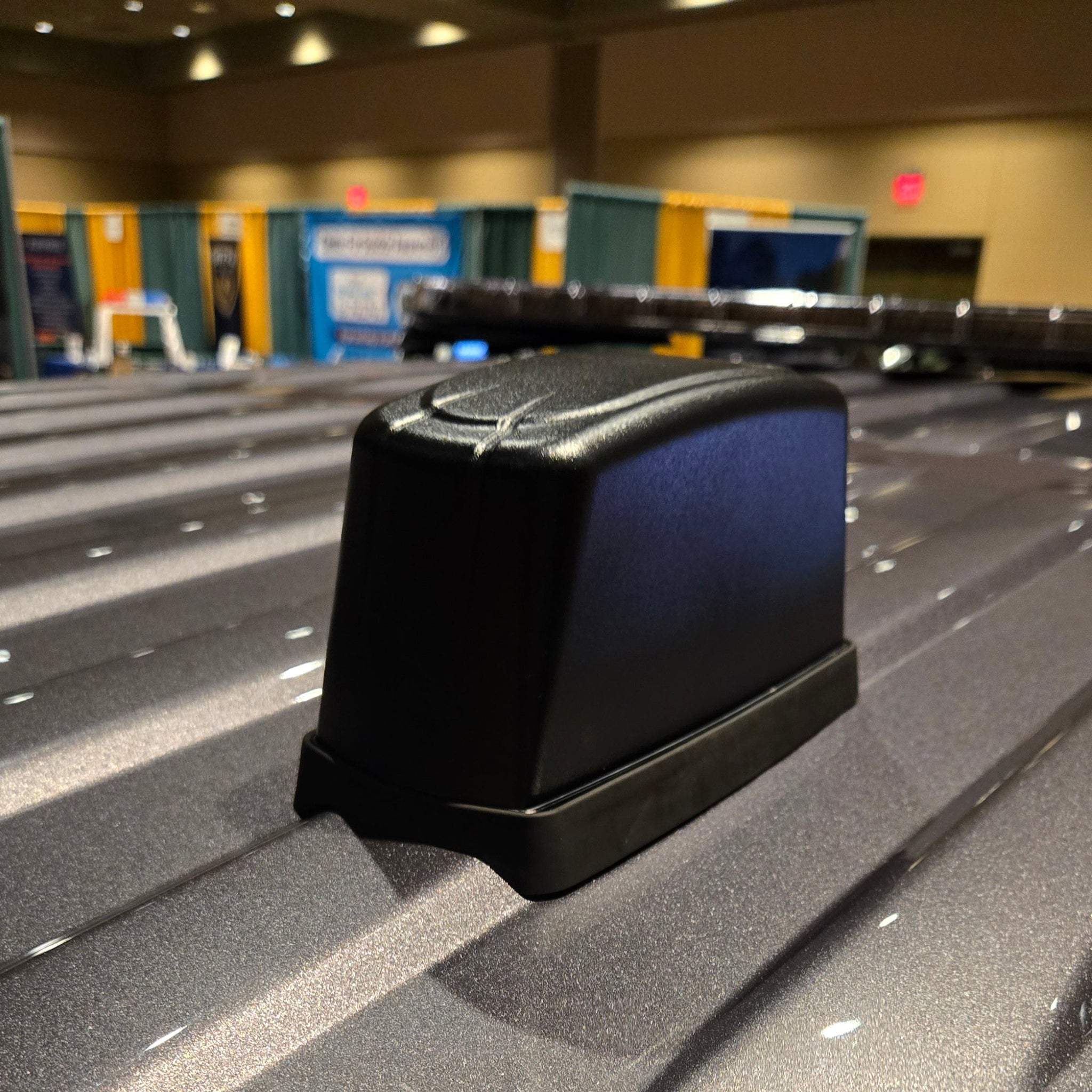

This RFMAX 7-in-1 "Brick" Version 2 Antenna, R2BDM-G452W-17K-S4S2R-B, is a wideband 5G-FR1, WiFi-6E low profile, 17 Ft Cable Kit direct mount antenna. In a rugged, IP67/IP69, attractive low profile radome measuring 8 in. long & 3.5 in. wide and only 3.78 inches tall this antenna is a perfect solution for transit applications. With the capability of a 7-in-1 antenna solution this antenna enables maximization of spectral efficiency and minimizing installation costs by reducing the need for additional antennas.

Compatible with Ericsson/Cradlepoint Modem / Gateway / Router R980, R1900, IBR1700,  IBR900, Peplink UBR Plus, & MB series Radios etc.

This antenna is designed for cellular operation from 600-7125 MHz and meets all 5G specs, as well as 4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna includes 4x 5G/4G/LTE, 2x WiFi-6E, and 1x GNSS.

This antenna is directly terminated with 2 foot cables and includes seven 15-foot cable assemblies packaged with antenna.

USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR?   ADD THIS GASKET



More Information

The RFMAX R2BDM-G452W-17K-S4S2R-B, the next-generation 7-in-1 "Brick" Version 2 Antenna, specifically engineered to deliver superior performance across a wide range of frequencies, including 5G-FR1, WiFi-6E, and GNSS. Designed for rugged environments and optimized for modern connectivity needs, this low-profile antenna is perfect for transit, fleet management, IoT, navigation, and tracking applications.



Key Features:

  • Wideband Connectivity: Supports 5G/4G/LTE frequencies (617-7125 MHz), ensuring compatibility with all major North American carriers like AT&T, Verizon, Sprint, and T-Mobile.
  • 7-in-1 Functionality: Includes:
       - 4x 5G/4G/LTE ports for reliable mobile connectivity.
       - 2x WiFi-6E ports operating across 2400-2500 MHz and 4900-7125 MHz bands for high-speed, low-latency wireless performance.
       - 1x GNSS port with an active L1 antenna and a low-noise amplifier (30 dB) for precise location tracking.
  • Compact Design: Encased in a durable IP67/IP69-rated radome, this antenna measures only 8.05 x 3.57 x 3.78 inches and weighs 1.08 lbs, making it ideal for harsh environments.
  • Ease of Installation: Features a direct stud mount with 2-ft RG-316 cables terminated with SMA Male and RP-SMA Male connectors for seamless integration. Antenna includes 15 foot cable kit for a total of 17 Feet of cable.
  • High Efficiency & Isolation: Delivers up to 6.4 dBi gain for LTE bands and 7.5 dBi gain for WiFi, ensuring robust and interference-free communication.
  • Includes Cable Kit. Antenna terminated with 2 foot cables, and packaged with seven 15-Foot cable assemblies.


Applications:

  • Compatible with Cradlepoint routers and gateways (R1900, IBR1700, IBR900, R980), Peplink BR & MB series radios, and more.
    Ideal for use in transit systems, fleet management, IoT solutions, and mobile communications.

Documents


Specifications

SKU R2BDMG452W17KS4S2RB
Manufacturer Part Number R2BDM-G452W-17K-S4S2R-B
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 617-960 MHz (Cell)
Gain 2.0 dBi
Working Frequency 2 1710-7125 MHz (Cell)
Gain 2 6.4 dBi
Working Frequency 3 2400-2500 MHz (WiFi)
Gain 3 7.5 dBi
Working Frequency 4 4900-7125 MHz (WiFi)
Gain 4 5.3 dBi
Working Frequency 5 1561-1602 MHz GPS/GNSS/Beidou
Gain 5 30 ± 20 dB (LNA Gain)
Antenna Style "Brick" Multi-Element Antenna
Polarity Linear
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 <3:1 (cell)/<2.5:1 (WiFi)
Plenum/Fire Rating UV Stable, UL94 Radome
No Of Elements 7
Height/Length (inches) 8.05
Height/Length (mm) 204.4
Width (inches) 3.57
Width (mm) 90.6
Thickness/Diameter (inches) 3.78
Thickness/Diameter (mm) 96.01
Weight (lbs) 8
Material UV Stable, UL94 Radome
Operating Temp (celsius) -40 to +85 C
Mount Style Direct Mount
Color Black
Number of Cables 7
Cable Length (inches) 204
Connector 1 SMA-Male
Connector 2 RP-SMA Male
IP Rating IP67
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
