4G/5G, 5-in-1 with 17 ft. cables and SMA Male on all lines RBDM-G55WW-17-SSSSS-B
RBDM-G55WW-17-SSSSS-B
Shipping calculated at checkout.
4G/5G, 5-in-1 with 17 ft. cables and SMA Male on all lines RBDM-G55WW-17-SSSSS-B

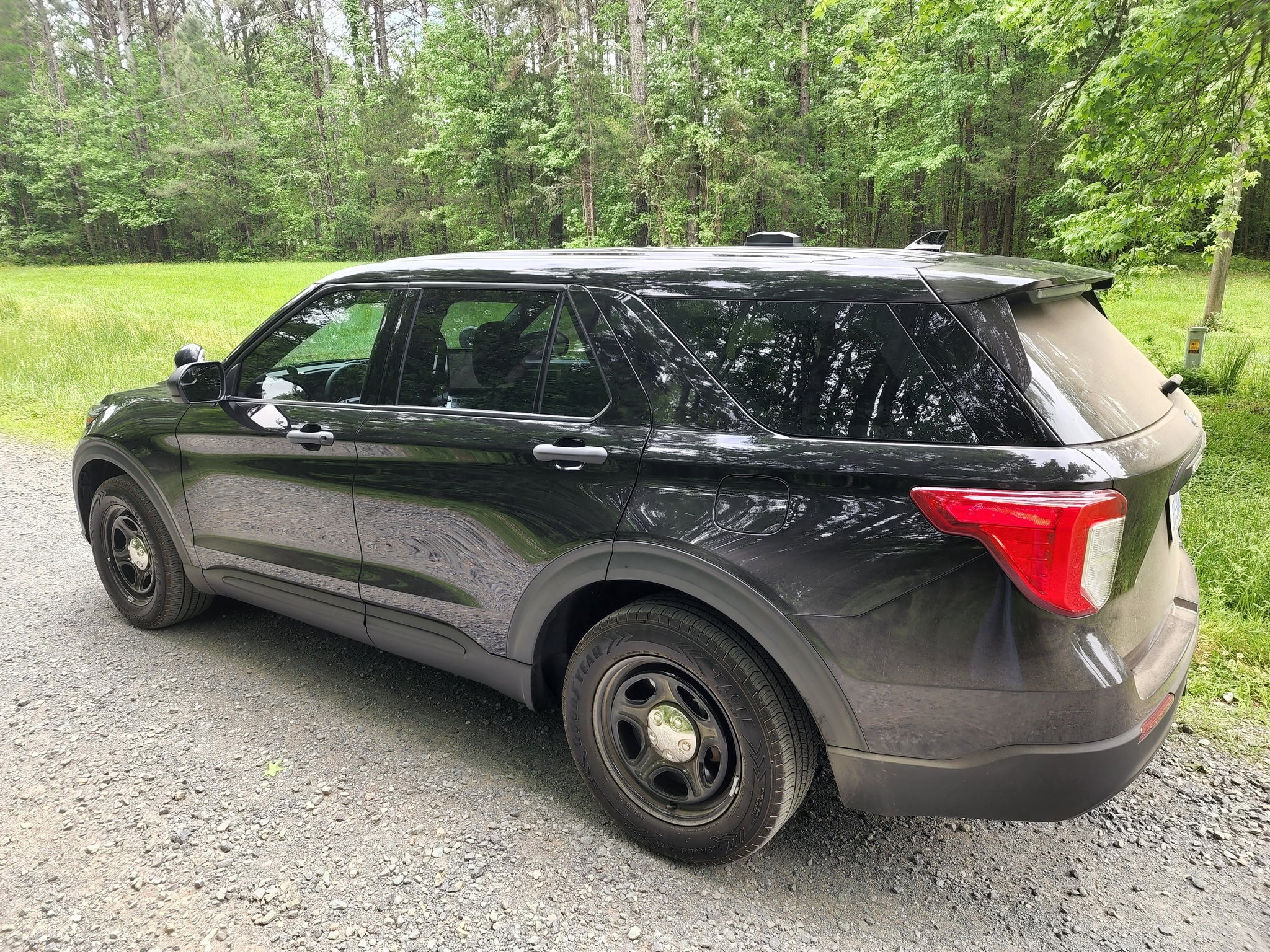

More InfoDocumentsSpecifications ReviewsUSING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET

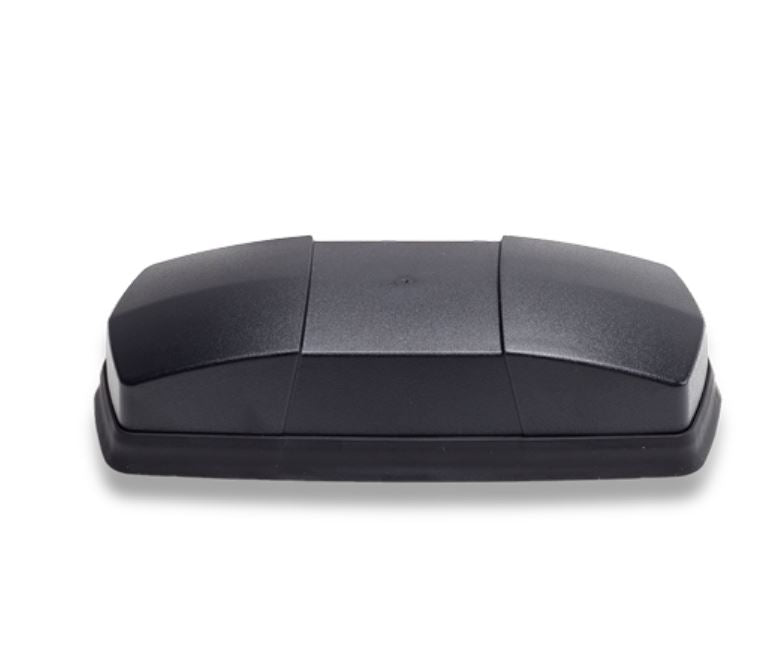

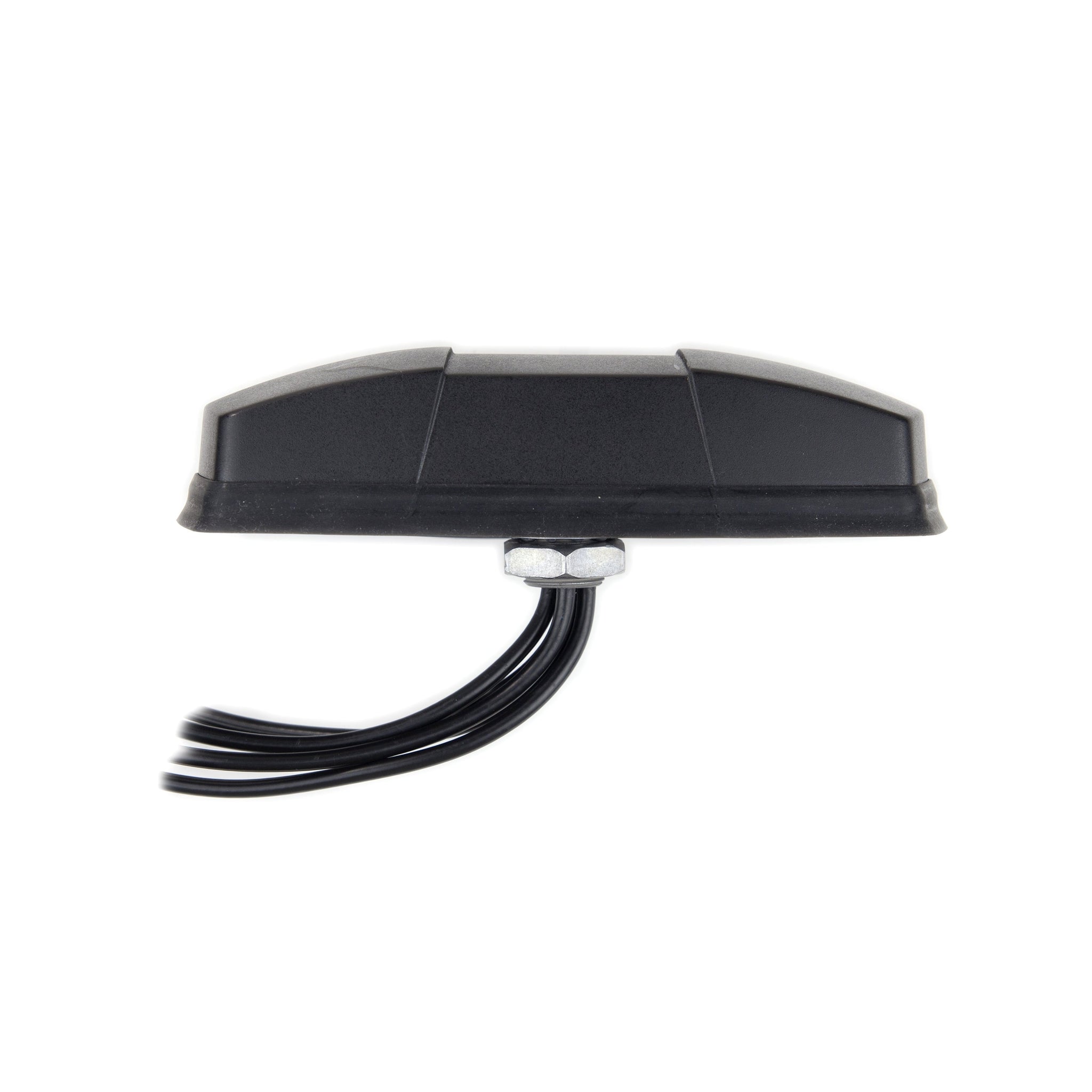

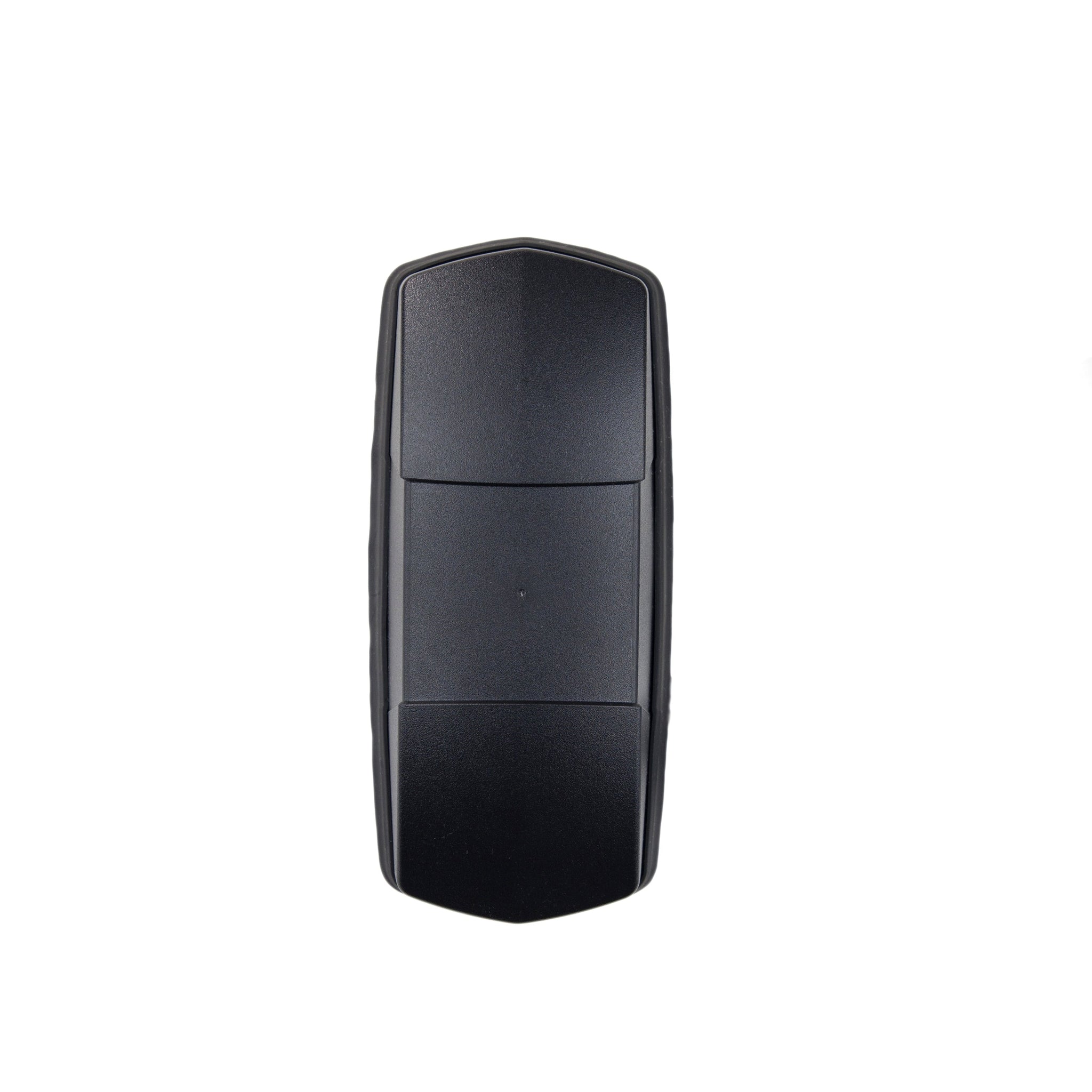

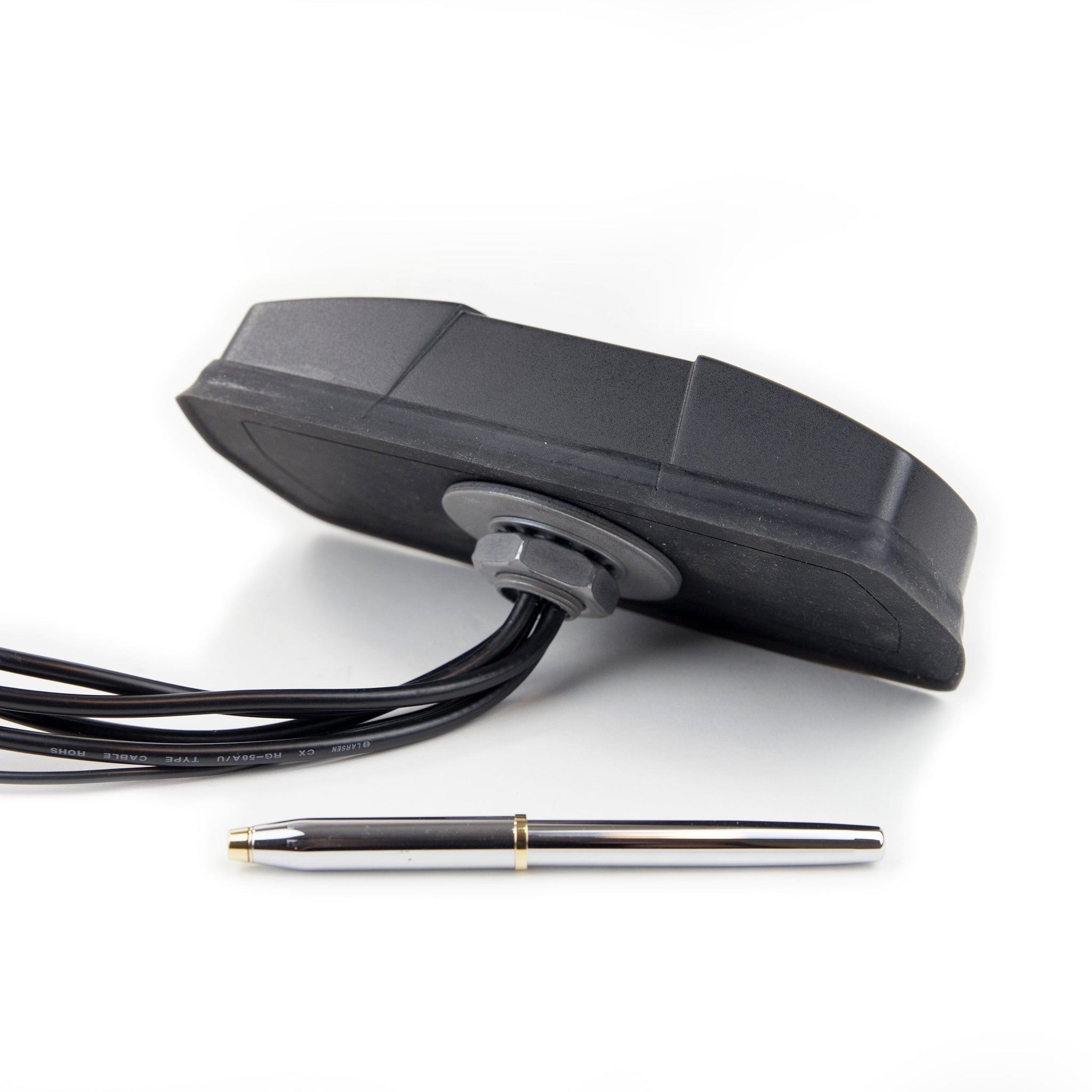

The RFMAX "Brick" antenna # RBDM-G55WW-17-SSSRR-B is a BLACK, 5-in-1 antenna with 1 x GPS + 2 x Cellular, 2 x WiFi, SMA Male on all lines
More Information

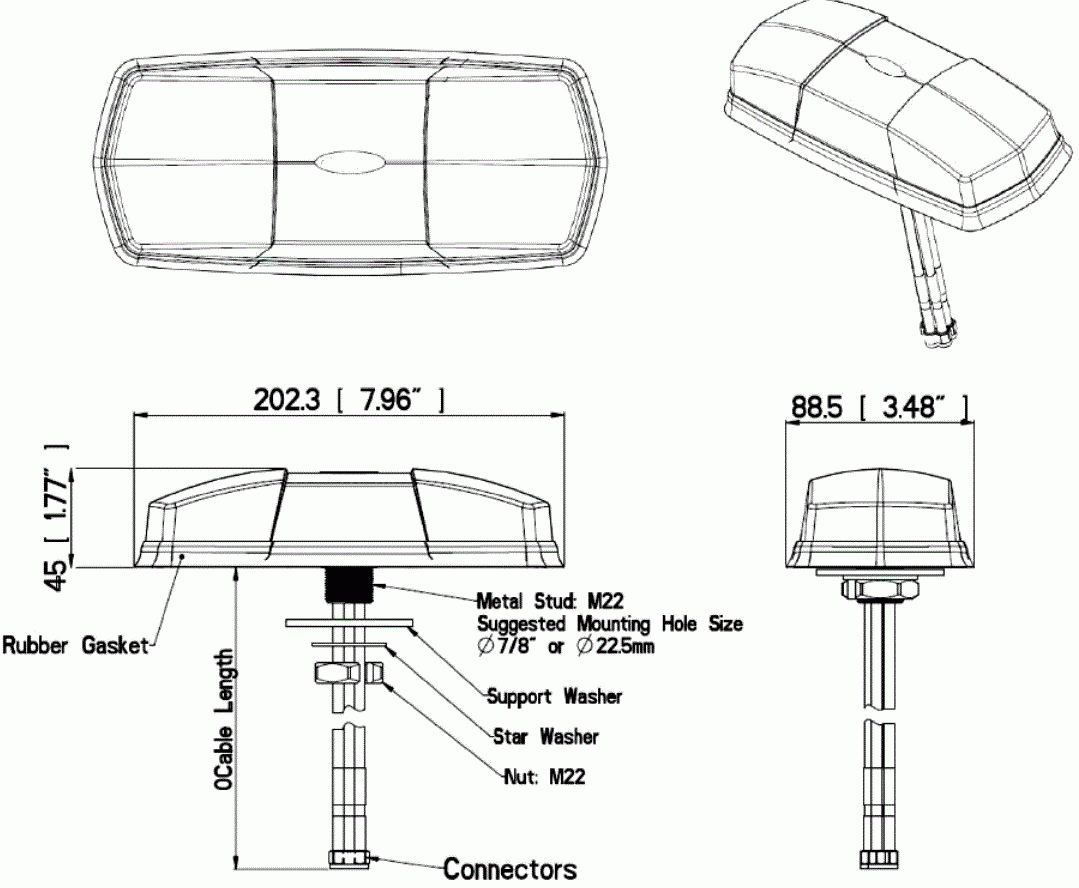

- RFMAX "Brick" Antenna Size: 7.9 x 3.4 x 1.8 Inches
- Excellent performance at 4G/LTE and 5G (Band 71)
- Elements: GPS/GNSS, MiMo 4G/5G Cellular, MiMo Wi-Fi, SMA Male connectors
- High Gain at all frequencies for maximum connection speeds
- Vehicular Rated for Mobile (IP67 rated)

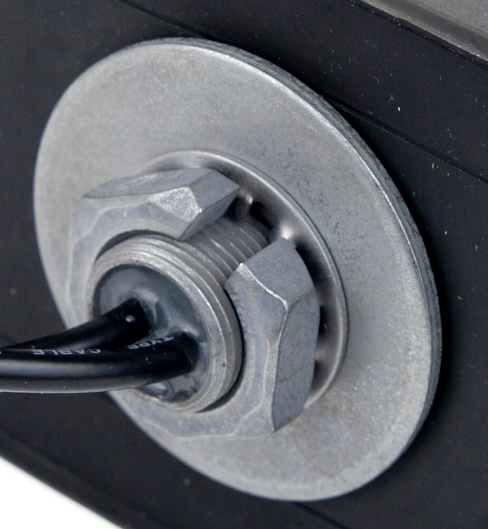

- Easy to install (just one, 7/8" hole)
Documents
We Also Recommend
RBDM-G55WW-17-SSSRR-W
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6), White RBDM-G55WW-17-SSSRR-W
$291.00
$291.00
View Details
RBC150/450/758
Tri-Band Antenna For Motorola APX8500 (AN000131A01) & Harris All band P25 Radio | RBC150/450/758
$72.45
$72.45
View Details
R2WA-G55WW-10-SSSRR
5 in 1, No Drilling- Adhesive Mount Antenna, GPS + 2 x 5G/4G/LTE + 2 x Dual WiFi for Dashboard/Windshield. 10 ft Cable. | R2WA-G55WW-10-SSSRR
$207.10
$207.10
View Details
RSF-DB-G4W-TTT
3 in 1 Antenna. GPS + 3G/4G/LTE + WiFi with TNC Male Connectors | RSF-DB-G4W-TTT
$145.00
$145.00
View Details
R2G5A-10SSM
GPS & 5G/4G 2-in-1 Antenna for Dashboard/Windshield 10 ft Cables & SMA. Dual-Pass RF. Adhesive Mount. R2G5A-10SSM
$80.00
$80.00
View Details
Specifications
| SKU | RBDMG55WW17SSSSSB |
|---|---|
| Manufacturer Part Number | RBDM-G55WW-17-SSSSS-B |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 617-960 MHz |
| Gain | 3.3 dBi |
| Working Frequency 2 | 1710-6000 MHz |
| Gain 2 | 5.2 dBi |
| Working Frequency 3 | 2400-2500 MHz |
| Gain 3 | 5.4 dBi |
| Working Frequency 4 | 5150-5925 MHz |
| Gain 4 | 6.3 dBi |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS |
| Gain 5 | 30 dB LNA Gain |
| Antenna Style | "Brick" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | <2.2:1 (Cell) <2.0:1 (WiFi & GPS) |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| No Of Elements | 5 |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Weight (lbs) | 2 |
| Material | UV Stable, UL94 Radome |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct Mount |
| Color | Black |
| Number of Cables | 5 |
| Cable Length (inches) | 204 |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
