3-in-1 MiMo 5GNR/4G-LTE & GNSS Antenna for M2M, IoT, & Vehicular Applications. Includes 17 ft. Cables & SMA Connectors. R2SP-DB-G55-17-SSS-B
R2SP-DB-G55-17-SSS-B
Shipping calculated at checkout.
3-in-1 MiMo 5GNR/4G-LTE & GNSS Antenna for M2M, IoT, & Vehicular Applications. Includes 17 ft. Cables & SMA Connectors. R2SP-DB-G55-17-SSS-B
More InfoDocumentsSpecifications Reviews

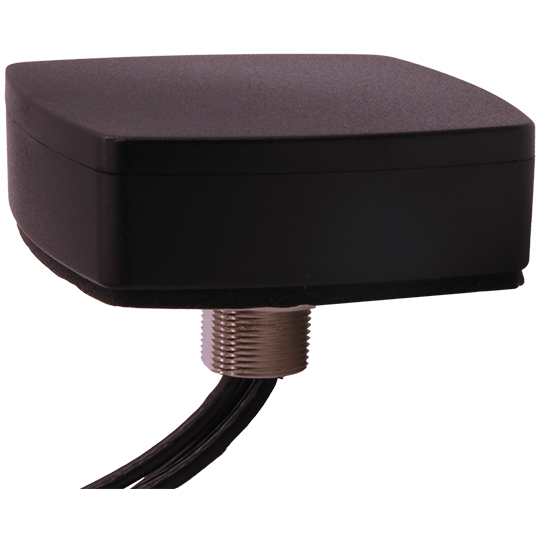

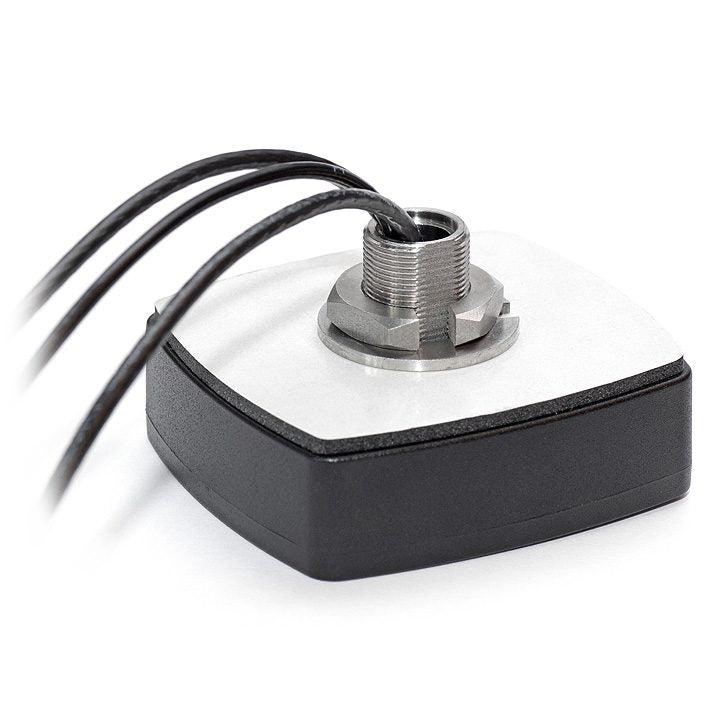

The RFMAX "R2SP" series antenna # R2SP-DB-G55-17-SSS-B is a compact, Low profile, direct-mount antenna designed for M2M machine-to-machine applications. The unit measures 3.15 x 2.91 inches, with a height of just 1 inch. This antenna was designed to exceed all 3G/4G/LTE/5G specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna is the perfect choice for NEMA enclosures, utility vehicles, or public safety vehicles,
More Information
Specifications
| SKU | R2SPDBG5517SSSB |
|---|---|
| Manufacturer Part Number | R2SP-DB-G55-17-SSS-B |
| Manufacturer | RFMAX |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Working Frequency | 617-960 MHz |
| Gain | 3.2 dBi |
| Working Frequency 2 | 1427-5690 MHz |
| Gain 2 | 5.0 dBi |
| Working Frequency 3 | 3300-5000 MHz |
| Gain 3 | 5.1 dBi |
| Working Frequency 4 | 5150-5925 MHz |
| Gain 4 | 4.7 dBi |
| Working Frequency 5 | 1575.42/1598-1606 MHz |
| Gain 5 | 28 dB @ 2.7V |
| Antenna Style | "Puck" Multi-Element Antenna |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 25W |
| VSWR: < X: 1 | <2:1 |
| Height/Length (inches) | 3.15 |
| Height/Length (mm) | 80 |
| Width (inches) | 2.91 |
| Width (mm) | 74 |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 25.6 |
| Weight (lbs) | 1 |
| Material | UV Stable ASA |
| Operating Temp (celsius) | -40 to +85 |
| Color | Black |
| Number of Cables | 3 |
| Connector 3 | SMA-Male |
| IP Rating | IP67, IP69 |
| OK for Outdoor Use | Outdoor |
| Ground Plane Required | No |
| Product Condition | New |
