Laird – Antenex Aluminum Yagi Antennas Are An Economical Choice for High Performance And Long Service Life. These Yagis Are Gamma Matched for Best Performance. Every antenna Is Covered By A Five-Year Factory Warranty.

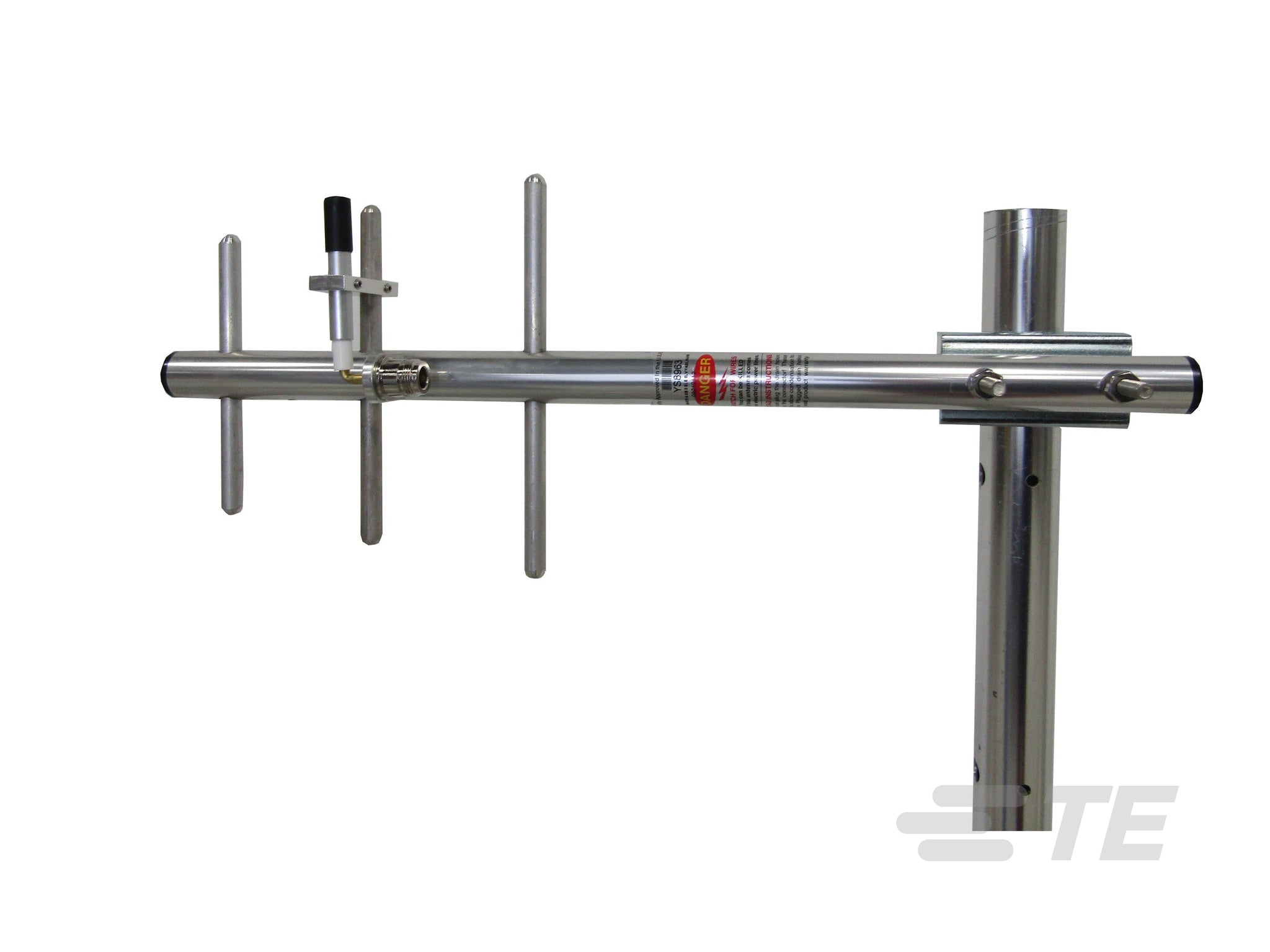

The YS4303 from Laird (formerly Antenex) is made from heavy duty aluminum, terminated with a fixed N-Female connector, and includes a basic mounting bracket kit.

FEATURES AND BENEFITS:

• Frequency: 430-450 MHz
• Number of elements: 3
• Gain: 9 dBi
• Fixed N-Female Connector
• Die Cast Mounting Bracket Included
• Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.
